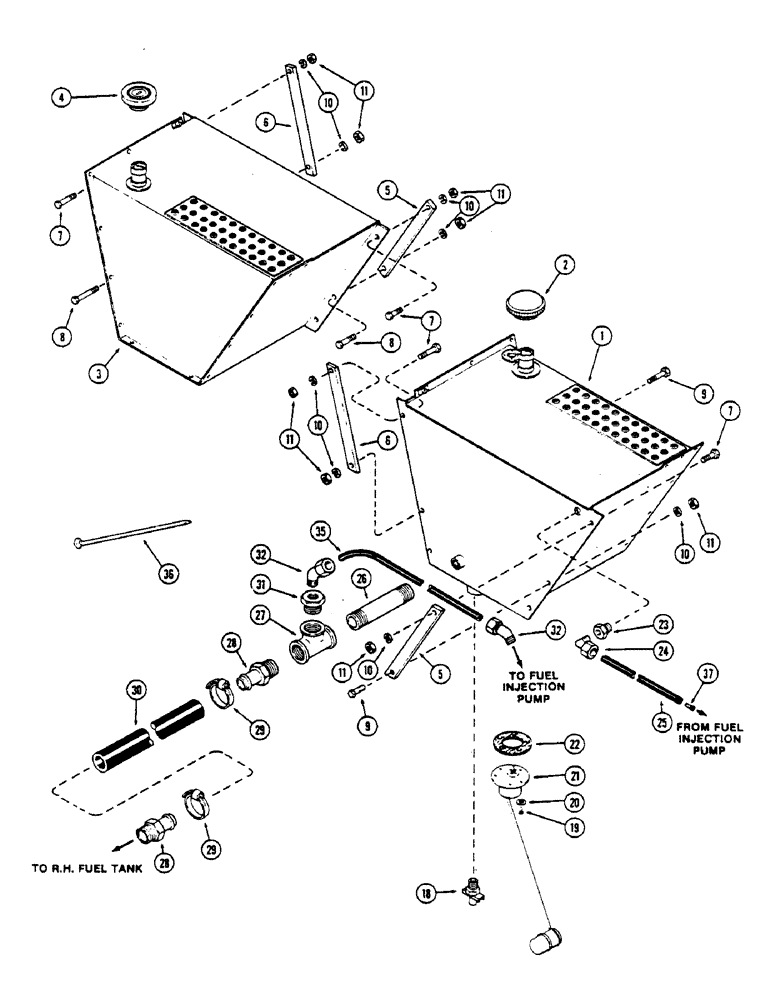

Запчасти Case IH 2670 (064) - FUEL TANKS (03) - FUEL SYSTEM

1

A141813

TANK

- fuel, L.H. (Replaces A76603)

1шт.

2

A51390

CAP

- fuel tank (Replaces A32119)

2шт.

3

A141814

TANK

- fuel, R.H. (Replaces A76606)

1шт.

4

A32120

CAP

- lock, fuel tank

2шт.

5

A75878

PLATE

SPACER - fuel tank, front

2шт.

6

A75879

SPACER - fuel tank, rear

2шт.

7

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

8

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

9

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

10

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

11

129-107

NUT,5/8"-11, G5

8шт.

18

217-107

VALVE

- drain, water trap

2шт.

19

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- (#10-32 x 7/16" round hd. mach.)

5шт.

20

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

21

A76604

FUEL GAUGE

SENDING UNIT - fuel (12 volt)

1шт.

22

A11822

GASKET

- fuel sending unit

1шт.

23

217-1012

ADAPTER,1/4" - 18 Male NPTF x 3/8" - 18 Female NPTF

CONNECTOR - reducer (3/8 to 1/4")

1шт.

24

222-5110

ELBOW,90 Degree, 7/16"-24 x 1/8" NPTF

- 90 degrees

1шт.

25

A67322

TUBE

- injector overflow to tank (1/4" O.D. x 71" lg.) (Replaces A138277)

1шт.

26

221-1246

NIPPLE, LUBE

NIPPLE - pipe (1 x 5-1/2")

1шт.

27

221-1426

FITTING

SLEEVE - flex tube (1/4" tube O.D.)

1шт.

28

217-156

FITTING,1" Hose Barb x 1" Male NPTF

BARB - hose, straight

2шт.

29

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4" (30.16 to 44.45 MM)

2шт.

30

A75881

SLEEVE

HOSE -, Serial Range: tank-tank

1шт.

31

221-62

REDUCER,Hex, 1" x 1/4" NPT

BUSHING - reducer (1" to 1/4")

1шт.

32

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW ASSY. - 45 degrees

2шт.

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

35

A67323

TUBE

- tank to injector (Replaces A62320)

1шт.

36

A160890

STRAP

- nylon (Replaces L11541)

2шт.

37

A141160

INSERT

- overflow tube to check valve

2шт.
