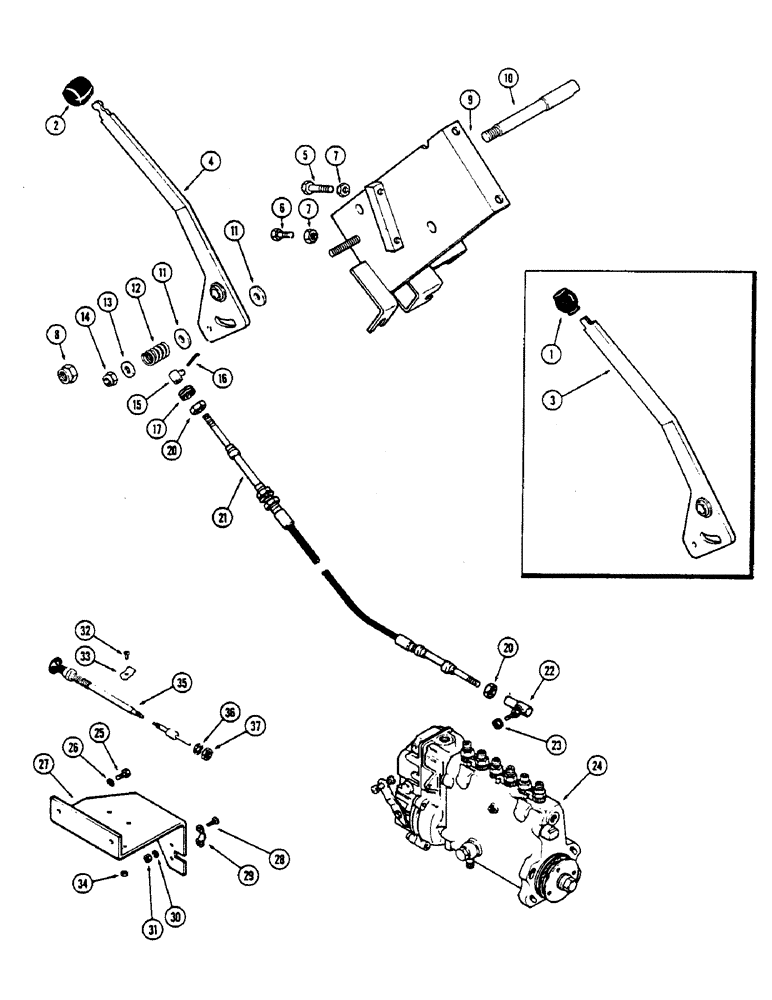

Запчасти Case IH 2670 (062) - THROTTLE CONTROLS AND SHUT-OFF CABLE (03) - FUEL SYSTEM

1

A65699

KNOB

- throttle lever (Plastic) (Order A137806)

1шт.

2

A137806

KNOB

- throttle lever (Rubber)

1шт.

3

A75381

LEVER

- throttle (With threaded top) (Order Ref. 2 and 4)

1шт.

4

A137859

LEVER

- throttle (Replaces A75381)

1шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex, grade 5

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

7

25-146

JAM NUT,Jam, 3/8"-16, G5

- (3/8" N.C. hex jam)

2шт.

8

131-10

NUT,1/2"-13, GB

NUT, LOCK, , Esna 1/2"-13, GB

1шт.

9

A75366

BRACKET - cockpit

1шт.

10

A75377

SHAFT

- control levers

1шт.

11

A61069

DISC

- friction, throttle lever

2шт.

12

A26546

SPRING

- friction disc, 1-1/4" free length (31.75 MM)

1шт.

13

195-25

WASHER,3/8"

- (13/32 x 13/16 x 1/16")

1шт.

14

131-52

NUT,3/8"-16, GC

NUT - (3/8" -16 ESNA lock)

1шт.

15

A75386

LINKAGE

PIVOT - throttle linkage

1шт.

16

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

17

A75994

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

- cable

1шт.

20

129-37

NUT,#10-32

2шт.

21

A145334

CABLE

- throttle control (Replaces A136618)

1шт.

22

A76747

BALL JOINT,#10 -32 x 7/8" L

PIVOT - throttle cable

1шт.

23

193-1001

NUT,Keps, w/LW, 1/4"-28

- (1/4" - Keps)

1шт.

24

REF

INSTRUCTION

PUMP ASSY. - fuel injection (See page 44)

1шт.

25

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Bracket to eng. block Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

27

A77212

BRACKET - anchor, throttle and stop cables

1шт.

28

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- #10-24 x 3/4" round hd. match., Serial Range: clamp-plate

2шт.

29

A75815

CLAMP

- throttle cable

1шт.

30

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

31

129-17

NUT,Hex, #10 - 24

NUT - ( hex) #10-24

2шт.

32

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- (#10-24 x 3/4" round hd. mach.)

1шт.

33

B51765

CLIP

- shut-off cable

1шт.

34

129-17

NUT,Hex, #10 - 24

NUT - ( hex) #10-24

1шт.

35

A149721

CABLE

ASSY - fuel shut-off, with red knob (Replaces A77211), Includes: Ref. 36 and 37

1шт.

36

92-7

LOCK WASHER,7/16"

1шт.

37

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

Jam, 7/16"- 20, G5

1шт.
