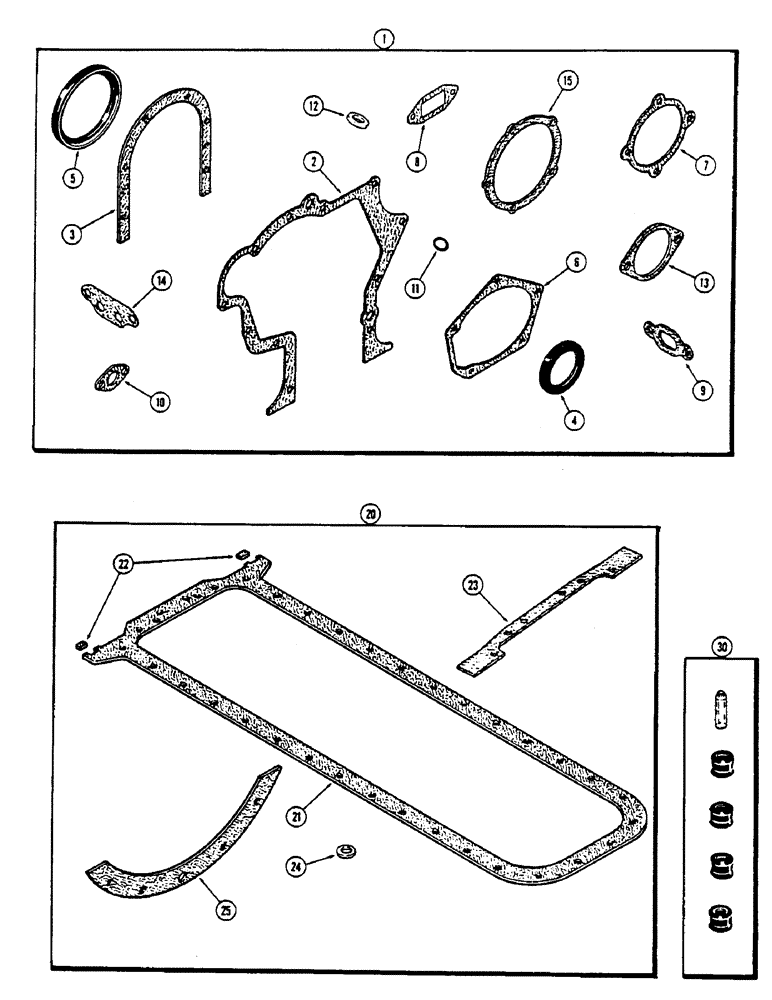

Запчасти Case IH 2670 (060) - ENGINE GASKET KITS, 504BDT INTERCOOLED DIESEL ENGINE CYLINDER BLOCK KIT (02) - ENGINE

1

A44075

GASKET KIT

- cylinder block, Includes: Ref. 2 - 14

1шт.

For complete engine overhaul with 5.189" to 5.194" fire dam diameter sleeves order A151404, A44075 and A152479 and for complete engine overhaul with 5.092" to 5.097" fire dam diameter sleeves order A151406, A44075 and A152479.

1шт.

2

A58612

GASKET

- timing gear cover

1шт.

3

A32830

GASKET

- rear seal retainer

1шт.

4

A62049

OIL SEAL

- oil, crankshaft front

1шт.

5

A62050

OIL SEAL

- oil, crankshaft rear

1шт.

6

A58615

GASKET

- fuel pump cover

1шт.

7

A58646

GASKET

- water pump

1шт.

8

A58649

GASKET

- water pump body

1шт.

9

A58670

GASKET

- oil cooler, Serial Range: tube-block

1шт.

10

A58680

OIL PAN GASKET SET

- oil cooler tube to water pump

1шт.

11

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil filter base

3шт.

12

A58613

SEALING WASHER

GASKET - timing gear cover plug

1шт.

13

A58617

GASKET

- auxiliary drive cover (Not used this unit)

1шт.

14

A58756

OIL PAN GASKET SET

- oil filter base (Not used this unit)

1шт.

15

A76656

GASKET

- water pump

1шт.

20

A152479

GASKET KIT

- oil pan, Includes: Ref. 21 - 25

1шт.

For complete engine overhaul with 5.189" to 5.194" fire dam diameter sleeves order A151404, A44075 and A152479 and for complete engine overhaul with 5.092" to 5.097" fire dam diameter sleeves order A151406, A44075 and A152479.

1шт.

21

A150688

GASKET

- pan to block, oil kit

1шт.

22

A150690

OIL PAN GASKET SET

- corner, pan to housing, oil kit

2шт.

23

A150689

GASKET

- flywheel housing cover, oil pan kit

1шт.

24

A27968

RING

- drain plug (Copper), oil pan kit

1шт.

25

A57966

GASKET

- pan to transmission, oil kit

1шт.

30

M20614

SEAL KIT

SEAL KIT - valve (Includes four seals and installation sleeve), oil pan

1шт.
