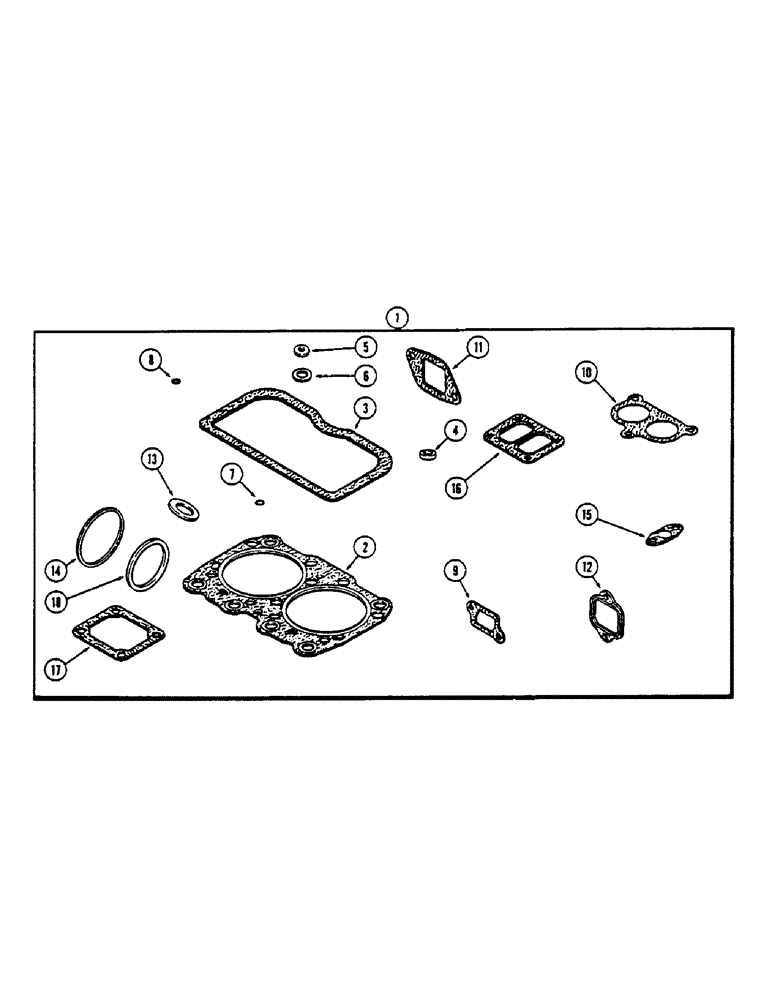

Запчасти Case IH 2670 (056) - ENGINE GASKET KITS, 504BDT INTERCOOLED DIESEL ENGINE, VALVE GRIND KIT (02) - ENGINE

1

A151404

GASKET

KIT - valve grind, Includes: Ref. 2 - 18

1шт.

For complete engine overhaul order 1-A151404, 1-A44075 and A152479.

1шт.

2

A138397

CYLINDER HEAD GASKET

- cylinder, Serial Range: head-block

3шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover

3шт.

4

A23684

GASKET

GASKET - cover studs

6шт.

5

A34133

GASKET

- breather tube bolt

3шт.

6

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather, Serial Range: tube-cover

3шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker shaft oil tube

3шт.

8

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

9

A58637

MANIFOLD GASKET

- water manifold

3шт.

10

A58639

GASKET

- thermostat housing

1шт.

11

A58662

MANIFOLD GASKET

- intake manifold

6шт.

12

A140252

MANIFOLD GASKET

- exhaust manifold (Metal faced) (Replaces A58895)

6шт.

13

1342829C1

GASKET

WASHER - injection nozzle; Replaces A76640

6шт.

14

A138817

RING,2.64mm Thk

SEAL - turbocharger

1шт.

15

A58892

GASKET,1.59mm Thk

- turbocharger oil drain tube

1шт.

16

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

2шт.

17

A58910

GASKET

- air intake elbow

1шт.

18

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- turbocharger exhaust

1шт.
