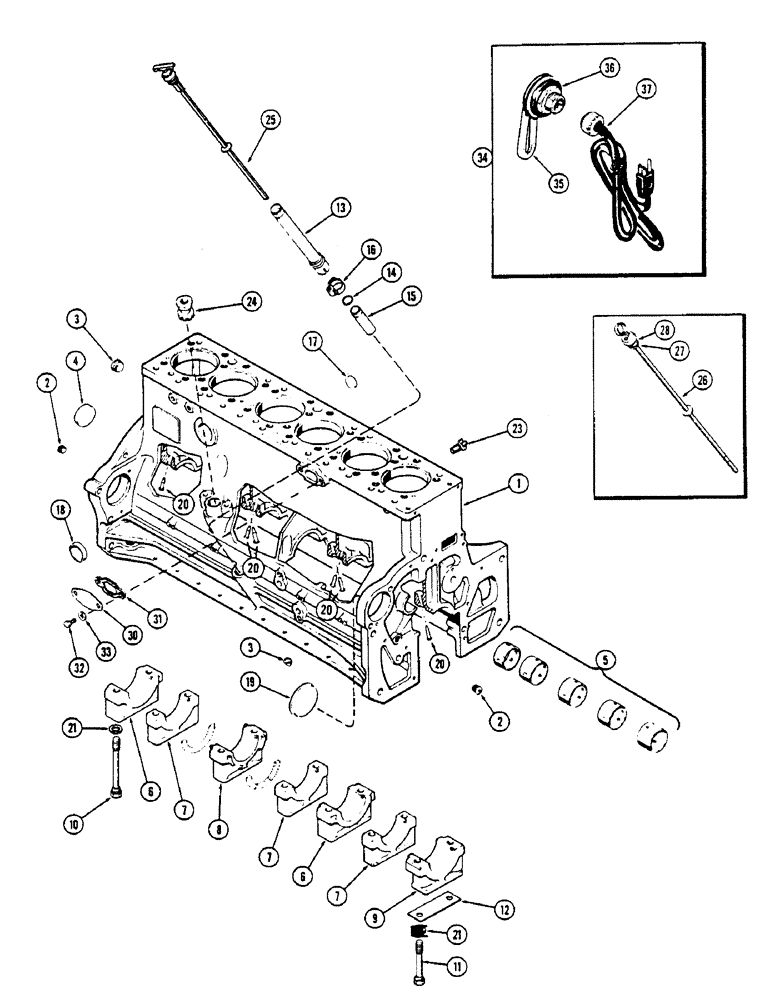

Запчасти Case IH 2670 (046) - CYLINDER BLOCK, 504BDT INTERCOOLED DIESEL ENGINE (02) - ENGINE

A44090

CRANKCASE

BLOCK ASSY.- short (Includes stripped block, pistons, conn. rods and brgs., crankshaft and brgs., camshaft and bushings, timing gears and push rod lifters) (Casting no. A66527), Includes: Ref. 1 - 37

1шт.

1

A44077

CRANKCASE

BLOCK ASSY. - stripped (Casting No. A66527), Includes: Ref. 2 - 15

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - pipe (3/8" P.T., hex socket head) oil gallery

4шт.

3

221-1849

PLUG

PLUG - pipe (1/8" P.T., hex socket hd.) oil gallery

6шт.

4

A24361

PLUG

PLUG - cup, 2-3/8" (60.33 MM) camshaft hole

1шт.

5

A23544

BUSHING

BUSHING - camshaft (See Figure 44)

1шт.

6

A58562

CAP

CAP - main bearing, wide

2шт.

7

A58563

CAP

CAP - main bearing, narrow

2шт.

8

A58564

CAP

CAP - main bearing, thrust

1шт.

9

A63902

CAP

CAP - main bearing, front

1шт.

10

A66948

STEP BOLT

BOLT - 5/8 x 5" N.C., special, grade 8

12шт.

11

A66949

STEP BOLT

BOLT - 5/8 x 7-1/4" N.C., special, grade 3 (Bearing cap to oil pump)

2шт.

12

A58859

SHIM,.005" Thk

SHIM, , Oil pump to front brg. cap (.127 mm) .005" Thk

1шт.

13

A65778

TUBE

TUBE - oil filler extension

1шт.

14

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

O-RING - oil filler tube, 1-1/8 x 1-3/8 x 1/8" (28.58 x 34.93 x 3.18 MM)

1шт.

15

A34540

TUBE

TUBE - oil filler

1шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4" (30.16 to 44.45 MM)

1шт.

17

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - cup, 1-3/8" (34.93 MM)

3шт.

18

A58569

PLUG,Cup, 2", Stainless

PLUG - cup, 2" (50.8 MM) block heater hole

1шт.

19

41-1052

PLUG,Cup, 3 1/4"

PLUG - cup, 3-1/4" (82.55 MM)

1шт.

20

A63903

NOZZLE CAP

NOZZLE - piston oil cooling

6шт.

21

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - (21/32 x 1 x 1/8")

14шт.

23

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

24

A34266

DRIVE

DRIVE - tachometer

1шт.

25

A138326

DIPSTICK

DIPSTICK ASSY. - (Screw type) (See A76631) 21.16" long

1шт.

26

A76631

DIPSTICK

DIPSTICK ASSY. - (Push type) (See A138326), Includes: Ref. 27 and 28

1шт.

27

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

O-RING - 47/64 x 1 x 1/8" (18.65 x 25.4 x 3.18 MM)

1шт.

28

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O-RING - 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 MM)

1шт.

30

A58851

PLATE

PLATE - oil cooler water opening

1шт.

31

A58670

GASKET

GASKET - water opening plate

1шт.

32

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

BOLT, Hex 1/2"-13 x 7/8", G5, Full Thd

2шт.

33

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

34

A47474

HANDLE

HEATER ASSY. - block (Replaces A42279), Includes: Ref. 35 - 37

1шт.

35

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A47474), block

1шт.

36

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

O-RING - (1-3/4 x 2 x 1/8"), block heater

1шт.

37

A44813

CABLE EXTENSION

CORD - heater (With plugs) (Replaces A42297), block

1шт.

37

AR77829

REMAN-BASIC ENGINE

Remanufactured

1шт.

37

AC77829

CORE-BASIC ENGINE

Return Number

1шт.
