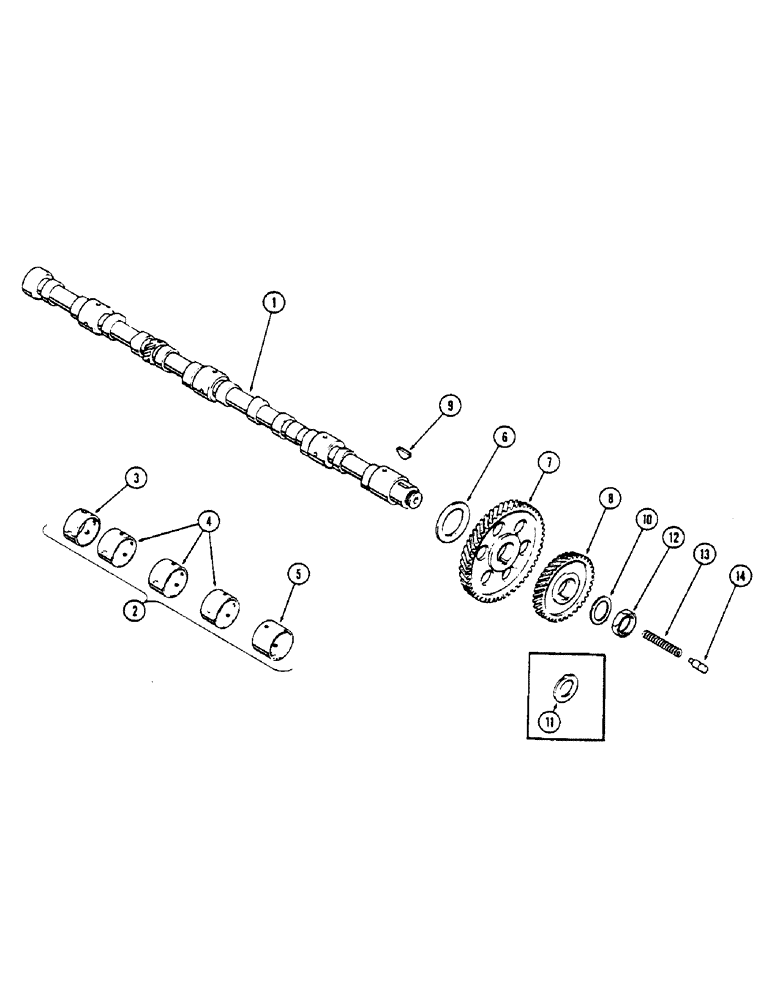

Запчасти Case IH 2670 (044) - CAMSHAFT, 504BDT INTERCOOLED DIESEL ENGINE (02) - ENGINE

1

A66124

CAMSHAFT

- engine

1шт.

2

A23544

BUSHING

KIT - camshaft (Set of 4), Includes: Ref. 3- 5

1шт.

3

A23487

BUSHING,44.35mm ID x 60.3mm OD x 29.62mm L

- camshaft, rear, 1-5/32" wide (29.37 MM)

1шт.

4

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

- camshaft, intermediate, 1-7/16" wide (36.51 MM)

3шт.

5

A21018

BUSHING,57.11mm ID x 60.33mm OD x 42.32mm L

- camshaft, front, 1-21/32" wide (42.07 MM)

1шт.

6

A21017

WASHER

- thrust, camshaft

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - (5/16 x 1-5/16" Hi-Pro)

1шт.

10

A31038

THRUST WASHER

- thrust, camshaft (Replaces A58594)

1шт.

11

A58594

LOCK WASHER

- lock, camshaft nut (Order A31038)

1шт.

12

A58595

NUT

- camshaft

1шт.

13

A27853

SPRING

- plunger, camshaft thrust, 3-5/8" free length (92.08 MM)

1шт.

14

A27852

PLUNGER

- thrust, camshaft

1шт.
