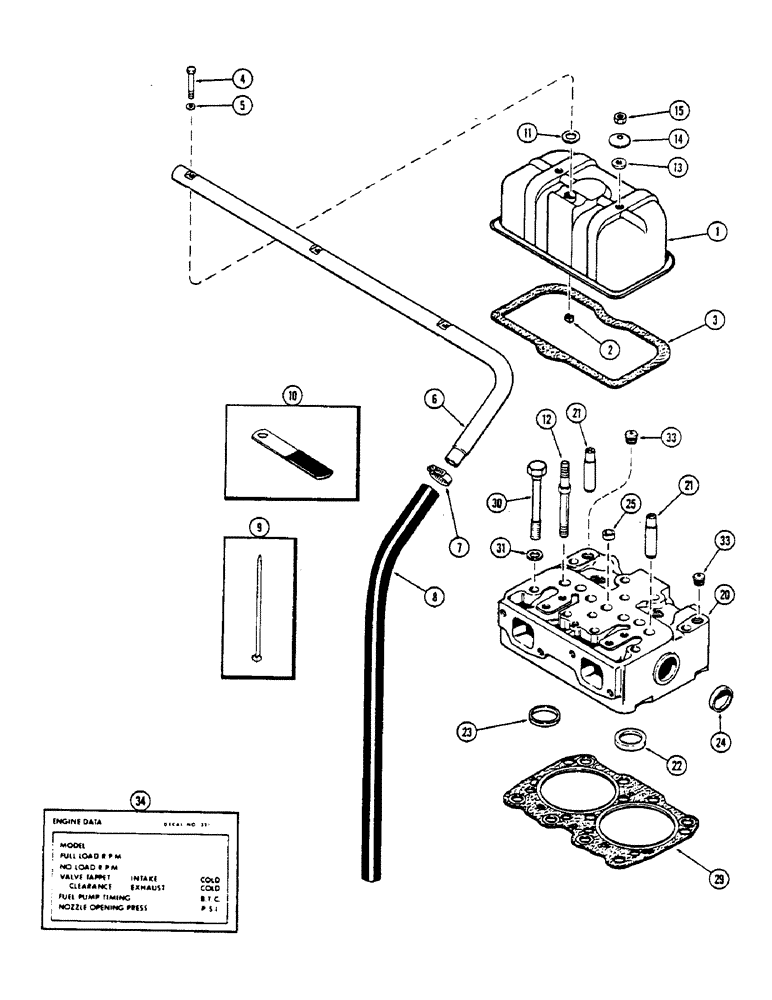

Запчасти Case IH 2670 (040) - CYLINDER HEAD AND COVER, 504BDT INTERCOOLED DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A58929
COVER
COVER ASSEMBLY - cylinder head, Includes: Ref. 2
3шт.
2
131-114
SPRING NUT,Rtnr, 1/4" - 20, 0.25" High
NUT - (1/4" NC Tinnerman)
1шт.
3
A65734
CYLINDER HEAD GASKET
GASKET - cylinder head cover
3шт.
5
A34133
GASKET
GASKET - tube, upper
3шт.
6
A66640
TUBE
TUBE - breather blow-by (Rear)
1шт.
7
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose, 1-3/16 to 1-3/4" (30.16 to 44.45 MM)
1шт.
8
A66132
HOSE
HOSE - breather
1шт.
9
A160890
STRAP
STRAP - breather hose (Replaces L11541)
1шт.
10
A22883
CLIP
CLIP - breather, Serial Range: hose-block
1шт.
11
A58635
GASKET,17.27mm ID x 32mm OD x 6.6mm Thk
GASKET - tube, lower
3шт.
12
A67121
STUD
STUD - rocker arm bracket and cover (Replaces A60885)
6шт.
13
A23684
GASKET
GASKET - cover stud (Rubber)
6шт.
14
A23683
WASHER
WASHER - cover stud (Dished)
6шт.
15
25-107
NUT,7/16"-14, G5
NUT - (7/16" NC hex)
6шт.
20
A138261
HEAD (CYLINDER)
HEAD ASSEMBLY - cylinder (Casting no. A138337), Includes: Ref. 21 - 25
3шт.
20
AR152265
REMAN-CYLINDER HEAD
Cylinder Head
3шт.
20
AC152265
CORE-CYLINDER HEAD
Return Number
3шт.
21
A41783
GUIDE
GUIDES - intake and exhaust valves
4шт.
22
A66192
INSERT
INSERT - exhaust valve seat
2шт.
23
A66191
INSERT
INSERT - intake valve seat
2шт.
24
A34124
PLUG,Cup, 1 5/8", Stainless
PLUG - 1-5/8" (41.3 MM) cup type
2шт.
25
A58620
PLUG,Cup, 3/4", Stainless
PLUG - 3/4" (19.1 MM) cup type
3шт.
29
REF
INSTRUCTION
GASKET - cylinder head with fire ring (See Figure 56 or 58)
3шт.
30
A76638
BOLT
BOLT - 5/8 x 6-1/4" NC hex head, grade 8 (Replaces A136498)
30шт.
31
A58629
BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk
WASHER - head bolt
30шт.
33
221-843
PLUG,Hex Soc, 3/8"-18
PLUG - pipe (3/8" PT hex socket head)
5шт.
34
321-2976
SPARE PART DECAL - engine data
1шт.
Выбрано товаров: 28
