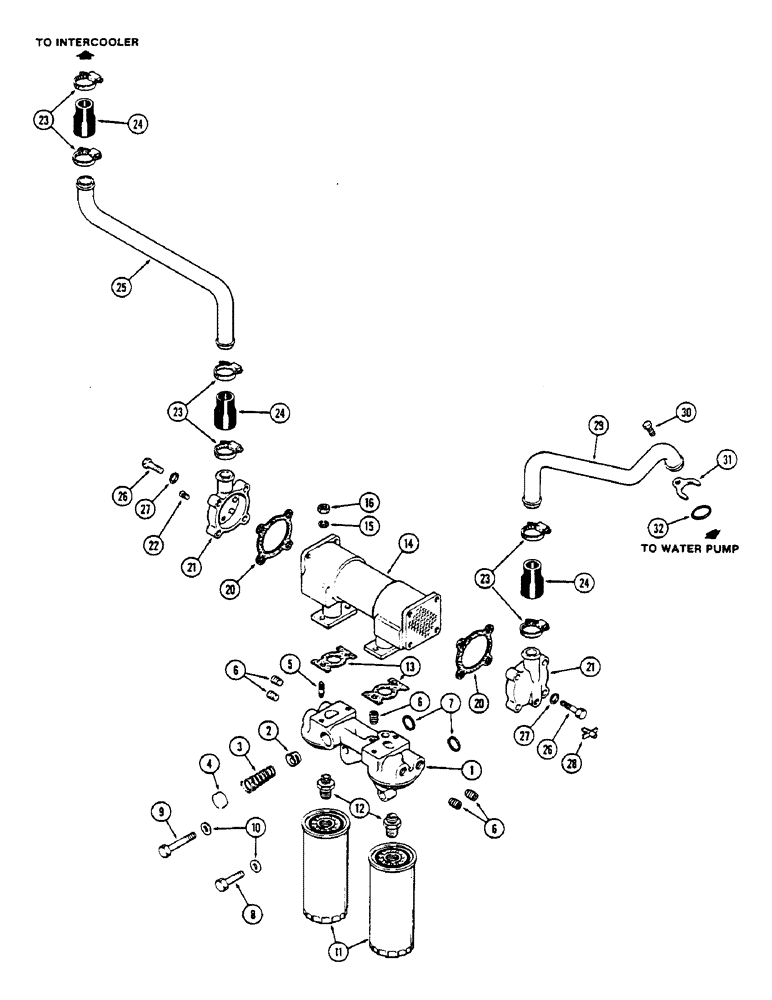

Запчасти Case IH 2670 (038) - OIL FILTER AND HEAT EXCHANGER, 504BDT INTERCOOLED DIESEL ENGINE (02) - ENGINE

1

A64107

BASE

ASSY. - oil filter and heat exchanger, Includes: Ref. 2 - 6

1шт.

2

A21090

VALVE

- relief, filter

1шт.

3

A58669

SPRING

- relief valve, 2-13/16" free length (71.44 MM)

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- 1-1/4" cup type (31.75 MM)

1шт.

5

G102128

BOLT

- (3/8" N.C. x 1-1/2")

4шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

- pipe (1/2" hex socket head)

5шт.

7

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- base to block, 59/64 x 1-1/8 x 7/64" (23.42 x 28.58 x 2.78 MM)

2шт.

8

113-832

SCREW,Hex, 7/8"-9 x 2 3/4", G8

BOLT - 1/2 x 2" N.C. hex, grade 5

1шт.

9

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2 x 3" N.C. hex, grade 5

1шт.

10

195-33

WASHER,1/2"

- (17/32 x 1-1/16 x 7/64")

2шт.

11

A44081

ENGINE OIL FILTER

ELEMENT - oil filter

2шт.

12

A63916

ADAPTER

-, Serial Range: filter-base

2шт.

13

A65359

GASKET

- heat exchanger to filter base

2шт.

14

A75295

OIL COOLER

HEAT EXCHANGER - oil

1шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex)

4шт.

20

A63920

GASKET

- bonnet

2шт.

21

A64349

HOOD

BONNET - heat exchanger ends

2шт.

22

221-11

PLUG,Sq Hd, 1/8"-27

- pipe (1/8" square head)

1шт.

23

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16 to 1-3/4")

6шт.

24

A58640

HOSE

- straight (replaces A64353)

3шт.

25

A76665

TUBE

- intercooler to heat exchanger

1шт.

26

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1/-1/2" N.C. hex, grade 5

8шт.

27

92-6

LOCK WASHER,3/8"

8шт.

28

217-107

VALVE

DRAINCOCK - heat exchanger

1шт.

29

A76664

PIPE

TUBE - heat exchanger to water pump

1шт.

30

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

31

A76666

CLAMP

- retainer, tube O-ring

1шт.

32

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- sealing, tube to water pump, 1-1/8 x 1-3/8 x 1/8" (28.58 x 34.93 x 3.18 MM)

1шт.
