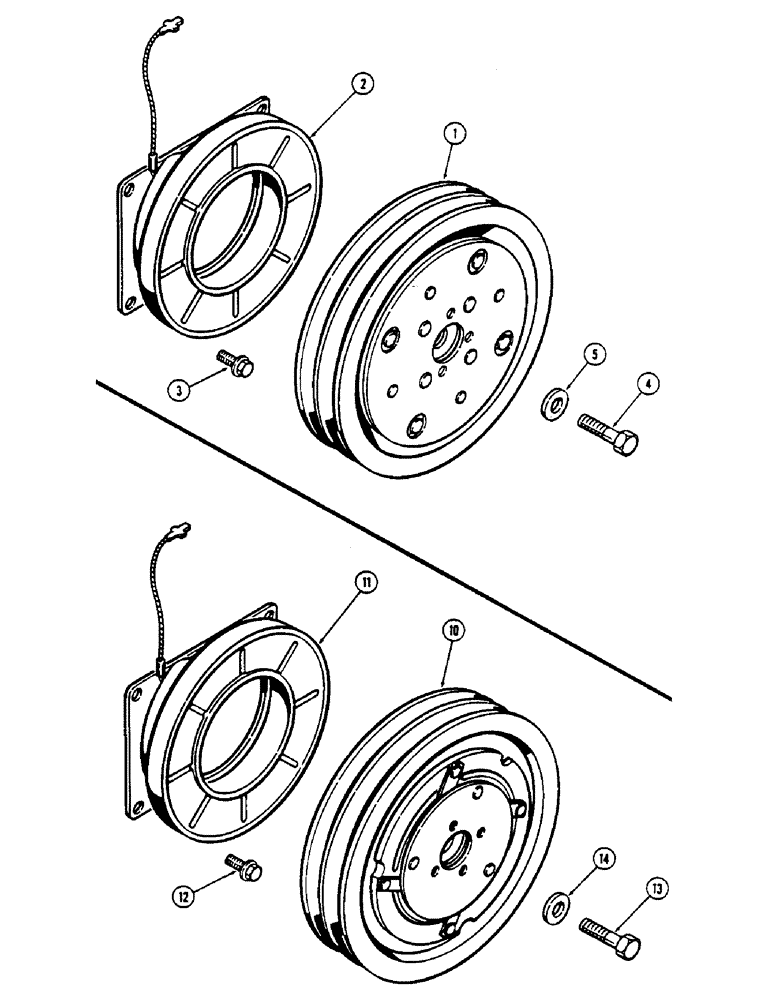

Запчасти Case IH 2670 (546) - CAB, AIR CONDITIONER, YORK COMPRESSOR CLUTCH ASSEMBLY (09) - CHASSIS/ATTACHMENTS

A64956

CLUTCH

ASSY - (Warner Electric #I-1405-17) (Order A66057), Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

PULLEY ASSY - rotor

1шт.

2

A66057

CLUTCH

FIELD ASSY - pulley, 1/2" (12.7 MM)

1шт.

2

A66058

CLUTCH

FIELD ASSY - pulley, 7/16" (11.11 MM), Includes: Ref. 3 - 5

1шт.

3

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

4

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

- 5/16 x 1-1/4" NC hex, grade 5

1шт.

5

A27343

BUSHING

SPACER - clutch attaching bolt

1шт.

A66057

CLUTCH

ASSY - (Warner Electric #I-1436-14), Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

PULLEY ASSY - rotor

1шт.

11

A44568

ELECTRIC CLUTCH

FIELD ASSY - pulley

1шт.

12

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

13

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

- 5/16 x 1-1/4" NF hex, grade 5

1шт.

14

A27343

BUSHING

SPACER - clutch attaching bolt

1шт.
