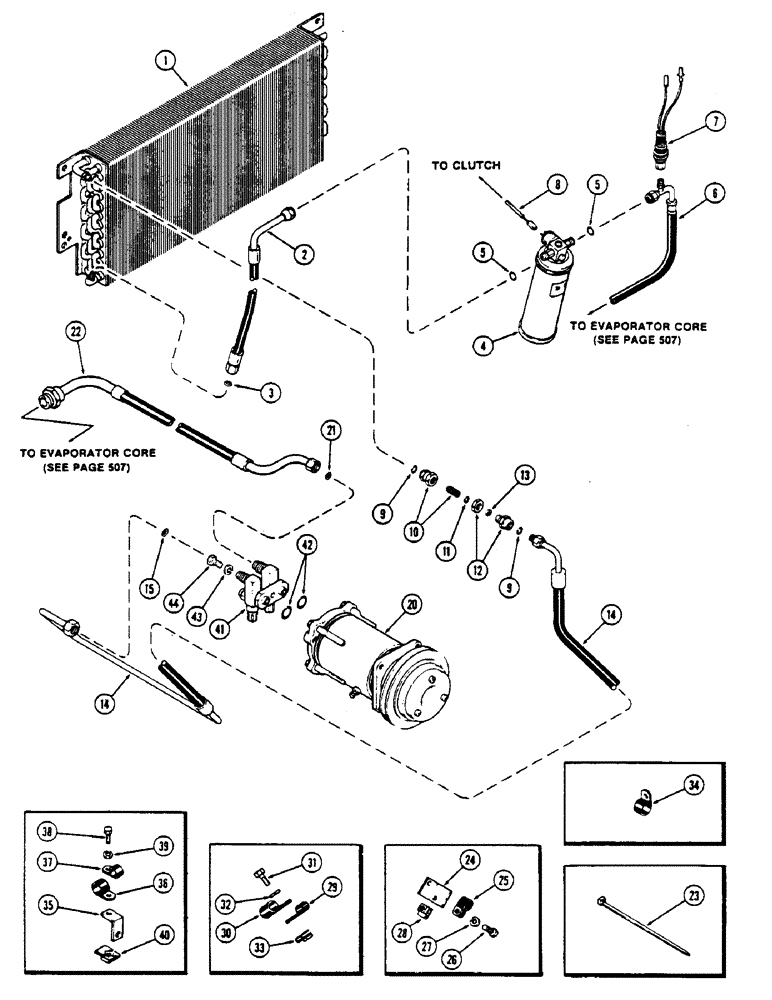

Запчасти Case IH 2670 (542) - CAB, AIR CONDITIONER HOSES, WITH G.M. COMPRESSOR (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CONDENSER - air conditioner (See Figure 538)

1шт.

2

A141409

HOSE

- condenser to receiver dryer (Not used with A76375 condenser) (See Figure 538)

1шт.

3

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

4

REF

INSTRUCTION

DRYER - receiver (See page 514)

1шт.

5

A61198

O-RING,0.07" Thk x 0.301" ID, -11

- receiver dryer, 5/16 x 7/16 x 1/16" (7.9375 x 11.1125 x 1.5875 MM)

2шт.

6

A76315

HOSE

- receiver, Serial Range: dryer-cab

1шт.

7

A65779

SWITCH

- high pressure

1шт.

8

A135467

HARNESS

- wire, compressor

1шт.

9

A61195

O-RING,0.364" ID x 0.5" OD

- packing

2шт.

10

A42663

COUPLING,1/2" - 20 NPT

COUPLING ASSY - female half, Includes: Ref. 11

1шт.

11

A42665

O-RING,0.239" ID x 0.375" OD x 0.07"

- coupling

1шт.

12

A61196

COUPLING, BREAK AWAY

COUPLING ASSY - male half, Includes: Ref. 13

1шт.

13

A42667

GASKET

- coupling

1шт.

14

A141200

HOSE

- compressor to condenser (Replaces A135267)

1шт.

15

222-994

GASKET,1/2 Tube, Fl, Copper

- 45 degree copper flare (1/2" tube)

1шт.

20

REF

INSTRUCTION

COMPRESSOR ASSY - air conditioner (See Figure 536)

1шт.

21

222-995

SEALING WASHER,15.88mm ID

- 45 degree copper flare (5/8" tube)

1шт.

22

A141201

HOSE

- compressor to cab (Replaces A135333)

1шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon, clutch wire to hoses (Replaces L11541)

1шт.

24

A135365

BRACKET - mounting, compressor to condenser hose

1шт.

25

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- hose, 1/2" (12.7 MM)

1шт.

26

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

28

131-616

NUT,Ret, J, 5/16"-18

- 5/16" NC Tinnerman

1шт.

29

49855

CLAMP

- HOSE, 3/4" OD (19.05 MM)

1шт.

30

49789

CLAMP

- hose, 1" OD (25.4 MM)

1шт.

31

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

33

131-616

NUT,Ret, J, 5/16"-18

- 5/16" NC Tinnerman

1шт.

34

51200329

CLIP

CLAMP - hose, 3/4" (19.05 MM)

1шт.

35

A76316

BRACKET - mounting, air conditioner hose to clutch housing

1шт.

36

D39138

CLAMP

- hose, 1-1/8" OD (28.575 MM)

1шт.

37

49855

CLAMP

- hose, 3/4" OD (19.05 MM)

1шт.

38

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

39

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

40

131-616

NUT,Ret, J, 5/16"-18

- 5/16"-18 Tinnerman

1шт.

41

A135413

VALVE

- dual, compressor

1шт.

42

A44941

O-RING

- dual, Serial Range: valve-compressor

2шт.

43

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

44

113-281

BOLT - 3/8 x 3/4" NF hex, grade 5

1шт.
