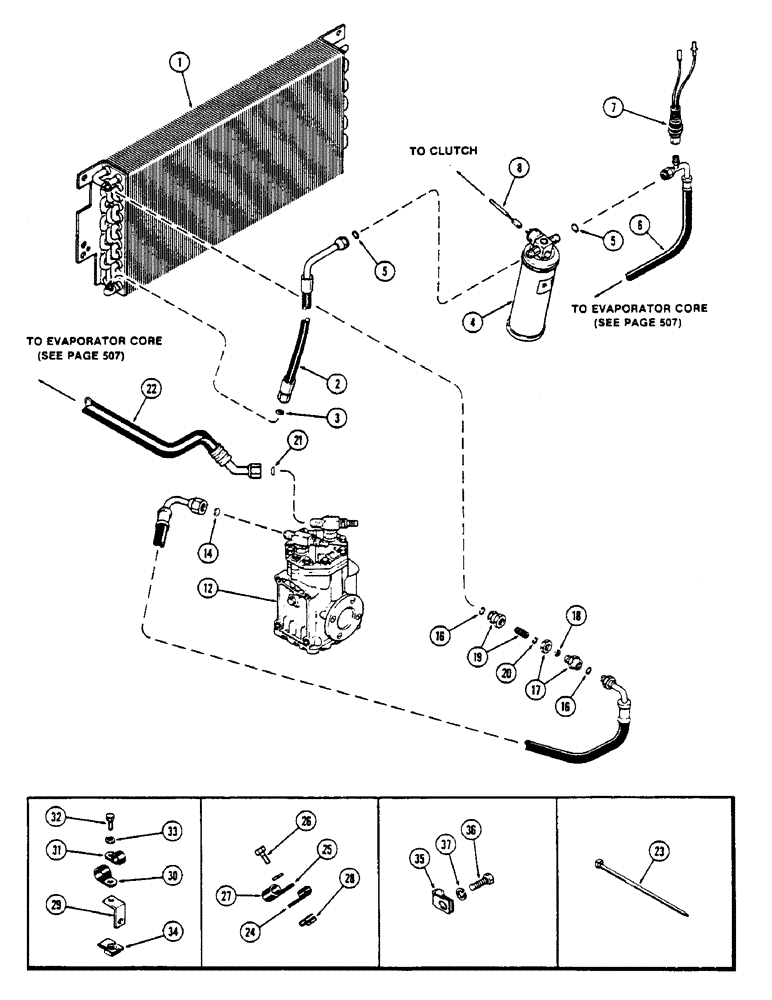

Запчасти Case IH 2670 (540) - CAB, AIR CONDITIONER HOSES, WITH YORK COMPRESSOR (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CORE - condenser (See Figure 538)

1шт.

2

A141409

HOSE

- condenser to receiver dryer (Not used with A76375 condenser) (See Figure 538)

1шт.

3

222-993

GASKET,3/8 Tube, Fl, Copper

Hose to condenser 3/8 Tube, Fl, Copper

1шт.

4

A76312

RECEIVER-DRYER

DRYER - receiver

1шт.

5

A61198

O-RING,0.07" Thk x 0.301" ID, -11

- receiver dryer, 5/16 x 7/16 x 1/16" (7.9375 x 11.1125 x 1.5875 MM)

2шт.

6

A76315

HOSE

- receiver, Serial Range: dryer-cab

1шт.

7

A65779

SWITCH

- high pressure

1шт.

8

A61755

ELECTRICAL WIRE

WIRE -, Serial Range: switch-clutch

1шт.

12

REF

INSTRUCTION

COMPRESSOR ASSY - (See Figure 536)

1шт.

13

A76259

HOSE

-, Serial Range: compressor-compressor

1шт.

14

222-994

GASKET,1/2 Tube, Fl, Copper

- 45 degree copper flare (1/2" tube)

1шт.

16

A61195

O-RING,0.364" ID x 0.5" OD

- 3/8 x 1/2 x 1/16" (9.525 x 12.7 x 1.5875 MM)

2шт.

17

A61196

COUPLING, BREAK AWAY

COUPLING ASSY - male half, Includes: Ref. 18

1шт.

18

A42667

GASKET

- coupling

1шт.

19

A42663

COUPLING,1/2" - 20 NPT

COUPLING ASSY - female half, Includes: Ref. 20

1шт.

20

A42665

O-RING,0.239" ID x 0.375" OD x 0.07"

- coupling

1шт.

21

222-995

SEALING WASHER,15.88mm ID

- 45 degree copper flare (5/8" tube)

1шт.

22

A76260

TUBE ASSY.

HOSE -, Serial Range: cab-compressor

1шт.

23

A160890

STRAP

- nylon, clutch wire to hoses (Replaces L11541)

1шт.

24

49855

CLAMP

- hose, 3/4" OD (19.05 MM)

1шт.

25

49789

CLAMP

- hose, 1" OD (25.4 MM)

1шт.

26

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

28

131-616

NUT,Ret, J, 5/16"-18

- 5/16" NC Tinnerman

1шт.

29

A76316

BRACKET - hose to clutch housing

1шт.

30

D39138

CLAMP

- hose, 1-1/8" OD (29.575 MM)

1шт.

31

49855

CLAMP

- hose, 3/4" OD (19.05 MM)

1шт.

32

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

33

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

34

131-616

NUT,Ret, J, 5/16"-18

- 5/16"-18 Tinnerman

1шт.

35

A7922

CLIP

- clutch, Serial Range: wire-compressor

1шт.

36

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

37

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
