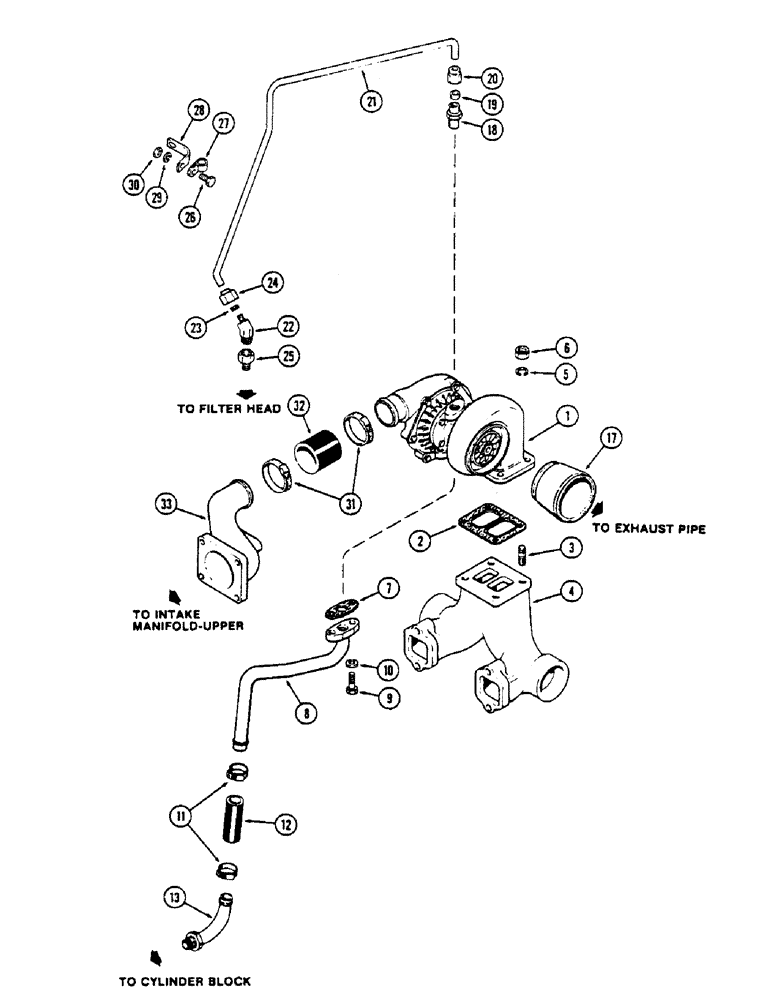

Запчасти Case IH 2670 (034) - TURBOCHARGER AND ATTACHING PARTS, 504BDT INTERCOOLED DIESEL ENGINE, USED PRIOR TO ENG. S/N 10018831 (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER - (See Figure 36)

1шт.

2

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

1шт.

3

G102128

BOLT

- (3/8" N.C. x 1-1/2") (Replaces G11204)

4шт.

4

A76322

MANIFOLD

- exhaust, center

1шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

131-903

NUT,3/8"-16

NUT - (3/8" N.C. hex, Seez-Pruf)

4шт.

7

A58892

GASKET,1.59mm Thk

- oil drain tube

1шт.

8

A62518

TUBE

- oil drain, turbocharger

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose 1-3/16 to 1-3/4" (30.16 to 44.45 MM)

2шт.

12

A58893

HOSE

- drain to fitting, turbocharger

1шт.

13

A58897

FITTING

- drain, to cylinder block

1шт.

17

A65554

TUBE

CONNECTOR - turbocharger to exhaust pipe

1шт.

18

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR ASSY. - straight (Used with A75303 tube), Includes: Ref. 19 and 20

1шт.

19

222-154

SLEEVE,3/8" Tube

- (9.53 MM) 3/8" Tube

1шт.

20

222-114

NUT,5/8"-24

NUT - 3/8" tube (9.53 MM)

1шт.

21

A75303

TUBE

- oil supply, turbocharger (Order A153800 and 217-19)

1шт.

22

222-4095

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

ASSY. - 45 degrees, Includes: Ref. 23 and 24

1шт.

23

222-154

SLEEVE,3/8" Tube

- for (9.53 MM) 3/8" Tube

1шт.

24

222-114

NUT,5/8"-24

NUT - for 3/8" tube (9.53 MM)

1шт.

25

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

- hex. (3/8 to 1/4")

1шт.

26

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used with A75303 tube Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

27

49845

CLAMP

CLIP - turbo oil supply tube

1шт.

28

A75301

BRACKET

- tube clip (Held by exhaust manifold bolt) (Used with A75303 tube)

1шт.

29

92-6

LOCK WASHER,3/8"

(used with A75303 tube) 3/8"

1шт.

30

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.) (Used with A75303 tube)

1шт.

A153800

TUBE

- oil supply, turbocharger (Replaces A75303) (See Figure 32, Ref. 21)

1шт.

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

ASSY. - 3/8" tube x 1/4" P.T., 90 degree street (Used with A153800 tube) (See Figure 32, Ref. 26)

1шт.

31

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

(33.34 to 57.17 mm) #28, 1.31/2.25 Type F Worm

2шт.

32

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

(Replaces A58894) 2.00" ID x 2.88"

1шт.

33

A76670

FITTING

ELBOW - air intake

1шт.
