(530) - CAB, HEADLINER NOISE PADS WITH RADIO, FIRST USED CAB SERIAL NUMBER 7864002

Запчасти Case IH 2670 (530) - CAB, HEADLINER NOISE PADS WITH RADIO, FIRST USED CAB SERIAL NUMBER 7864002 (09) - CHASSIS/ATTACHMENTS

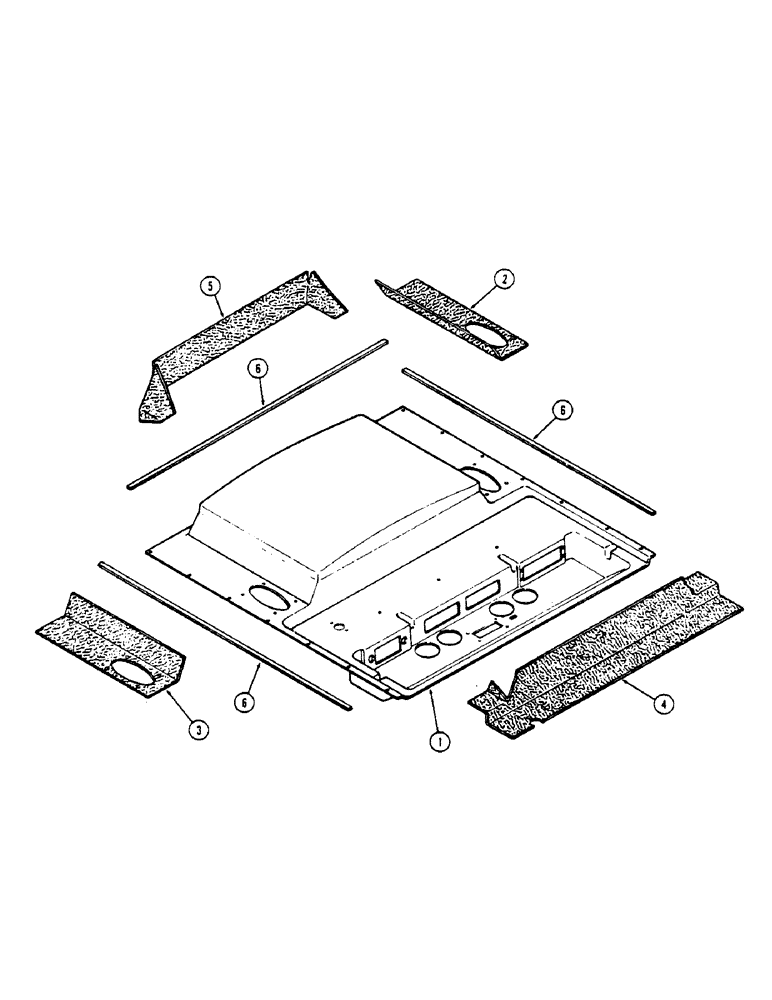

Схема запчастей Case IH 2670 - (530) - CAB, HEADLINER NOISE PADS WITH RADIO, FIRST USED CAB SERIAL NUMBER 7864002 (09) - CHASSIS/ATTACHMENTS
4
6
2
6
5
3
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HEADLINER - cab (See Figure 486)

1шт.

2

F64245

PAD

Damping, LH

1шт.

3

F64246

PAD

Damping, RH

1шт.

4

F64247

PAD

Damping, Front

1шт.

5

F64248

PAD

Damping, Rear

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - outer edge, 44" (1117.6 mm) (Order F64119)

3шт.

F64119

SEALING STRIP

Seal, 100 ft. roll (30480 mm)

1шт.
