(522) - CAB, REAR LIGHTS

Запчасти Case IH 2670 (522) - CAB, REAR LIGHTS (09) - CHASSIS/ATTACHMENTS

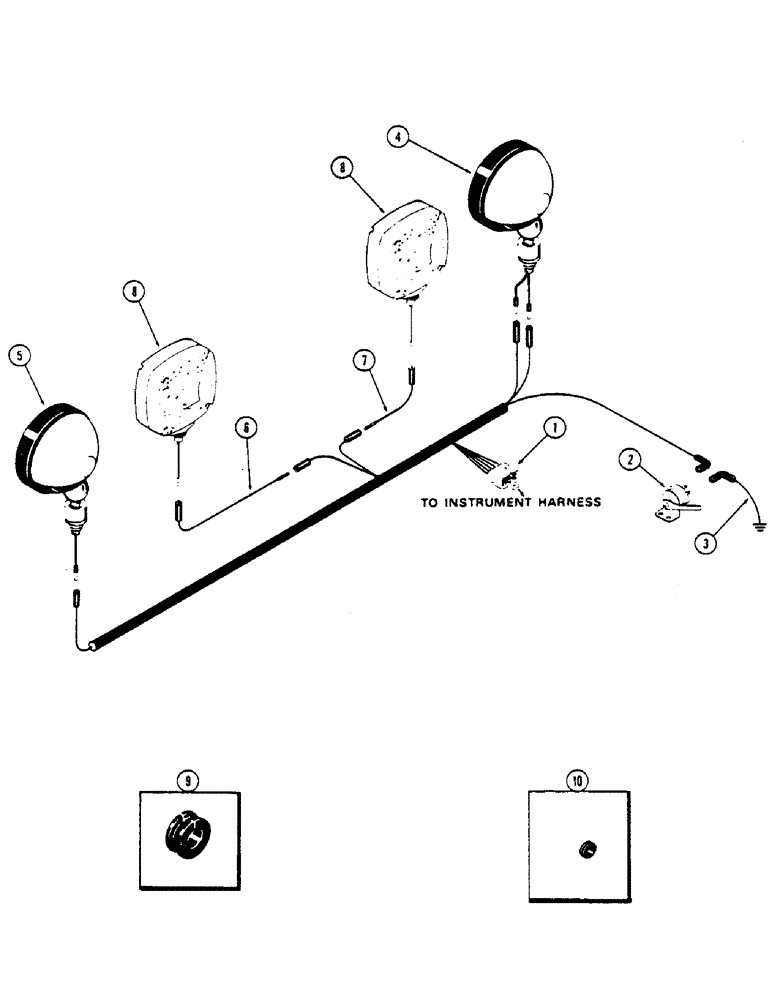

Схема запчастей Case IH 2670 - (522) - CAB, REAR LIGHTS (09) - CHASSIS/ATTACHMENTS
4
8
9
6
8
5
10
2
3
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F63852

HARNESS

SPARE PART Rear lights

1шт.

2

A33977

SWITCH

Parking brake light

1шт.

3

A59711

ELECTRICAL WIRE

WIRE Ground, hand brake switch

1шт.

4

A59703

LAMP

Rear flood and tail (LH side) (See Figure 132)

1шт.

5

A63822

HEADLIGHT

LAMP - rear flood (RH side) (See Figure 132)

1шт.

6

F63584

CABLE

Warning light (RH)

1шт.

7

F63585

CABLE

Warning light (LH)

1шт.

8

REF

INSTRUCTION

LAMP - flasher (Order A44201) (See Figure 126)

2шт.

9

353-700

BUSHING

GROMMET - frame (Replaces A31076)

2шт.

10

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

Cab, front and rear light harness

4шт.
