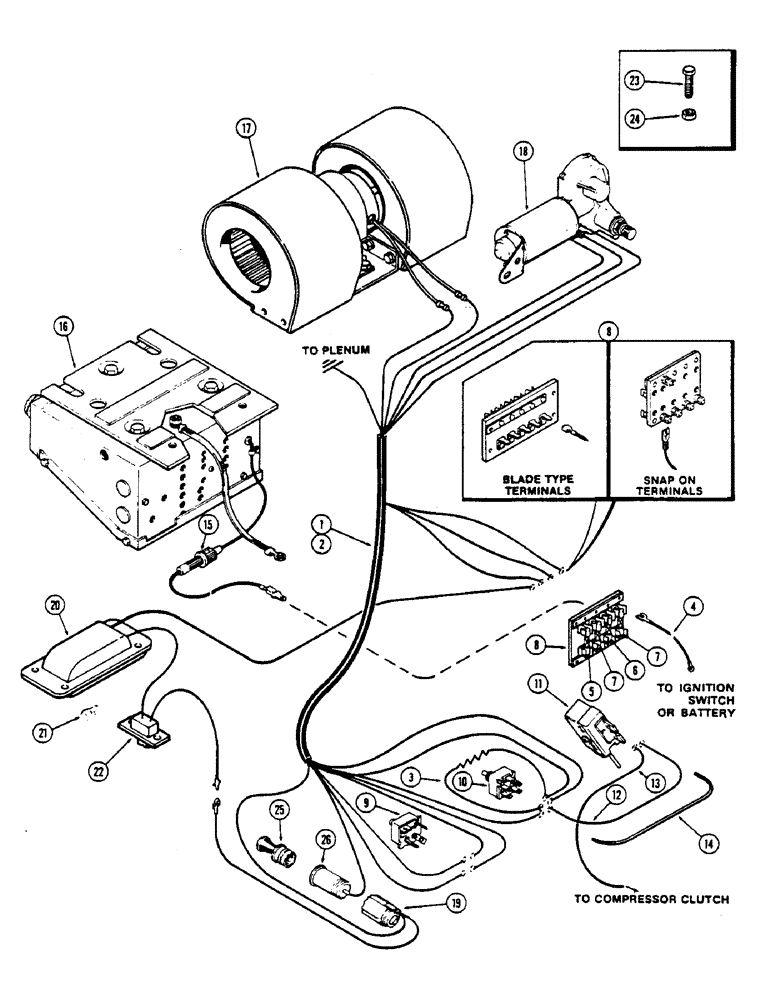

Запчасти Case IH 2670 (518) - CAB, CONTROLS AND WIRING, USED BEFORE CAB SERIAL NUMBER 7864002 (09) - CHASSIS/ATTACHMENTS

1

F63817

HARNESS

SPARE PART ASSY (With snap on fuse terminals) (Used before cab S/N 7844980), Includes: Ref. 3

1шт.

2

F64111

HARNESS

ASSY (With spade type fuse terminals) (1st used cab S/N 7844980), Includes: Ref. 3

1шт.

3

A42652

ELECTRICAL WIRE

WIRE Resistor, 18" orange and purple stripe (457.2 mm)

1шт.

4

F63816

ELECTRICAL WIRE

WIRE Input, brass bar, 154-1/2" red (3924.3 mm)

1шт.

5

223-33

FUSE,1 Amp, Type 3AG

Buss (Dome light)

1шт.

6

223-35

FUSE,8 Amp, Type 3AG

Buss (Wiper)

1шт.

7

223-15

FUSE,15 Amp, Type 3AG

Buss (Blower and cigar lighter)

2шт.

8

REF

INSTRUCTION

BLOCK - fuse

1шт.

9

F42660

SWITCH - wiper motor (See Figure 516) (Replaces F63532)

1шт.

10

A42622

SWITCH

Blower motor (See Figure 516)

1шт.

11

A42623

CONTROL

Cab temperature (See page 516)

1шт.

12

A42624

ELECTRICAL WIRE

WIRE Blower switch to temp. control, 6" black (152.4 mm)

1шт.

13

F63661

ELECTRICAL WIRE

WIRE Temp. control to compressor clutch, 230" (5842 mm)

1шт.

14

F63719

TUBE

Shield, temp. control, 8-1/2" (152.9 mm)

1шт.

15

223-26

FUSE,5 Amp, Type 3AG

1-1/4" length (31.75 mm)

1шт.

16

REF

INSTRUCTION

RADIO KIT - (See Figure 530)

1шт.

17

NSS

NOT SOLD SEPARAT

BLOWER ASSY. - (See Figure 526)

1шт.

18

REF

INSTRUCTION

MOTOR - windshield wiper (See page 522)

1шт.

19

F63738

CIGAR LIGHTER

SHELL - clamping (See Figure 516)

1шт.

20

REF

INSTRUCTION

LAMP ASSY - dome (See Figure 488), Includes: Ref. 21

1шт.

21

B50217

BULB

Dome lamp

1шт.

22

F63760

SWITCH

Dome lamp

1шт.

23

163-18

SCREW,Hex, #10 - 24 x 3/8"

Machine, control panel wire harness to wiper motor switch

1шт.

24

86625057

NUT,#10-24, GB

Esna

1шт.

25

REF

INSTRUCTION

ELEMENT - cigar lighter (See page 516)

1шт.

26

F63530

SOCKET/RECEPTACLE

Cigar lighter (See Figure 516)

1шт.
