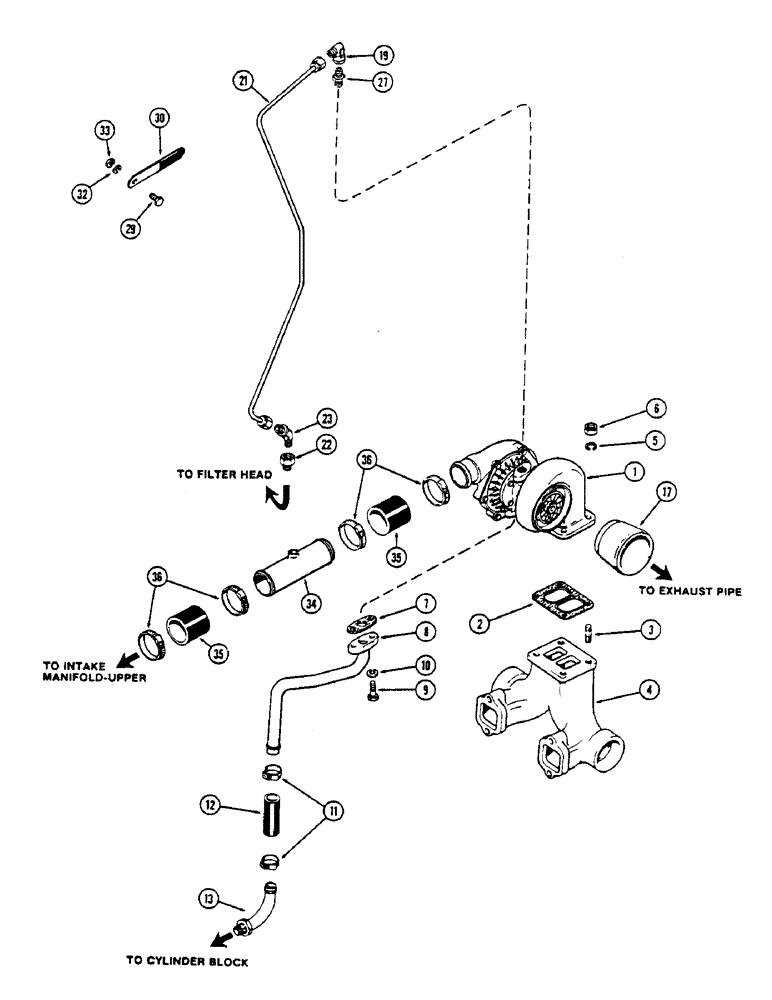

Запчасти Case IH 2670 (032) - TURBOCHARGER AND ATTACHING PARTS, 504BDT INTERCOOLED DIESEL ENGINE, FIRST USED ENG. S/N 10018831 (02) - ENGINE

1

REF

INSTRUCTION

TURBO-CHARGER - (See Figure 36)

1шт.

2

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

1шт.

3

G102128

BOLT

- 3/8" N.C. x 1 - 1/2" (Replaces G11204)

4шт.

4

A76322

MANIFOLD

- exhaust center

1шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex, Seez-Pruf

4шт.

7

A58892

GASKET,1.59mm Thk

- oil drain tube

1шт.

8

A62518

TUBE

- oil drain, turbocharger

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.16 x 44.45 MM)

2шт.

12

A58893

HOSE

- drain to fitting, turbocharger

1шт.

13

A58897

FITTING

- drain, to cylinder block

1шт.

17

A65554

TUBE

CONNECTOR - turbocharger to exhaust pipe

1шт.

19

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

ASSY. - 3/8" tube, x 1/4" P.T., 90 degree street

1шт.

21

A153800

TUBE

- oil supply, turbocharger

1шт.

22

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducer, 3/8 to 1/4"

1шт.

23

222-4095

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

ASSY. - 3/8" tube x 3/8" P.T., 45 degree

1шт.

27

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR

1шт.

29

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

30

A22883

CLIP

- turbo oil supply tube

1шт.

32

92-6

LOCK WASHER,3/8"

1шт.

33

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

34

A144406

TUBE

- air intake

1шт.

35

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

- Elbow (Replaces A58894) 2.00" ID x 2.88"

2шт.

36

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

(33.34 to 57.17 mm) #28, 1.31/2.25 Type F Worm

4шт.
