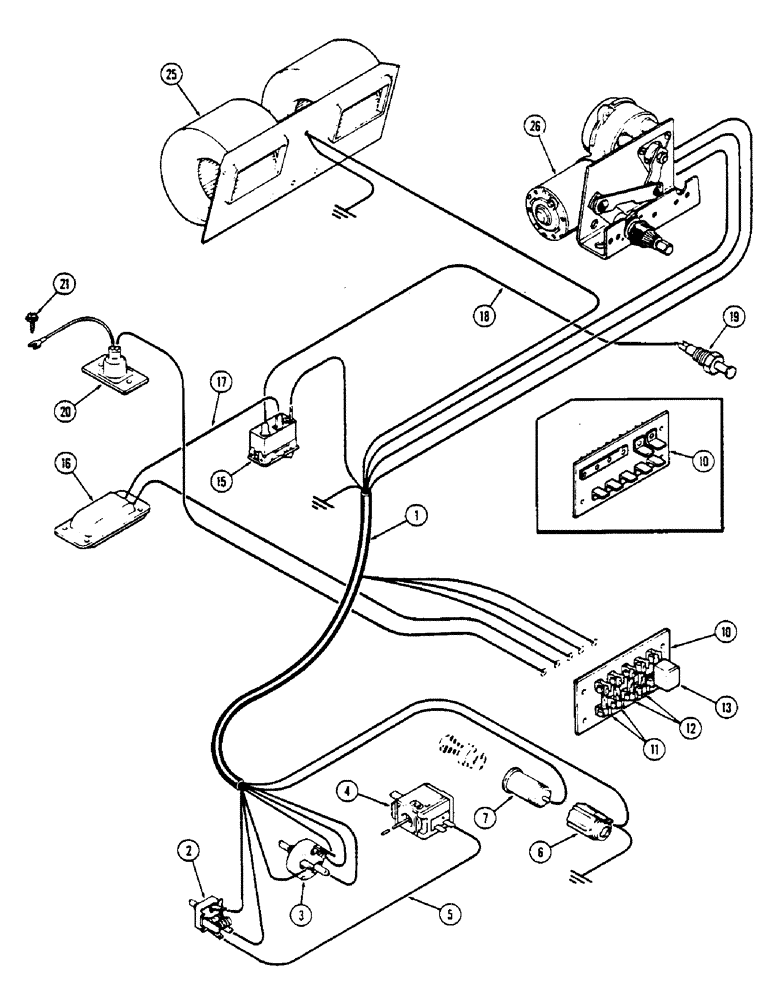

Запчасти Case IH 2670 (516) - CAB, MAIN WIRING HARNESS, FIRST USED CAB SERIAL NUMBER 7864002 (09) - CHASSIS/ATTACHMENTS

1

F98110

HARNESS

ASSY - main wiring

1шт.

2

REF

INSTRUCTION

SWITCH - blower motor (See Figure 510)

1шт.

3

REF

INSTRUCTION

SWITCH - wiper motor (See Figure 510)

1шт.

4

REF

INSTRUCTION

SWITCH - cab temperature (See Figure 510)

1шт.

5

A42624

ELECTRICAL WIRE

WIRE Temp. switch to blower switch, 6" black (152.44 mm)

1шт.

6

REF

INSTRUCTION

SHELL - lighter socket (See Figure 510)

1шт.

7

REF

INSTRUCTION

SOCKET - lighter (See Figure 510)

1шт.

10

REF

INSTRUCTION

BLOCKET - fuse (See Figure 486)

1шт.

11

223-33

FUSE,1 Amp, Type 3AG

Lighter and console lamp

2шт.

12

223-15

FUSE,15 Amp, Type 3AG

Wiper and blower

2шт.

13

F64181

BREAKER

Circuit

1шт.

15

REF

INSTRUCTION

SWITCH - dome lamp (See Figure 486)

1шт.

16

REF

INSTRUCTION

LAMP - dome (See Figure 486)

1шт.

17

F64126

ELECTRICAL WIRE

WIRE Switch to dome lamp, 4" black (101.6 MM)

1шт.

18

F64127

ELECTRICAL WIRE

WIRE Door switch, 70" white (1778 MM)

1шт.

19

F63895

SWITCH

Door, dome lamp

1шт.

20

REF

INSTRUCTION

LAMP - console (See Figure 486)

1шт.

21

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

Phillips

1шт.

25

REF

INSTRUCTION

BLOWER ASSY - (See Figure 524)

1шт.

26

REF

INSTRUCTION

MOTOR - wiper (See Figure 520)

1шт.
