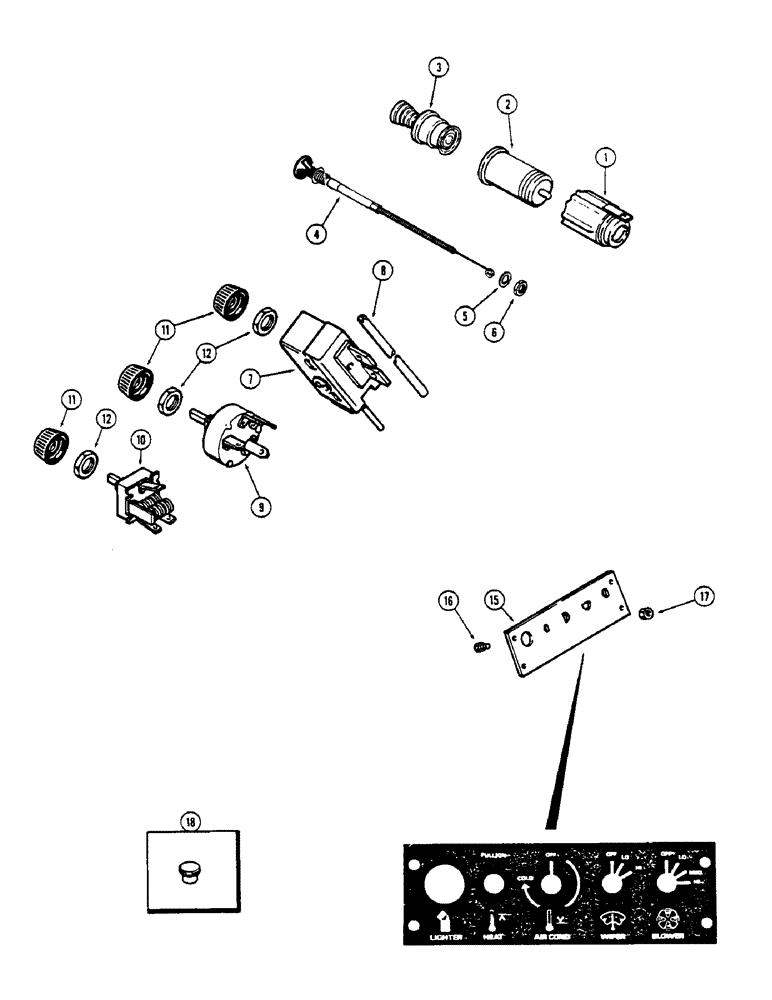

Запчасти Case IH 2670 (510) - CAB, CONTROLS AND PANEL, FIRST USED CAB SERIAL NUMBER 7864002 (09) - CHASSIS/ATTACHMENTS

1

F63738

CIGAR LIGHTER

SHELL - clamping, cigar lighter

1шт.

2

F63530

SOCKET/RECEPTACLE

SOCKET - lighter

1шт.

3

A143340

SWITCH

ELIMINATOR - push-in, lighter

1шт.

4

A42614

CABLE

ASSY. - heat control, Includes: Ref. 5 and 6

1шт.

5

92-6

LOCK WASHER,3/8"

1шт.

6

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

7

L73646

SWITCH

- control, temperature (Replaces F43186)

1шт.

8

F63719

TUBE

- shield, thermal, 1/8" I.D. x 8-1/2" (3.18 x 215.9 MM)

1шт.

9

F43359

SWITCH

- wiper motor

1шт.

10

F63866

SWITCH

- blower

1шт.

11

A42578

KNOB

- control switch

3шт.

12

AA42561

NUT - 7/16" N.F. jam, switch mounting

3шт.

15

F63875

PANEL

- control

1шт.

16

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

- #10-24 x 1/2" pan. hd.

4шт.

17

131-861

SPRING NUT,Tinn, U, #10-24

4шт.

13

353-402

PLUG,Dome, .375" hole, Nylon

1шт.
