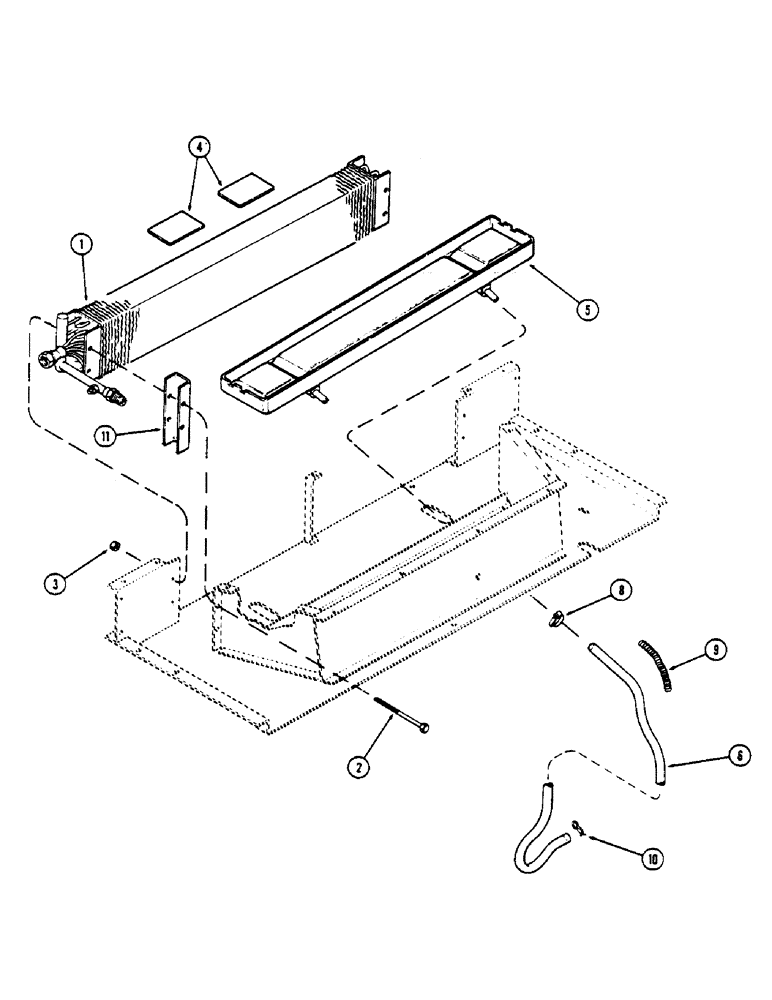

Запчасти Case IH 2670 (504) - CAB, PLENUM WITH AIR CONDITIONER, USED BEFORE CAB SERIAL NUMBER 7864002 (09) - CHASSIS/ATTACHMENTS

1

F63646

EVAPORATOR

- air conditioner evaporation

1шт.

2

113-45

BOLT,Hex, 1/4" - 20 x 5", Gr 5

- 1/4 x 5" N.C. hex., grade 5

4шт.

3

86625061

NUT,1/4"-20, GB

NUT - lock, 1/4"

4шт.

4

345-38

TAPE - 7-1/2" long, (190.5 MM), Serial Range: (Cut-size)

2шт.

5

F63750

PAN

- condensation

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - drain, 75" long (1905 MM) (Order A42698)

2шт.

A42698

HOSE

- 1/2" I.D. x 5/8" O.D. (50 ft. roll, Serial Range: cut-length)

1шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" to 1-1/16" (12.2875 to 26.9875 MM)

2шт.

9

F63327

SPRING

- upper, drain hose

2шт.

10

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

PIN - internal hair, 1-1/8" lg

2шт.

11

F63747

RADIATOR

FILLER - plenum, R.H. and L.H.

2шт.
