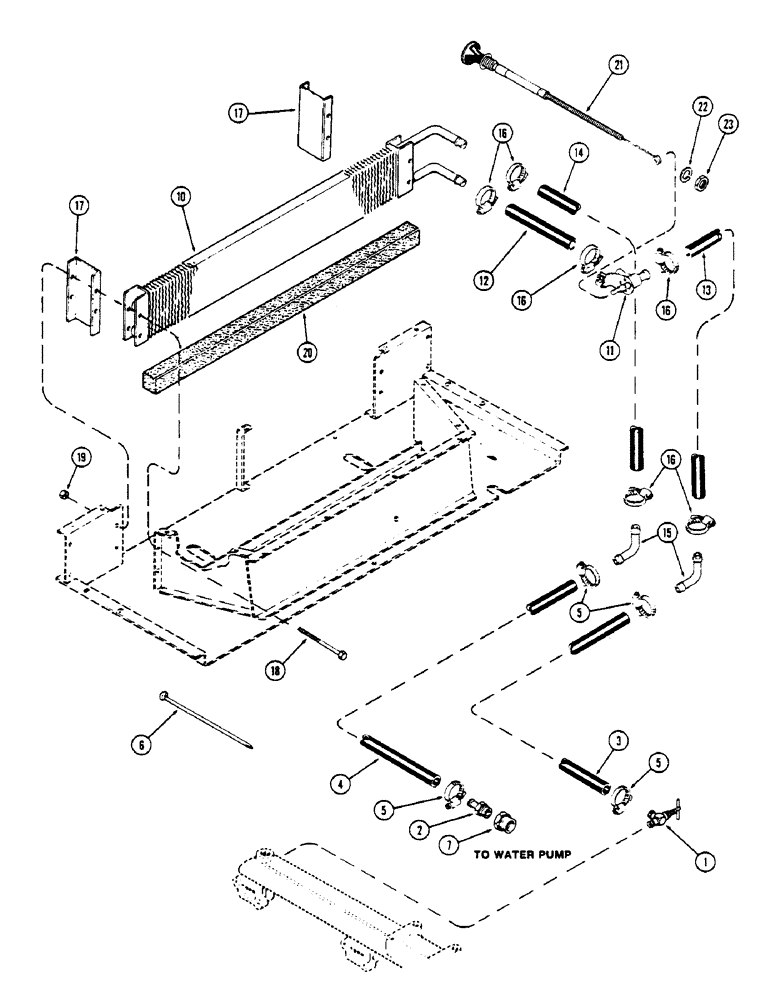

Запчасти Case IH 2670 (500) - CAB, PLENUM WITH HEATER, USED BEFORE CAB SERIAL NUMBER 7864002 (09) - CHASSIS/ATTACHMENTS

A138299

HEATER - attaching parts (Mach. item), Includes: Ref. 1 - 6

1шт.

1

A16764

VALVE

- water manifold

1шт.

2

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose to water pump, 5/8" hose x 1/2" P.T.

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - manifold to heater (Red 52") (1320.8 MM) (Order A42610)

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - heater to water pump (Black 75") (1905 MM) (Order A42610)

1шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" to 1-1/16" (14.2875 to 26.9875 MM)

4шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - hose (Replaces L11541)

1шт.

A42610

LARGE HOSE

HOSE - 5/8" I.D. x 1" O.D. (50 ft. roll, Serial Range: cut-length)

1шт.

7

221-1060

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducer, 3/4 x 1/2" (19.05 x 12.7 MM)

1шт.

F89881

HEATER - field kit (Mach. item), Includes: Ref. 10 - 23

1шт.

10

F63647

CORE

- heater

1шт.

11

F63865

VALVE

- heater

1шт.

12

NSS

NOT SOLD SEPARAT

HOSE - core to valve (Red 6-3/4") (171.45 MM) (Order A42610)

1шт.

13

NSS

NOT SOLD SEPARAT

HOSE - valve inlet (Red 69-1/2") (1765.3 MM) (Order A42610)

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE - heater outlet (Black 75-1/2") (1917.7 MM) (Order A42610)

1шт.

15

A60823

ELBOW

- hose

2шт.

16

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16" (14.2875 to 26.9875 MM)

6шт.

17

F63748

BRACKET

FILLER - plenum

2шт.

18

113-45

BOLT,Hex, 1/4" - 20 x 5", Gr 5

- 1/4 x 5" N.C. hex., grade 5

4шт.

19

86625061

NUT,1/4"-20, GB

NUT - lock, 1/4"

4шт.

20

F63756

FILLING STRIP

FILLER - foam, 1-1/2" sq. x 30" (38.1 x 762 MM)

1шт.

21

A42614

CABLE

ASSY. - heater control, Includes: Ref. 22 and 23

1шт.

22

92-6

LOCK WASHER,3/8"

1шт.

23

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

A42610

LARGE HOSE

HOSE - 5/8" I.D. x 1" O.D., 50 ft. roll cut to length (15.875 x 25.4 x 15240 MM)

1шт.
