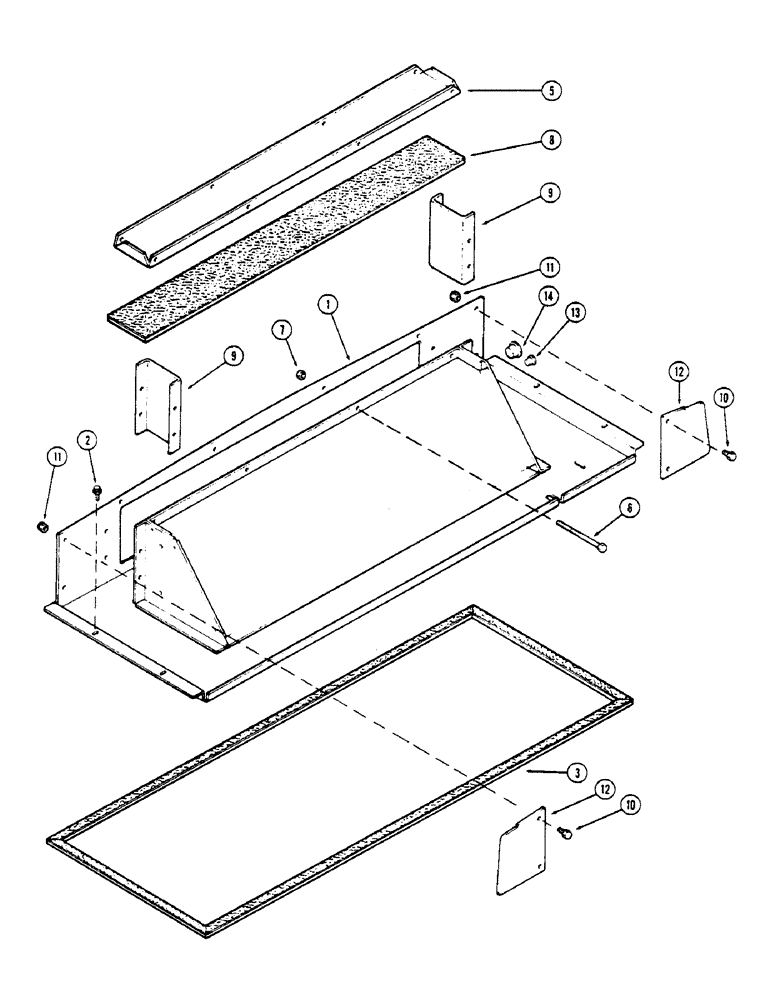

Запчасти Case IH 2670 (494) - CAB, PLENUM, FIRST USED CAB SERIAL NUMBER 7804002 (09) - CHASSIS/ATTACHMENTS

1

F89395

CHANNEL

DUCT - air

1шт.

2

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10-16 x 1/2" washer hd., self-tapping

4шт.

3

NSS

NOT SOLD SEPARAT

SEAL - duct floor, 111-1/2" (2832.1 MM) (Order F64119)

1шт.

F64119

SEALING STRIP

- seal (100 ft. roll), Serial Range: (Cut-length)

1шт.

5

F63841

COVER

- top, air duct

1шт.

6

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- 1/4 x 4" N.C. hex., grade 5

8шт.

7

86625061

NUT,1/4"-20, GB

NUT - 1/4" N.C. hex. lock

8шт.

8

F63671

SEAL

- top cover

1шт.

9

F63614

PLATE ASSY.

PLATE - filler, air duct side

2шт.

10

113-39

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

- 1/4 x 1/2" N.C. hex., grade 5

4шт.

11

86625061

NUT,1/4"-20, GB

NUT - 1/4" N.C. hex. lock

4шт.

12

F64013

PLATE ASSY.

PLATE - end, air duct (Without air cond.)

1шт.

13

353-3

PLUG,Cap, .302" OD

- plastic (5/16" hole) (Without heater)

4шт.

14

353-14

PLUG,Cap, .787" OD

- plastic (13/16" hole) (Without heater)

2шт.
