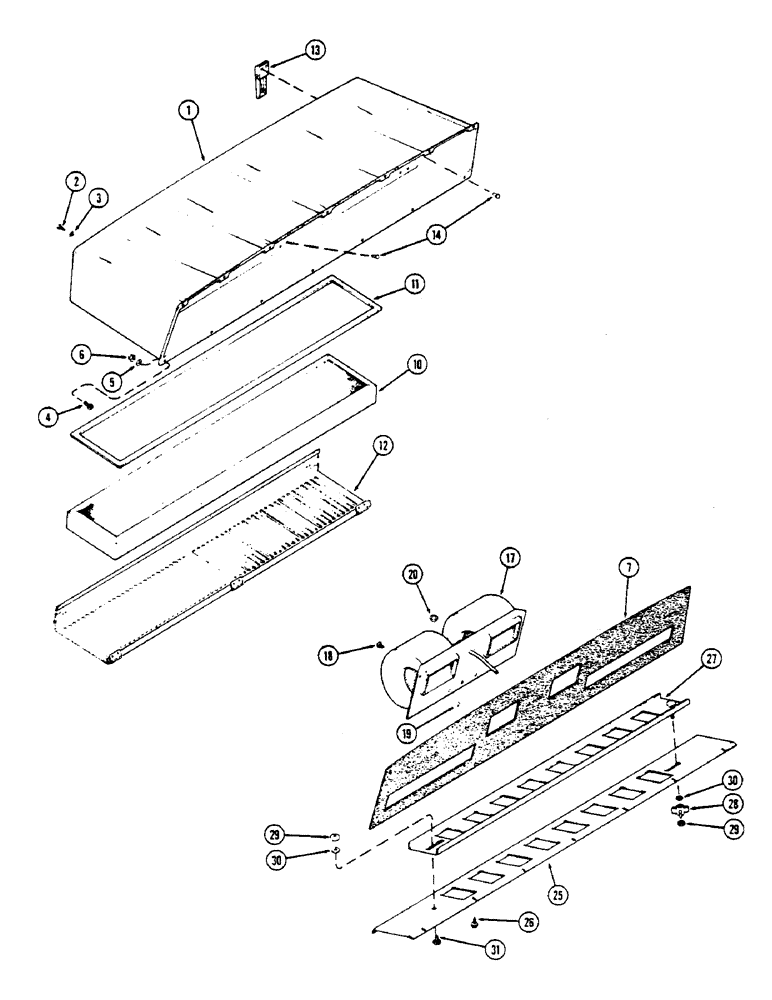

Запчасти Case IH 2670 (492) - CAB, AIR FILTER AND BLOWER, FIRST USED CAB SERIAL NUMBER 7864002 (09) - CHASSIS/ATTACHMENTS

1

F64058

FILTER

HOUSING - filter and blower

1шт.

2

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

Rd. hd

7шт.

3

F63765

WASHER

Finishing

7шт.

4

182-541

SCREW,Cross Pan Hd, #10-24 x 3/4"

Mach.

7шт.

5

195-513

WASHER,#10

WASHER - 7/32 x 1/2 x 3/64"

7шт.

6

86625057

NUT,#10-24, GB

7шт.

7

F63592

SEAL

, Serial Range: Housing-cab

1шт.

10

F64318

AIR FILTER

FILTER - cab air (Replaces F63679) (7" x 38" x 2.19")

1шт.

11

F64515

SEAL

Filter to housing (Used before cab S/N 12014850)

1шт.

11

F63669

SEAL

Filter to housing (Used after cab S/N 12014850)

1шт.

12

F89926

COVER

Filter

1шт.

13

F64066

LATCH

Filter cover

2шт.

14

151-547

SPARE PART 1/8"

10шт.

17

REF

INSTRUCTION

BLOWER ASSY (See Figure 524)

1шт.

18

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

2шт.

19

86625061

NUT,1/4"-20, GB

2шт.

20

353-700

BUSHING

Blower wire (3/8" hole)

1шт.

25

F64081

PLATE

Air circulating

1шт.

26

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

15шт.

27

F89947

SPARE PART DOOR - air circulating

1шт.

28

F63415

KNOB

Door

1шт.

29

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

2шт.

30

195-521

WASHER,5/16", SAE

WASHER - 11/32 x 11/16 x 1/16"

2шт.

31

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 5/16 x 3/4" N.C. rd. hd. sq. nk., grade 2

1шт.
