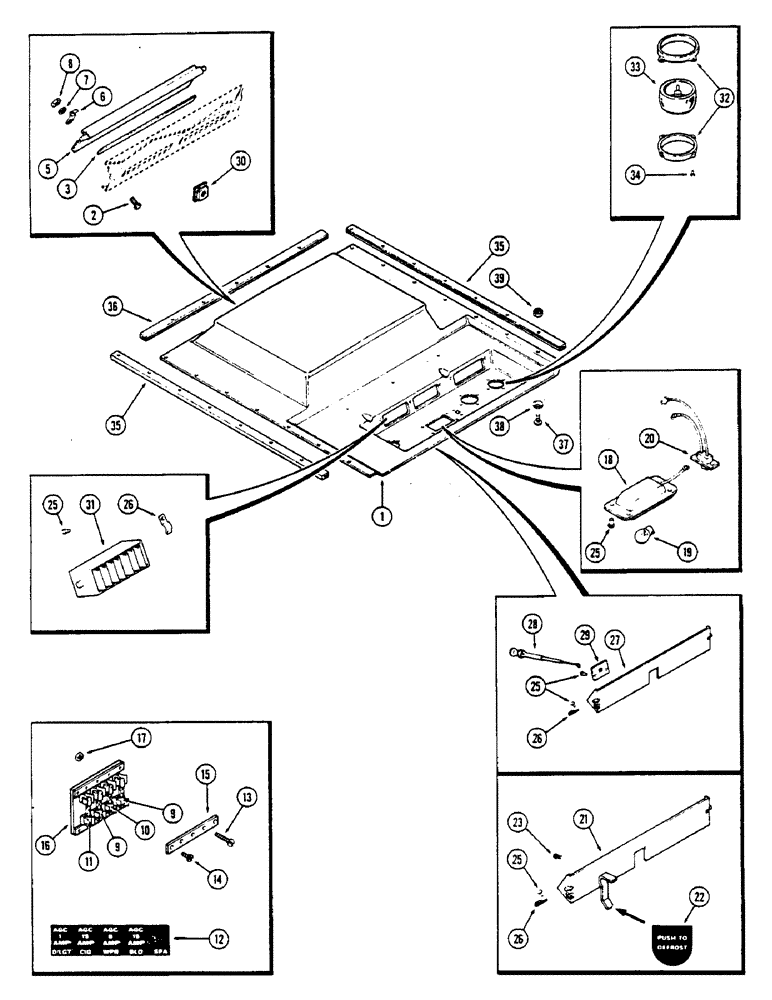

Запчасти Case IH 2670 (490) - CAB, HEADLINER AND LOUVERS, WITH SNAP-ON TYPE FUSE BLOCK TERMINALS (09) - CHASSIS/ATTACHMENTS

1

F63899

NO LONGER SERVICED

HEADLINER - cab

1шт.

2

163-11

SCREW,Hex, #10 - 24 x 9/16"

- machine (#10 x 9/16" N.C. hex.)

2шт.

3

NSS

NOT SOLD SEPARAT

SEAL - valve (Order A42905)

1шт.

A42905

FOAM

SEAL - foam (50 ft. roll, Serial Range: cut-length)

1шт.

5

F89764

FLAP

VALVE - pressure adjusting

1шт.

6

F63810

CLIP

- valve hinge

2шт.

7

195-511

WASHER,#10

- (13/64 x 15/32 x 3/64")

2шт.

8

86625057

NUT,#10-24, GB

NUT, LOCK, , Esna #10-24, GB

2шт.

9

223-15

FUSE,15 Amp, Type 3AG

- 15 amp. (Blower and cigar lighter)

2шт.

10

223-35

FUSE,8 Amp, Type 3AG

- 8 amp. (Wiper)

1шт.

11

223-33

FUSE,1 Amp, Type 3AG

- 1 amp (Dome light)

1шт.

12

321-2738

DECAL

- fuse block

1шт.

13

173-251

SCREW,Sl Rnd Hd, #6 - 32 x 3/4", Brass

- (#6-32 x 3/4" rd. hd.)

5шт.

14

182-533

SCREW,Sl Pan Hd, #6 - 32 x 1/4"

- brass (#6-32 x 1/4" pad hd.)

3шт.

15

F63512

BAR

- buss, fuse

1шт.

16

F64047

HOLDER

BLOCK - 5 pole fuse

1шт.

17

129-640

NUT,#6-32, Brass

- brass (#6-32 hex.)

10шт.

18

F63894

LAMP

ASSY. - dome, Includes: Ref. 19

1шт.

19

B50217

BULB

- dome lamp (#93)

1шт.

20

F63760

SWITCH

SWITH - dome lamp

1шт.

21

F89893

BRACKET

DOOR - defroster (Lever operated) (See F89925)

1шт.

22

321-2995

DECAL

-, Serial Range: push-defrost

1шт.

23

353-409

PLUG,Dome, .812" hole, Nylon

- cable hole, 13/16" dia. hole (20.64 MM)

1шт.

25

151-526

RIVET,Pop, 1/8" x .337"

14шт.

26

A42575

CLIP

- lower mounting

6шт.

27

F89925

BRACKET

DOOR - defroster (Cable operated) (See F89893)

1шт.

28

F63892

LEVER

CONTROL - defroster (Use with F89925)

1шт.

29

F63902

PLATE

PANEL - defroster door control

1шт.

30

131-861

SPRING NUT,Tinn, U, #10-24

1шт.

31

F89673

GUARD

LOUVER - air deflections

2шт.

32

F63776

FRAME

RETAINER - ball

6шт.

33

F63777

BALL

LOUVER - ball

3шт.

34

187-1085

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - (#8-15 x 5/8" rd. hd. self tap)

12шт.

35

F63800

MOLDING

TRIM - side, headliner

2шт.

36

F63799

MOLDING

TRIM - rear, headliner

1шт.

37

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - (#10-16 x 3/4" Phillips drive)

19шт.

38

F63765

WASHER

- finishing

19шт.

39

86625057

NUT,#10-24, GB

NUT, LOCK, , Esna #10-24, GB

1шт.
