(474) - CAB, WINDOWS, FIRST USED CAB SERIAL NUMBER 7864002

Запчасти Case IH 2670 (474) - CAB, WINDOWS, FIRST USED CAB SERIAL NUMBER 7864002 (09) - CHASSIS/ATTACHMENTS

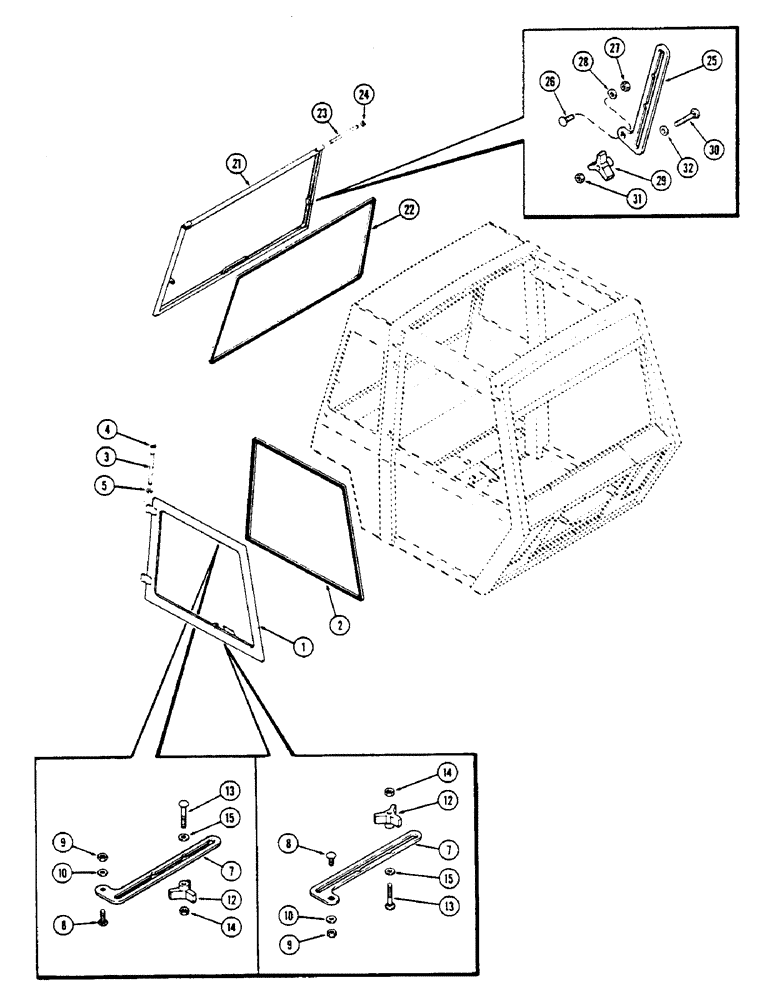

Схема запчастей Case IH 2670 - (474) - CAB, WINDOWS, FIRST USED CAB SERIAL NUMBER 7864002 (09) - CHASSIS/ATTACHMENTS
7
15
12
8
7
27
23
1
4
22
2
24
14
25
12
28
14
15
26
29
5
10
30
13
13
8
3
9
9
32
31
21
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

F89399

WINDOW

ASSY. - R.H. (Includes glass), Includes: Ref. 1 and 2

1шт.

Order glass from Figure 552.

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - R.H. window

1шт.

2

F64268

SEAL

- weather, 134" lg. (3403.6 MM) (Order F64403)

1шт.

3

F63729

PIN

- hinge, side window

2шт.

4

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

4шт.

5

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- thrust, hinge pin

2шт.

7

F64106

ARM

- regulator, window opening

2шт.

8

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

BOLT - 5/16 x 3/4" N.C. rd. hd. sq. nk., grade 2

2шт.

9

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" N.C. hex. lock

2шт.

10

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

2шт.

12

F63415

KNOB

- regulator

2шт.

13

111-263

BOLT - 5/16 x 1-3/4" N.C. rd. hd. sq. nk., grade 2 Short NK, 5/16"-18 x 1 3/4", G2

2шт.

14

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" N.C. hex. lock

2шт.

15

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

4шт.

F89773

WINDOW ASSY. - rear (Includes glass), Includes: Ref. 21 and 22

1шт.

Order glass from Figure 552.

1шт.

21

NSS

NOT SOLD SEPARAT

FRAME - rear window

1шт.

22

NSS

NOT SOLD SEPARAT

STRIP - weather (154-1/2" lg.) (3924.3 MM) (Order F64499)

1шт.

F64499

SEAL

STRIP - weather (50 ft. roll cut to length) (Replaces F64141)

1шт.

23

A42524

PIN,9.53mm OD x 119.38mm L

- hinge, rear window

2шт.

24

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

4шт.

25

F64106

ARM

- regulator, window opening

2шт.

26

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

BOLT - 5/16 x 3/4" N.C. rd. hd. sq. nk., grade 2

2шт.

27

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" N.C. hex. lock

2шт.

28

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

2шт.

29

F63415

KNOB

- regulator

2шт.

30

111-263

BOLT - 5/16 x 1-3/4" N.C. rd. hd. sq. nk., grade 2 Short NK, 5/16"-18 x 1 3/4", G2

2шт.

31

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" N.C. hex. lock

2шт.

32

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

4шт.
