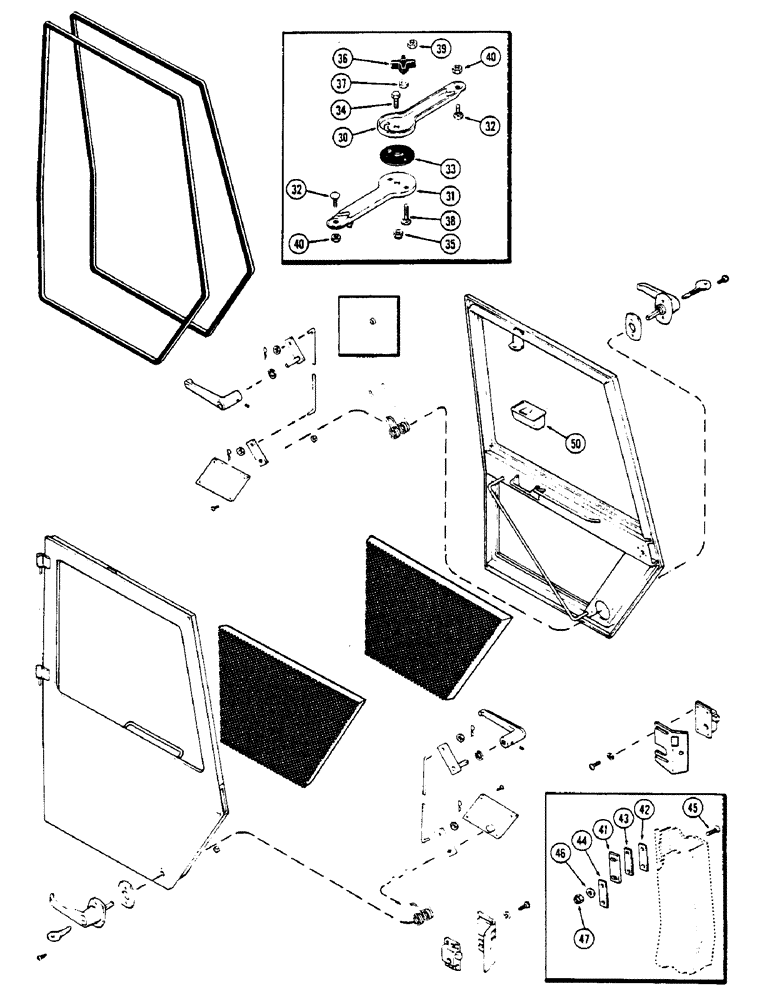

Запчасти Case IH 2670 (468) - CAB, DOORS, USED BEFORE CAB SERIAL NUMBER 7864002 (CONT) (09) - CHASSIS/ATTACHMENTS

30

F63989

ARM

- upper, door holder, 10-3/4" lg. (273.05 MM)

2шт.

31

F89385

ARM

- lower, door holder, 10-3/4" lg. (273.05 MM)

2шт.

32

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8 x 3/4" N.C. rd. hd. sq. nk., grade 2

4шт.

33

F63405

DISC

- friction, door arm

2шт.

34

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

35

231-1445

NUT,5/16"-18, GB

NUT - lock, 5/16" N.C.

2шт.

36

F63415

KNOB

- adjusting, door arm

2шт.

37

F63586

BUSHING

SPACER - arm

2шт.

38

111-261

CARRIAGE BOLT,Short NK, 5/16"-18 x 2", G2

BOLT - 5/16 x 2" N.C. rd. hd. sq. nk., grade 2

4шт.

39

131-1117

LOCK NUT,5/16"-18, GA

NUT - lock, 5/16" N.C.

4шт.

40

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - (3/8" N.C. Crownlock)

4шт.

41

F63783

CATCH

- door

1шт.

42

F63785

SHIM

- door catch (14 ga.)

1шт.

43

F63784

SHIM

- door catch (12 ga.) (Order F63785)

1шт.

44

F63786

SHIM

- door catch (20 ga.)

1шт.

45

171-248

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

- (1/4 x 1" N.C. Phillips flat hd.)

2шт.

46

195-102

WASHER,1/4"

- (5/16 x 3/4 x 1/16")

2шт.

47

86625061

NUT,1/4"-20, GB

NUT - lock (1/4" N.C. ESNA)

2шт.

50

F63395

TRAY

ASH TRAY

1шт.
