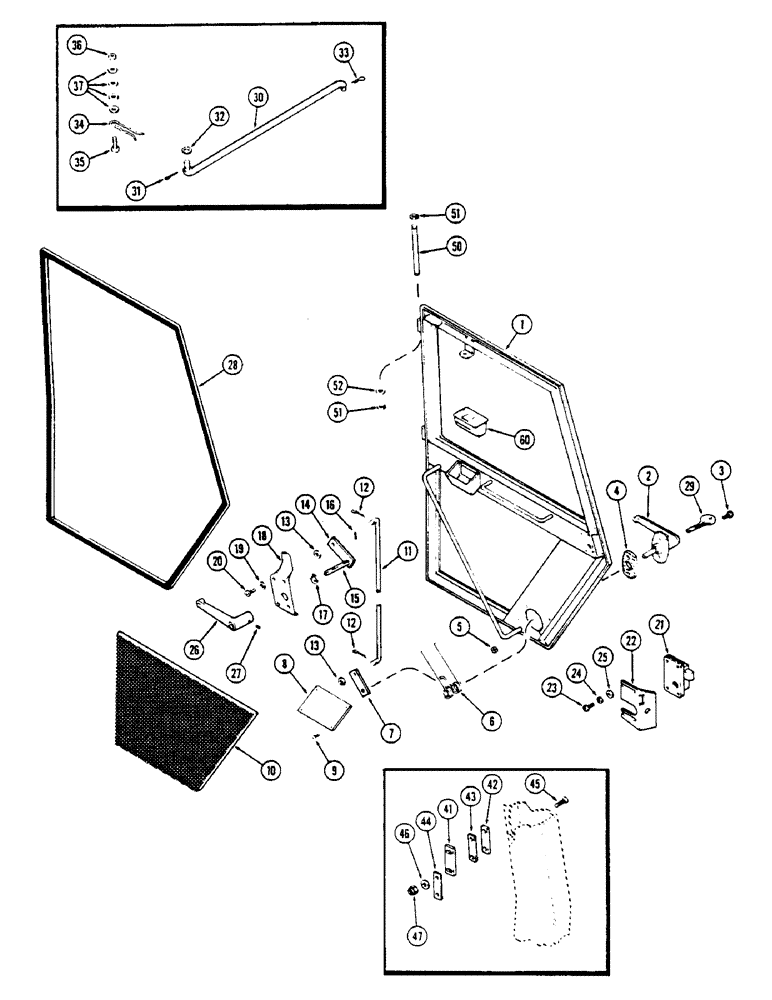

Запчасти Case IH 2670 (462) - CAB, DOOR AND LATCH, FIRST USED CAB SERIAL NUMBER 7864002 (09) - CHASSIS/ATTACHMENTS

F98184

DOOR

ASSY. - complete (Includes glass) (Replaces F89771), Includes: Ref. 1 - 28

1шт.

Order glass from Figure 552.

1шт.

1

NSS

NOT SOLD SEPARAT

DOOR

1шт.

2

F63966

DOOR

HANDLE - outer

1шт.

3

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

- #10-24 x 5/8" Phillips hd

2шт.

4

F63860

GASKET

- handle

1шт.

5

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

6

F64431

SPRING

- latch arm (Replaces F15243)

1шт.

7

F63739

ARM

- door latch

1шт.

8

F89397

COVER

PLATE - access, door latch

1шт.

9

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- #10 x 1/2 self tapping

4шт.

10

F63565

PADDING

- door

1шт.

11

F63551

ROD

- pull, door latch

1шт.

12

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

13

195-518

WASHER,1/4", SAE

- 9/32 x 5/8 x 5/64"

2шт.

14

F63739

ARM

- stub shaft

1шт.

15

F64297

SHAFT

- stub

1шт.

16

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

17

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16"

1шт.

18

F64260

PLATE

- door

1шт.

19

195-513

WASHER,#10

- 7/32 x 1/2 x 3/64"

4шт.

20

182-557

SCREW,Cross Pan Hd, #10-32 x 3/4"

- #10-24 x 3/4" pan hd.

4шт.

21

F98123

LATCH

- door

1шт.

22

F63658

COVER

- door latch

1шт.

23

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- #10-32 x 1/2" rd. hd., mach

4шт.

24

195-513

WASHER,#10

- 7/32 x 1/2 x 3/64"

4шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

26

F63925

HANDLE

- inner, door latch, Includes: Ref. 27

1шт.

27

176-49

SCREW - set, 5/16 x 5/16" N.C. sltd. hd. cone pt

1шт.

28

F64267

DOOR SEAL

STRIP - weather, door frame, 181" (4597.4 MM)

1шт.

29

A77313

SET OF 2 KEYS

KEY - door lock (Set of 2) (Ignition key)

1шт.

30

F63930

ROD

- door holder

1шт.

31

132-333

COTTER PIN,1/8" x 5/8"

PIN - cotter, 3/32 x 5/8"

1шт.

32

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16"

1шт.

33

136-158

COTTER PIN,Int, 9/64" x .054"

PIN -1/16 x 9/64" hair

1шт.

34

F64470

COTTER PIN

- hair, rod lock (Replaces F63933)

1шт.

35

182-534

SCREW,Sl Pan Hd, 1/4" - 20 x 1"

- 1/4 x 1" NC round head

1шт.

36

86625061

NUT,1/4"-20, GB

NUT - 1/4 NC hex lock

1шт.

37

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

5шт.

41

F63783

CATCH

- door

1шт.

42

F63786

SHIM

- door catch, 3/64" (1.1906 MM)

1шт.

43

F63784

SHIM

- door catch, 7/64" (2.7781 MM) (Order F63785)

1шт.

44

F63785

SHIM

- door catch, 5/64" (1.9844 MM)

1шт.

45

171-248

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

- 1/4 x 1" N.C. flat head

2шт.

46

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

2шт.

47

86625061

NUT,1/4"-20, GB

NUT - 1/4" N.C. hex. lock

2шт.

50

F63729

PIN

- door hinge

2шт.

51

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

4шт.

52

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- thrust, hinge pin

2шт.

60

F63395

TRAY

ASH TRAY

1шт.
