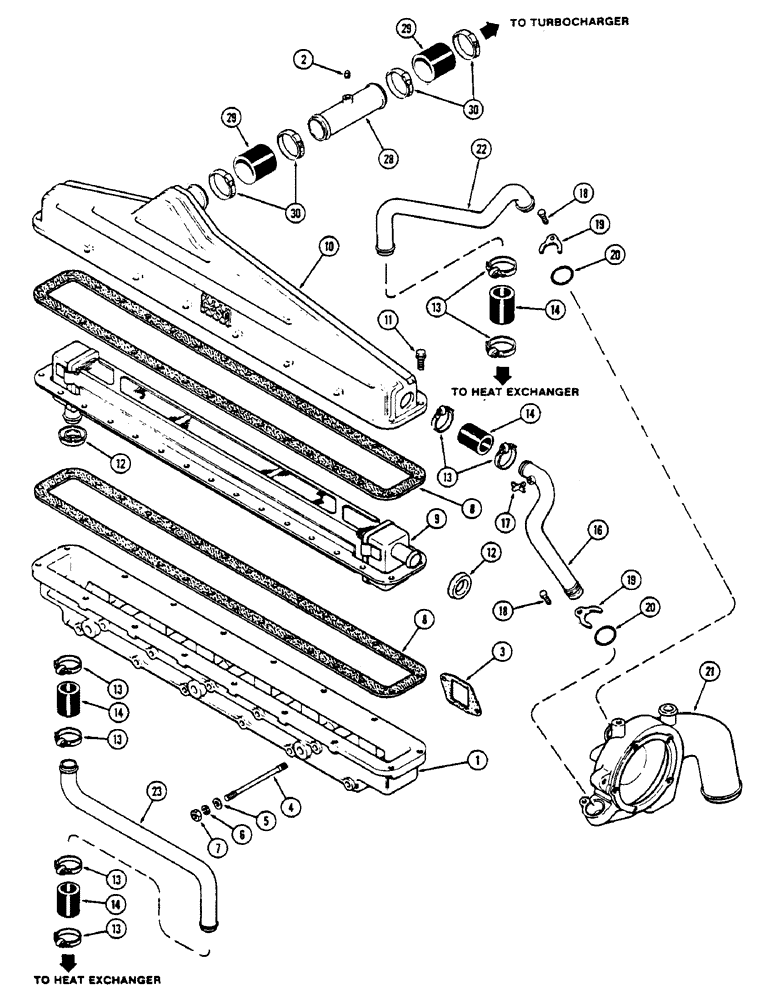

Запчасти Case IH 2670 (026) - INTAKE MANIFOLD AND INTERCOOLER, 504BDT INTERCOOLED DIESEL ENGINE, FIRST USED ENG. S/N 10018831 (02) - ENGINE

1

A144300

TUBE

MANIFOLD - intake, intercooler, lower

1шт.

2

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, 1/8" sq. hd.

1шт.

3

A58662

MANIFOLD GASKET

- intake manifold

6шт.

4

A144593

STUD

- 3/8" N.C. x 6-13/16"

11шт.

4

A59077

STUD

- 3/8" N.C. x 1-13/16" (Rear most position)

1шт.

5

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

12шт.

6

92-6

LOCK WASHER,3/8"

12шт.

7

25-166

NUT,3/8"-16, G5, Hvy

- 3/8" N.C. hex

12шт.

8

A76663

GASKET

- intercooler housing

2шт.

Part of Gasket Kit, P/N A44078

1шт.

9

A76661

CORE

- intercooler

1шт.

10

A144052

MANIFOLD

- intake, intercooler upper

1шт.

11

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - 3/8 x 1-1/2" hex Sems

16шт.

12

A76662

SEAL

- manifold

2шт.

Part of Gasket Kit, P/N A44078

1шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

8шт.

14

A58640

HOSE

- by-pass, 1-1/4" I.D. x 2-1/4" long

4шт.

16

A144544

TUBE

- water, Serial Range: pump-intercooler

1шт.

17

217-81

VALVE

- drain cock

1шт.

18

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

19

A76666

CLAMP

- retainer, tube O-ring

2шт.

20

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- 1-1/8 x 1-3/8 x 1/8"

2шт.

Part of Gasket Kit, P/N A44078

1шт.

21

REF

INSTRUCTION

BODY ASSY. - water pump (See Figure 10)

1шт.

22

A76664

PIPE

TUBE - heat exchanger to water pump

1шт.

23

A144426

TUBE

- intercooler to heat exchanger

1шт.

28

A144406

TUBE

-, Serial Range: intercooler-turbocharger

1шт.

29

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

- Tube to intercooler and turbocharger (Replaces A58894) 2.00" ID x 2.88"

2шт.

30

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

A44078

GASKET

KIT - gasket, intercooler, Includes: Ref. 8, 12 and 20

1шт.
