Запчасти Case IH 2670 (454) - CAB, MOUNTING, FIRST USED CAB SERIAL NUMBER 7864002 (09) - CHASSIS/ATTACHMENTS

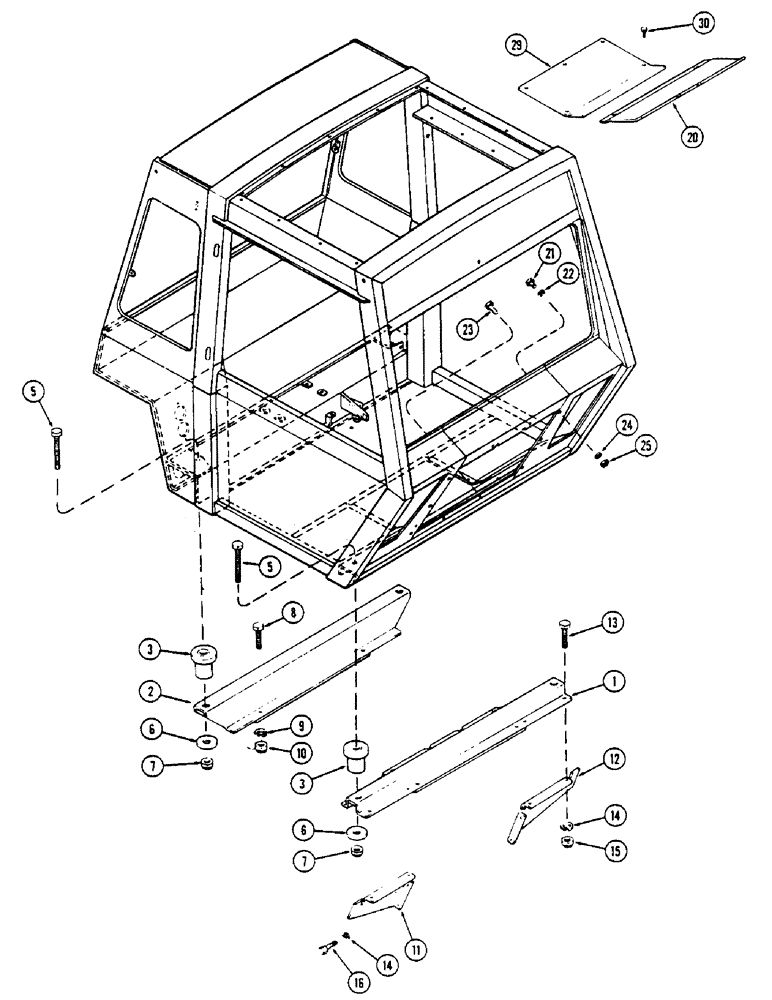

Схема запчастей Case IH 2670 - (454) - CAB, MOUNTING, FIRST USED CAB SERIAL NUMBER 7864002 (09) - CHASSIS/ATTACHMENTS
20
7
16
3
13
14
7
12
2
5
11
14
9
22
30
21
1
24
25
23
15
6
10
8
6
29
5
3

Артикул

Название

Примечание

Количество

1

F89768

CHANNEL

- front, cab mounting

1шт.

2

F89767

CHANNEL

- rear, cab mounting

1шт.

3

A140221

MOUNTING PARTS

MOUNT - rubber, cab to channel (Replaces A59516)

4шт.

5

114-626

BOLT,Hex, 5/8" - 18 x 3-1/2", Gr 5

4шт.

6

A27903

WASHER

- 21/32 x 2-1/8 x 3/8"

4шт.

7

131-60

LOCK NUT,5/8"-18

NUT - 5/8" N.F. hex lock

4шт.

8

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

9

192-215

LOCK WASHER,5/8"

5/8"

8шт.

10

129-567

NUT

- 5/8" N.C. hex

8шт.

11

F63573

GUSSET

- front channel to R.H. frame

1шт.

12

F63572

GUSSET

- front channel to L.H. frame

1шт.

13

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

16

187-1305

SELF-TAP SCREW,Hex, 3/8" - 18 x 1 1/4"

SCREW - 3/8 x 1-1/4" hex hd. self-tapping

4шт.

20

F89769

DOOR

- lower, instrument console

1шт.

21

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

23

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

29

F63508

DOOR

- access, cab floor

1шт.

30

187-1073

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 5/8"

SCREW - 1/4 x 5/8" hex hd., self-tapping

5шт.

Выбрано товаров: 24
