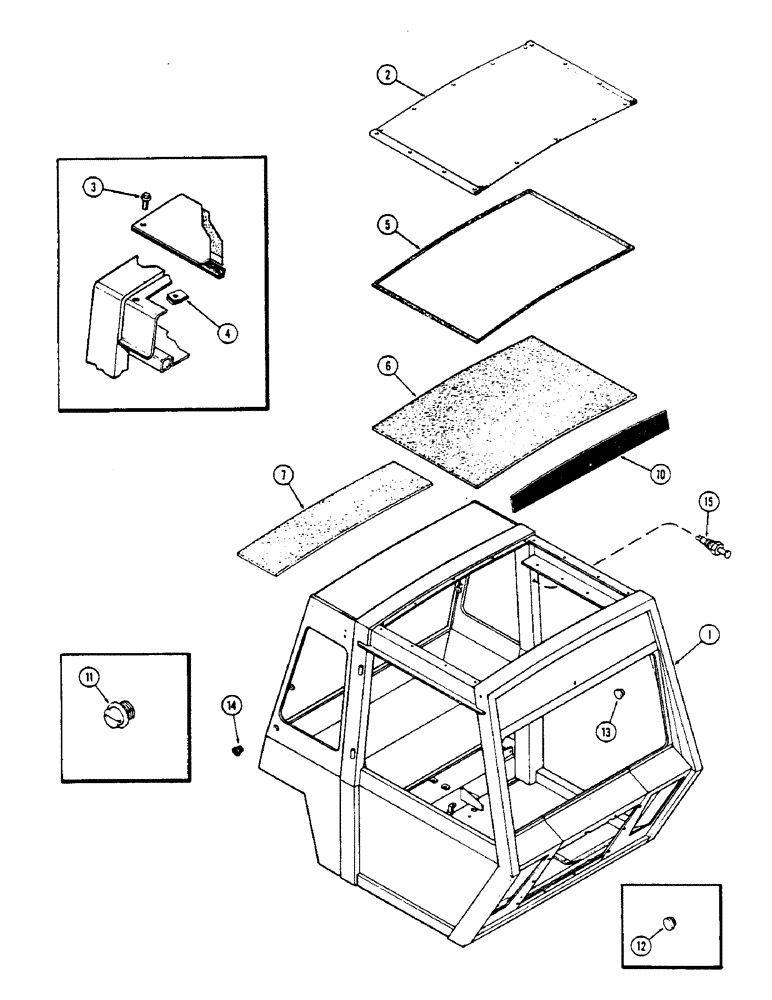

Запчасти Case IH 2670 (450) - CAB, FRAME AND ROOF, FIRST USED CAB SERIAL NUMBER 7864002 (09) - CHASSIS/ATTACHMENTS

F98317

SHELL

CAB - with heater (Mach. item) (replaces F98099)

1шт.

F98317

SHELL

CAB - with air conditioner (Mach. item) (replaces F98100)

1шт.

F98317

SHELL

CAB - with heater and air cond. (Mach. item) (replaces F98101)

1шт.

F98317

SHELL

CAB - with heater and radio (Mach. item) (replaces F98103)

1шт.

F98317

SHELL

CAB - with air cond. and radio (Mach item) (replaces F98104)

1шт.

F98317

SHELL

CAB - with heater, air cond. and radio (Mach. item) (replaces F98105)

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSY. - cab

1шт.

2

F63644

PANEL

ROOF - cab

1шт.

3

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- 1/4 x 3/4" N.C. hex, washer hd.

18шт.

4

131-617

NUT,Ret, J, 1/4"-20

- 1/4" type J Tinnerman speed

18шт.

5

NSS

NOT SOLD SEPARAT

SEAL - roof (Order A42676)

1шт.

A42676

SEAL

- 1/4 x 3/8" x 25 ft. roll (6.35 x 9.52 x 7620 MM), Serial Range: (Cut-length)

1шт.

6

F64430

FOAM

- rear, temperature barrier (Replaces F63722)

1шт.

7

F63352

FOAM

- rear, temperature barrier

1шт.

10

A42582

DECAL

- front upper panel

1шт.

11

353-550

PLUG,Slotted, 1/2"-13

Plastic, Lifting holes Slotted, 1/2"-13

4шт.

12

353-411

PLUG,Dome, 1.000" hole, Nylon

Push type, Fender mounting hole Dome, 1.000" hole, Nylon

4шт.

13

353-408

PLUG,Dome, .750" hole, Nylon

- 3/4" push type, front post withour air cond.

2шт.

14

A143860

PLUG - R.H. side, antenna opening (Without radio)

1шт.

15

F63895

SWITCH

- dome light, door opening

1шт.
