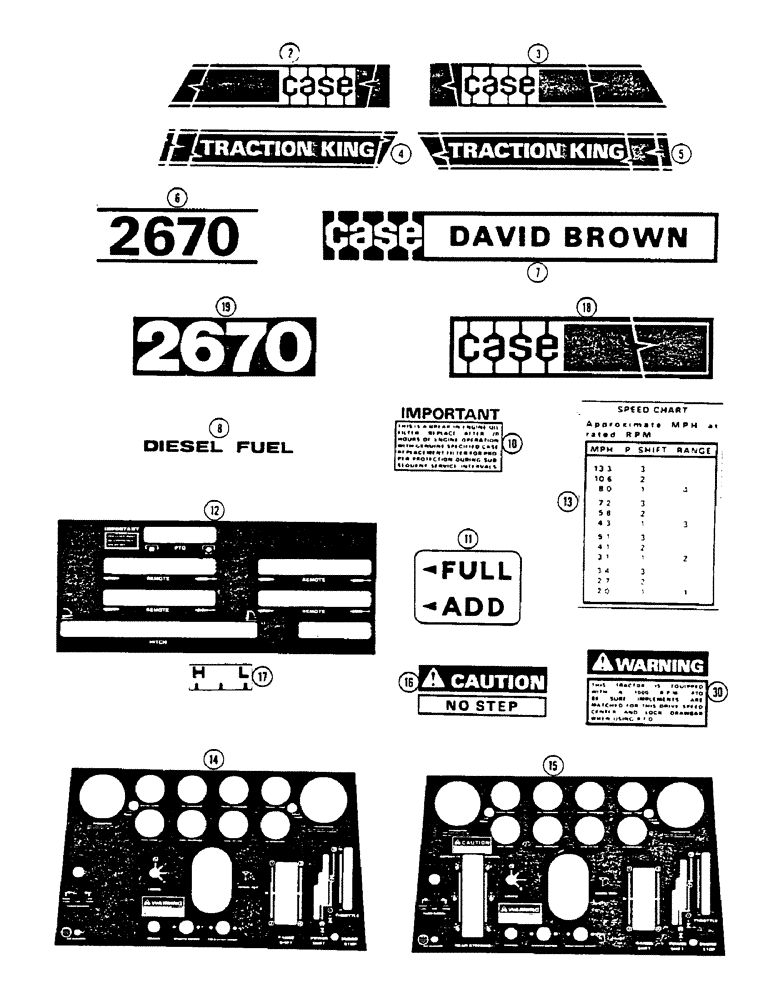

Запчасти Case IH 2670 (446) - DECALS (09) - CHASSIS/ATTACHMENTS

1

A46004

DECAL

KIT - tractor, complete, Includes: Ref. 2 - 19

1шт.

2

321-2682

DECAL

- Case, hood strip R.H.

1шт.

3

321-2683

DECAL

- Case, hood strip L.H.

1шт.

4

321-3416

DECAL

- Traction King, R.H.

1шт.

5

321-3415

DECAL

- Traction King, L.H.

1шт.

6

321-2686

DECAL

- 2670

2шт.

Ref 6 & 19 - Not part of decal Kit A46004

1шт.

7

321-2565

DECAL

- Case - David Brown (Export only)

2шт.

8

321-230

DECAL

- diesel fuel, tank filler

2шт.

10

321-3863

DECAL

- important, engine oil filter (Replaces 321-2101)

2шт.

11

321-2470

DECAL

- oil level, transmission

1шт.

12

321-2647

DECAL

- console top

1шт.

13

321-2652

DECAL

- speed chart

1шт.

14

321-3716

DECAL

- instrument panel, without rear steer

1шт.

See Figures 410 and 412

1шт.

15

321-3717

DECAL

- instrument panel, with rear steer

1шт.

See Figures 410 and 412

1шт.

16

321-3292

DECAL

- caution - no step (On rear cap)

2шт.

17

321-1335

DECAL

- seat adjustment indicator

1шт.

18

321-3407

DECAL

- Case, rear of cab

1шт.

19

321-4338

DECAL

- 2670, rear of cab

1шт.

Ref 6 & 19 - Not part of decal Kit A46004

1шт.

A143220

DECAL

KIT - safety decals (See Figure 448)

1шт.
