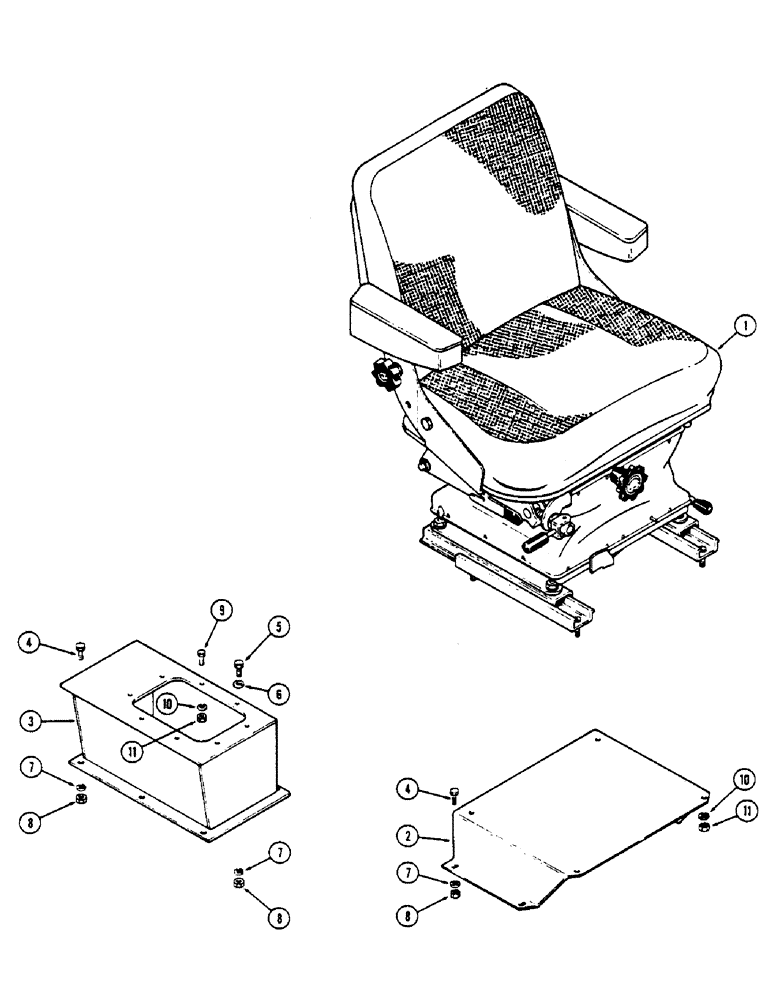

Запчасти Case IH 2670 (438) - SEAT CONVERSION ATTACHMENT, STANDARD SEAT TO DELUXE SWIVEL SEAT (09) - CHASSIS/ATTACHMENTS

A77264

ATTACHMENT - seat conversion (Mach. item), Includes: Ref. 1 - 11

1шт.

1

A139917

SEAT

- deluxe cloth swivel (See Figure 434)

1шт.

2

A139934

BRACKET - seat support adapter

1шт.

3

A139935

SUPPORT - console

1шт.

4

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

9шт.

5

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

6

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64"

1шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

10шт.

9

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

12шт.

11

9635082

NUT,5/16" - 18, Gr 5

12шт.
