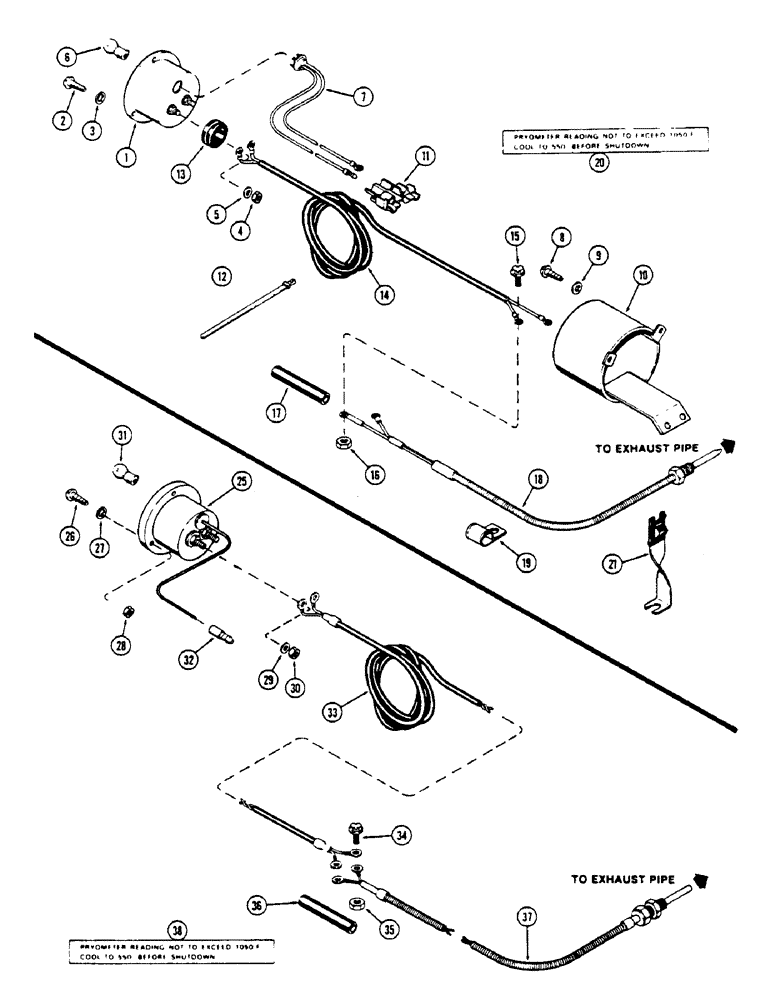

Запчасти Case IH 2670 (024) - ENGINE EXHAUST PYROMETER, FIRST USED TRACTOR SERIAL NUMBER 8767844 (02) - ENGINE

A139032

KIT

- pyrometer engine exhaust, Includes: Ref. 1 - 20

1шт.

1

A139021

ELECTRICAL GAUGE

PYROMETER - engine exhaust

1шт.

2

187-1104

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - #6-32 x 3/4" self tapping

3шт.

3

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

4

129-27

NUT,Hex, #10 - 32

- hex #10-32

2шт.

5

195-12

WASHER,#10

- 7/32 x 7/16 x 1/32"

2шт.

6

B50213

BULB

- #53

1шт.

7

A139030

SOCKET/RECEPTACLE

SOCKET - lamp

1шт.

8

187-1109

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - #8-32 x 1/2" self tapping

4шт.

9

195-510

WASHER,#8

- 3/16 x 7/16"

4шт.

10

A139453

TUBE

- pyrometer mounting

1шт.

11

A62556

CONNECTOR, ELEC

CONNECTOR - pyrometer light

1шт.

12

A160890

STRAP

- wire harness (Replaces L11541)

1шт.

13

A27338

GROMMET

- pyrometer wire harness

1шт.

14

A139025

HARNESS

- wire, Serial Range: meter-thermocoupler

1шт.

15

175-93

SCREW,Sl Truss Hd, #10 - 24 x 1/4"

- #10-24 x 1/4" truss head

2шт.

16

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

2шт.

17

A139029

BOOT

- connection

1шт.

18

A139024

PROBE

THERMOCOUPLE - pyrometer

1шт.

19

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - pyrometer lead wire

2шт.

20

321-1778

DECAL

- operating temperature

1шт.

21

A145858

BRACKET

- thermocouple cable

1шт.

25

A76278

ELECTRICAL GAUGE

PYROMETER - engine exhaust (Order A139032), used before tractor s/n 8767844

1шт.

26

173-249

SCREW

- #6-32 x 3/4" round head, used before tractor s/n 8767844

3шт.

27

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, , Used before tractor S/N 8767844 #6

3шт.

28

129-15

NUT,#6-32

Used before tractor S/N 8767844 #6-32

3шт.

29

195-15

WASHER,#12

- 1/4 x 1/2 x 3/64", used before tractor s/n 8767844

2шт.

30

129-502

NUT,1/4"-28, Brass

Used before tractor S/N 8767844 1/4"-28, Brass

2шт.

31

T29381

BULB

- lamp, #1816, used before tractor s/n 8767844

1шт.

32

L10051

TERMINAL CONNECTOR,Male

TERMINAL - light wire, used before tractor s/n 8767844

1шт.

33

L39218

HARNESS - wire (Order A139032), used before tractor s/n 8767844

1шт.

34

175-57

SCREW,Sl Truss Hd, #6 - 32 x 1/4"

- #6-32 x 1/4" truss head, used before tractor s/n 8767844

2шт.

35

131-150

LOCK NUT,#6-32, GA

NUT, LOCK, , Used before tractor S/N 8767844 #6-32, GA

2шт.

36

T39219

BOOT

- thermocouple connector, used before tractor s/n 8767844

1шт.

37

T39217

ELECTRICAL WIRE

THERMOCOUPLE - pyrometer (Order A139032), used before tractor s/n 8767844

1шт.

38

321-1778

DECAL

- operating temperature, used before tractor s/n 8767844

1шт.
