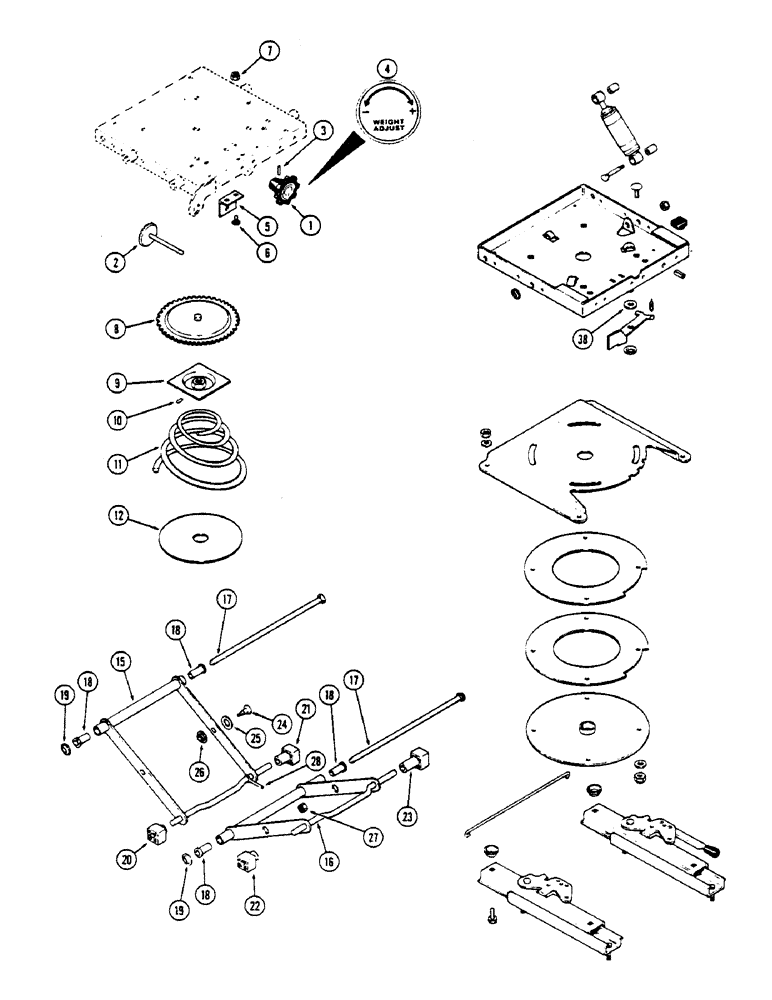

Запчасти Case IH 2670 (434) - SWIVEL SEAT ASSEMBLY, FIRST USED TRACTOR SERIAL NUMBER 8792901 (09) - CHASSIS/ATTACHMENTS

1

A139917

SEAT

AND SUSPENSION ASSY. - (15 degree swivel), Includes: Ref. 1 - 28

1шт.

1

A45508

BUTTON

KNOB - weight adjustment

1шт.

2

A45513

GEAR

SHAFT AND GEAR ASSY. - weight adjusting

1шт.

3

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

4

A45511

DECAL

- weight adj. knob

1шт.

5

NSS

NOT SOLD SEPARAT

BRACKET - adj. shaft

1шт.

6

411-48

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT - 1/4 x 1/2" N.C. round hd. sq. nk., grade 2

2шт.

7

131-2

NUT,1/4"-20, GB

NUT - jam (1/4" N.C. hex)

2шт.

8

A45505

GEAR

ASSY. - height adjusting

1шт.

9

A45504

SPRING WASHER

- spring

1шт.

10

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

11

A45497

SPRING

- conical

1шт.

12

NSS

NOT SOLD SEPARAT

PAD - spring

1шт.

15

NSS

NOT SOLD SEPARAT

ARM ASSY. - outer

1шт.

16

NSS

NOT SOLD SEPARAT

ARM ASSY. - inner

1шт.

17

A45057

SHAFT

- bearing (Replaces A45506)

2шт.

18

A45496

TUBE

- bearing

4шт.

19

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

2шт.

20

A45512

BLOCK

- slider, 1-3/16" (30.16 MM)

1шт.

21

A45516

BLOCK

- slider, 2-3/16" (55.56 MM)

1шт.

22

A45515

BLOCK

- slider, 1-9/16" (39.69 MM)

1шт.

23

CASA45517

BLOCK

- slider

1шт.

24

A45055

BOLT

- (3/8 x 1-3/4" N.C. round hd. sq. nk.) (Replaces A45569)

2шт.

25

A45110

WASHER

- spacer

2шт.

26

A45498

BUSHING

BEARING - cross pivot

2шт.

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16" (Used with A45056)

2шт.

27

131-6

LOCK NUT,3/8"-16, GC

NUT - jam (3/8" N.C. hex)

2шт.

28

A47070

INDICATOR

- ride height

1шт.
