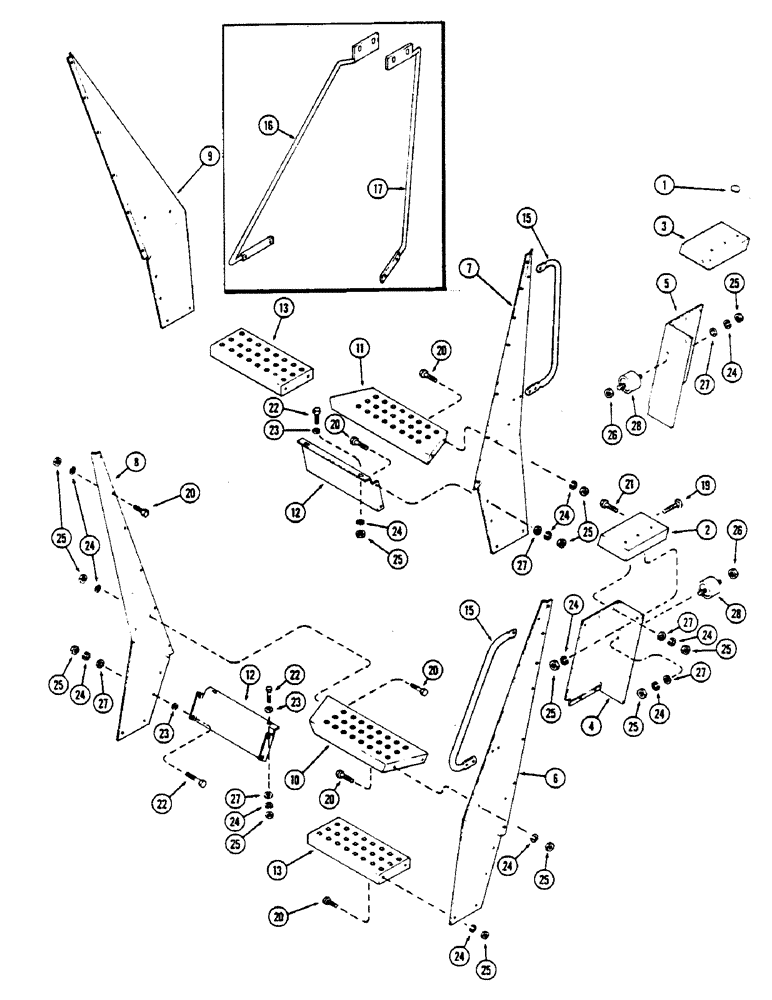

Запчасти Case IH 2670 (422) - STEP, GUARD AND HAND RAIL, USED BEFORE P.I.N. 8825666 (09) - CHASSIS/ATTACHMENTS

1

IO111205-23

PLUG - button

5шт.

2

A75554

CAP - front (R.H.)

1шт.

3

A75555

CAP - (L.H.)

1шт.

4

A75552

GUARD

- front (R.H.)

1шт.

5

A75553

GUARD

- front (L.H.)

1шт.

6

A139486

BRACKET

- step mounting, front (R.H.) (Replaces A75556)

1шт.

7

A139485

BRACKET

- step mounting, front (L.H.) (Replaces A75557)

1шт.

8

A75566

BRACKET - step mounting, rear (R.H.)

1шт.

9

A75567

BRACKET - step mounting, rear (L.H.)

1шт.

10

A75564

STEP - upper (R.H.)

1шт.

11

A75565

STEP - upper (L.H.)

1шт.

12

A75562

STIFFENER - bracket (R.H. AND L.H.)

2шт.

13

A75563

STEP

- lower (R.H. and L.H.)

2шт.

15

A139487

RAIL

- hand (R.H. and L.H.)

2шт.

16

A75558

RAIL - hand (R.H.) (Welded)

1шт.

17

A75559

RAIL - hand (L.H.) (Welded)

1шт.

19

111-340

BOLT,Short NK, 3/8"-16 x 3/4", G2, Full Thd

- 3/8 x 3/4" N.C. round hd. sq. nk., grade 2

2шт.

20

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

21

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

22

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

23

195-104

WASHER,3/8"

- plain () 3/8"

1шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

72шт.

26

131-52

NUT,3/8"-16, GC

NUT - lock (3/8"-16 N.C. ESNA)

2шт.

27

195-525

WASHER,3/8", SAE

- (3/8")

16шт.

28

A75568

BOLT

- mounting, front, Serial Range: guard-cab

2шт.
