Запчасти Case IH 2670 (420) - STEP, GUARD AND HAND RAIL, TRACTOR SERIAL NUMBER 8825666 AND AFTER (09) - CHASSIS/ATTACHMENTS

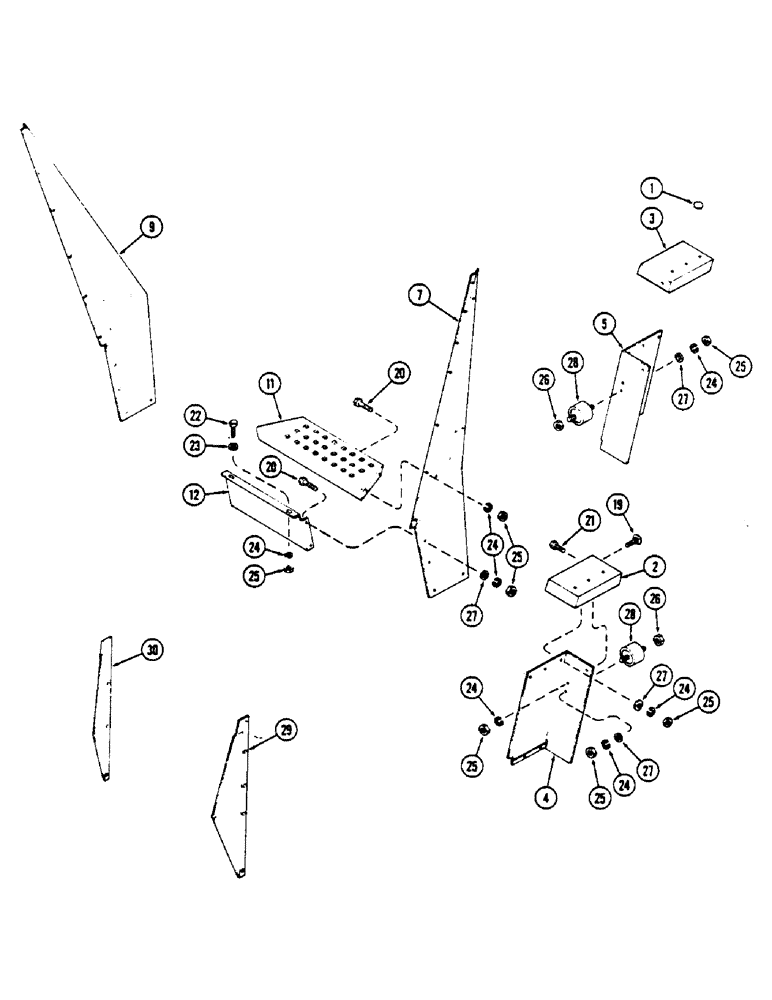

Схема запчастей Case IH 2670 - (420) - STEP, GUARD AND HAND RAIL, TRACTOR SERIAL NUMBER 8825666 AND AFTER (09) - CHASSIS/ATTACHMENTS
27
24
27
23
24
1
29
24
26
9
25
27
2
21
25
5
25
25
22
24
28
30
20
25
24
27
7
11
12
28
20
4
25
24
26
19
3

Артикул

Название

Примечание

Количество

1

205-23

PLUG,17/32"

- button

5шт.

2

A75554

CAP - front, RH

1шт.

3

A75555

CAP - front, LH

1шт.

4

A75552

GUARD

- front, RH

1шт.

5

A75553

GUARD

- front, LH

1шт.

7

A139485

BRACKET

- step mounting, front

1шт.

9

A75567

BRACKET - step mounting, rear

1шт.

11

A75565

STEP - upper

1шт.

19

111-340

BOLT,Short NK, 3/8"-16 x 3/4", G2, Full Thd

- 3/8 x 3/4" NC round head, square neck, grade 2

2шт.

20

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

45шт.

22

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

6шт.

23

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64"

3шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Nut 3/8"

96шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

72шт.

26

131-52

NUT,3/8"-16, GC

NUT - 3/8" NC lock, ESNA

2шт.

27

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16"

16шт.

28

A75568

BOLT

- mounting, front, Serial Range: guard-cab

2шт.

29

A140559

GUARD

- RH front mud

1шт.

30

A140560

GUARD

- RH rear mud

1шт.

Выбрано товаров: 19
