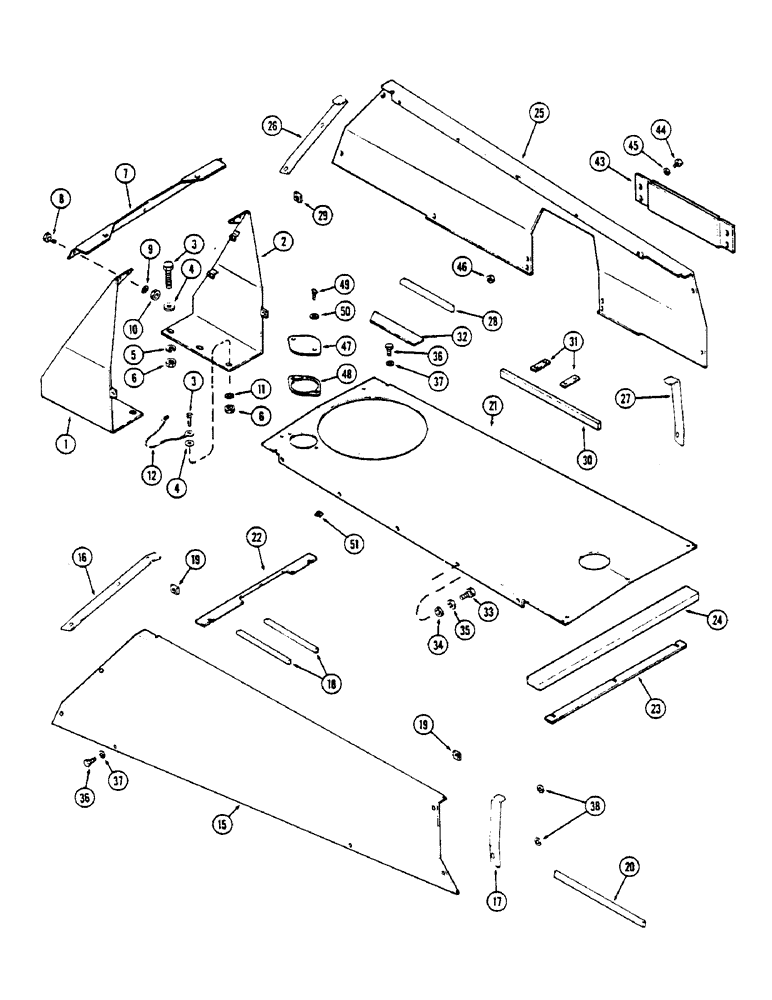

Запчасти Case IH 2670 (408) - HOODS, SIDES AND TOP (09) - CHASSIS/ATTACHMENTS

1

A138410

SUPPORT - R.H. hood

1шт.

2

A138411

SUPPORT - L.H. hood

1шт.

3

113-2400

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Support to side plate Hex, 1/2"-13 x 1 3/8", G5, Full Thd

4шт.

4

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 1/8"

4шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

7

A75781

TIE - rear hood support

1шт.

8

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Tie to support Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

11

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, (Ground strap bracket bolt, LH side) Ext-Int Tooth, 1/2"

1шт.

12

A64704

STRAP

- ground (See Figure 424)

1шт.

15

A76824

HOOD ASSY. - side, R.H., Includes: Ref. 16 - 20

1шт.

16

A76145

PAD

- side hood, rear

1шт.

To be attached with 345-22 adhesive.

1шт.

17

A76144

PAD

- side hood, front

1шт.

To be attached with 345-22 adhesive.

1шт.

18

A76146

PAD

- side hood

2шт.

To be attached with 345-22 adhesive.

1шт.

19

A76068

PAD

- side hood

2шт.

To be attached with 345-22 adhesive.

1шт.

20

A76448

SEAL

- side hood

1шт.

To be attached with 345-22 adhesive.

1шт.

21

A138414

GUARD

HOOD ASSY. - top, Includes: Ref. 22 - 24

1шт.

22

A76150

PAD

- hood top, rear

1шт.

To be attached with 345-22 adhesive.

1шт.

23

A76822

PAD

- hood top, front

1шт.

To be attached with 345-22 adhesive.

1шт.

24

A76820

SEAL

- hood top

1шт.

To be attached with 345-22 adhesive.

1шт.

25

A76825

GUARD

HOOD ASSY. - side, L.H., Includes: Ref. 26 - 32

1шт.

26

A76145

PAD

- hood side, rear

1шт.

To be attached with 345-22 adhesive.

1шт.

27

A76144

PAD

- hood side, front

1шт.

To be attached with 345-22 adhesive.

1шт.

28

A76146

PAD

- hood side

1шт.

To be attached with 345-22 adhesive.

1шт.

29

A76068

PAD

- hood side

1шт.

30

A76830

SEAL

- hood side

1шт.

To be attached with 345-22 adhesive.

1шт.

31

A76831

PAD

- hood side

2шт.

To be attached with 345-22 adhesive.

1шт.

32

A76832

PAD

- hood side

1шт.

To be attached with 345-22 adhesive.

1шт.

33

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Hood, side to top Hex, 3/8"-16 x 7/8", G5, Full Thd

10шт.

34

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64"

10шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

36

113-288

BOLT - 3/8 x 7/8" N.C. hex, grade 5, hood, front and rear

16шт.

37

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 5/64"

16шт.

38

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 5/64", hood side radiator support tabs

1шт.

43

A138474

COVER

- hood, access, L.H.

1шт.

44

113-299

BOLT - 3/8 x 5/8" N.C. hex with nylon insert, grade 5

4шт.

45

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 5/64" (2 used rear bolts and UAR with front bolts)

4шт.

46

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Used with 2 rear bolts) 3/8"-16, G5

2шт.

47

A76842

CAP

- hood top

1шт.

48

A76843

PAD

- hood top cap

1шт.

49

A137887

NUT

STUD - wing head (Replaces A61044)

2шт.

50

A61045

RETAINER

WASHER - stud retainer

2шт.

51

A63849

CLIP

RECEPTACLE - clip-on

2шт.
