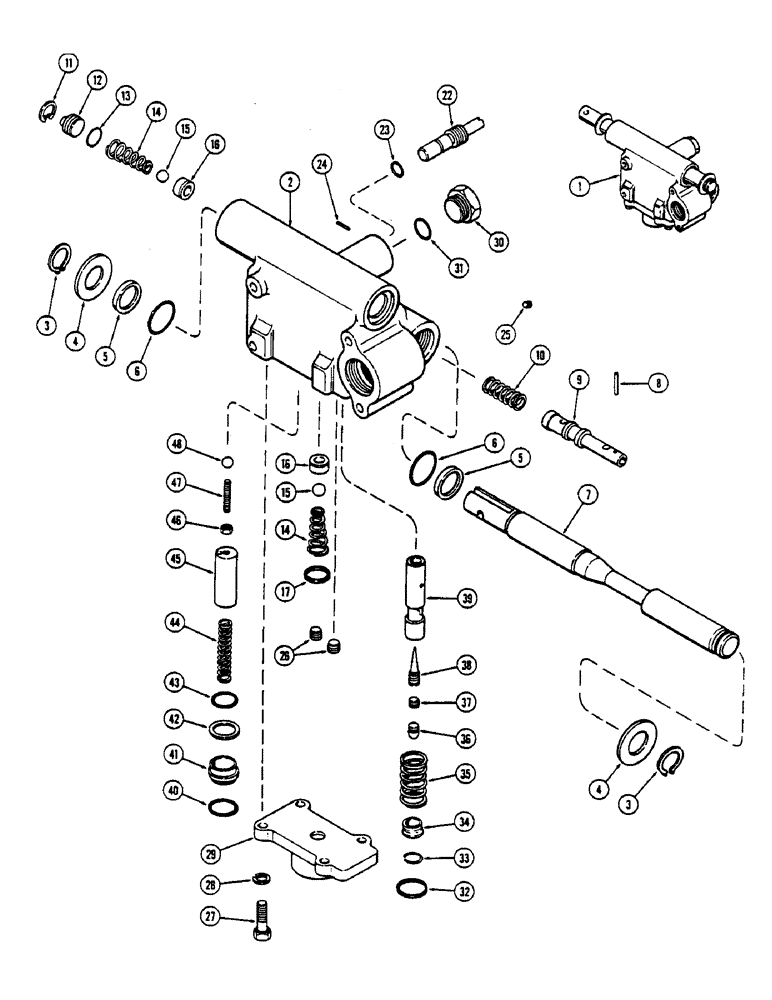

Запчасти Case IH 2670 (402) - DEPTH CONTROL VALVE ASSEMBLY (08) - HYDRAULICS

1

L10043

VALVE

ASSY. - depth control, Includes: Ref. 2 - 48

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - control valve, (Order L10043)

1шт.

3

A35094

SNAP RING,#81, Ext

Ring, Snap, , spool #81, Ext

2шт.

4

A35093

WASHER

- spool

2шт.

5

A56340

OIL SEAL

- oil, valve spool

2шт.

6

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

- valve spool, 7/8 x 1-1/8 x 1/8" (22.22 x 28.5 x 3.17 MM)

2шт.

7

A56338

SPOOL

- control valve

1шт.

8

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

9

A56339

PISTON

- valve control

1шт.

10

A35700

SPRING

- control valve piston, 1-25/64" free length (35.32 MM)

1шт.

11

A35694

SNAP RING,0.688", Int, #68

Ring, Snap, , plug 0.688", Int, #68

1шт.

12

A35693

PLUG

- valve check

1шт.

13

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

- check plug, 1/2 I.D. x 11/16 O.D. x 3/32" (12.7 x 17.46 x 2.38 MM)

1шт.

14

A35099

SPRING

- valve check, 1-1/4" free length (31.75 MM)

2шт.

15

211-12

BALL,7/16 Dia

- check, 7/16" dia. (11.11 MM)

2шт.

16

L10120

SEAT

- load check

2шт.

17

A35547

RING

- seal, check port

1шт.

22

A32363

SPOOL

- throttle, valve

1шт.

23

A40109

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

- throttle spool, 3/8 x 1/2 x 1/16" (9.52 x 12.7 x 1.58 MM)

1шт.

24

138-39

LOCK PIN,3/32" x 5/8", Slotted

PIN, 3/32" x 5/8", Slotted

1шт.

25

221-1850

PLUG,Hex Soc, 1/16"-27

- pipe, 1/16" hex sckt. hd.

1шт.

26

221-1850

PLUG,Hex Soc, 1/16"-27

- pipe, 3/8" hex sckt. hd.

2шт.

27

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

Cover Hex, 5/16"-18 x 1 1/8", G5

4шт.

28

92-5

LOCK WASHER,5/16"

4шт.

29

A56337

COVER

- valve

1шт.

30

86512512

PLUG,7/8" - 14 ORB

- Incl. Ref. 31 Hex Hd, 7/8"-14 ORB

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug, 5/8" x 3/4" x 3/32" (15.87 x 19.05 x 2.38 MM)

1шт.

32

A35548

RING

- seal, trigger valve

1шт.

33

A35690

RING

- snap, trigger valve

1шт.

34

A35689

RETAINER

- snap ring

1шт.

35

A35691

SPRING

- trigger valve, 1-5/8" free length (41.27 MM)

1шт.

36

A35097

PLUG

- poppet

1шт.

37

A35785

SET SCREW,5/16" - 18 x 1/4"

- set, needle valve

1шт.

38

A35784

VALVE

- needle

1шт.

39

A32982

PISTON

- trigger valve

1шт.

40

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- poppet, 7/8 x 1-1/16 x 3/32" (22.22 x 26.98 x 2.38 MM)

1шт.

41

A35696

SLEEVE

- poppet

1шт.

42

A35698

BACK-UP RING

RING - sleeve back-up

1шт.

43

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- piston, 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 MM)

1шт.

44

A35103

SPRING

- poppet, 2-3/16" free length (55.56 MM)

1шт.

45

A35695

PISTON

POPPET - lowering

1шт.

46

A35102

NUT

- lock, #10-32 hex

1шт.

47

A35101

SET SCREW,Hex Skt, #10 - 32 x 1 1/4", Gr 5

- set, poppet

1шт.

48

211-13

BALL,1/2" Dia

- poppet (12.7 mm) 1/2" Dia

1шт.
