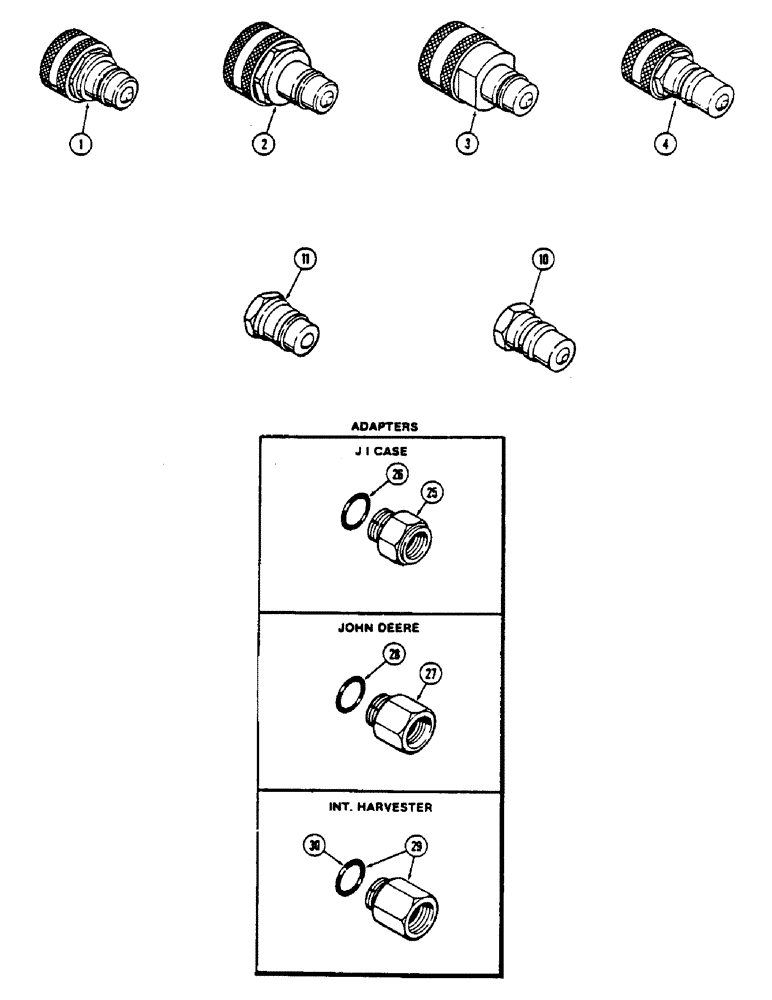

Запчасти Case IH 2670 (398) - QUICK DISCONNECT ADAPTERS (08) - HYDRAULICS

1

A160879

COUPLING, BREAK AWAY

ADAPTER - hydraulic coupling, male half of John Deere coupler female half of Case coupler, A147888

1шт.

2

A160880

COUPLING, BREAK AWAY

ADAPTER - hydraulic coupling, male half of IHC coupler to female half of Case coupler, A147888

1шт.

3

A160885

QUICK MALE COUPLING

ADAPTER - hydraulic coupling, male half of Case coupler A28451 to female half of Case coupler, A147888

1шт.

4

A160888

COUPLING

ADAPTER - hydraulic coupling, Case male tip, A147889, and Case coupling A28542

1шт.

10

A160884

COUPLING, BREAK AWAY

COUPLING - male tip (1/2"-14 NPTF with valve end), quick disconnect

1шт.

11

A160937

COUPLING, BREAK AWAY

COUPLING - male tip (1/2"-14 NPTF with ball end), quick disconnect

1шт.

25

A135687

ADAPTER

ASSY. - hyd. coupling (7/8"-14 male to 7/8"-18 female) (To convert J.I. Case implement hoses), hose, Includes: Ref. 26

1шт.

Adapter to be used with A66816 male half break-away coupling assy.

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 MM), hydraulic hose adapters

1шт.

27

A135688

ADAPTER

ASSY. - hyd. coupling (7/8"-14 male to 3/4"-16 female) (To convert John Deere Impl. Hoses), hose, Includes: Ref. 28

1шт.

Adapter to be used with A66816 male half break-away coupling assy.

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 MM), hydraulic hose adapters

1шт.

29

218-5095

ADAPTER,7/8" - 14 ORB x 1/2" NPT

ASSY. - hyd. coupling (7/8"-14 male to 1/2" female) (To convert Int. Harvester implement hoses), hose, Includes: Ref. 30

1шт.

Adapter to be used with A66816 male half break-away coupling assy.

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 MM), hydraulic hose adapters

1шт.
