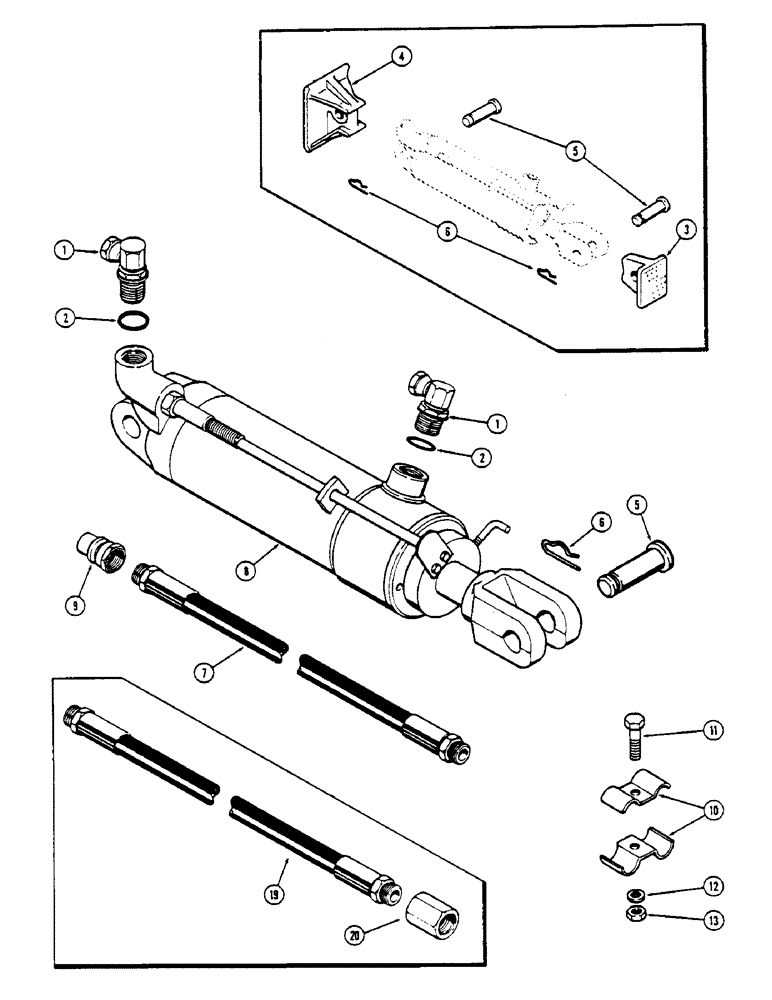

Запчасти Case IH 2670 (396) - HYDRAULIC CYLINDER ATTACHING PARTS (08) - HYDRAULICS

1

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSY. - 90 degree adapter, Includes: Ref. 2

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 MM)

1шт.

3

A9163

PAD - hydraulic cylinder

1шт.

4

A57188

BASE

- hydraulic cylinder

1шт.

5

A27347

PIN

- cyl. yoke, lower

2шт.

6

A29054

HAIR PIN COTTER

- internal hair

2шт.

7

A135109

HYDRAULIC HOSE,1/2" ID x 31" L, SAE 100R1

0.50" ID x , SAE 100R1 31.00"

1шт.

7

A135006

HYDRAULIC HOSE,0.50" ID x 106.00", SAE 100R1 per SAE 100 R1

) 0.50" ID x 106.00", SAE 100R1 per SAE 100 R1

1шт.

7

A135007

HYDRAULIC HOSE,0.50" ID x 118.00", SAE 100R1 per SAE 100 R1

(Use with A135109 hose to extend reach to 150") (See Ref. 19) 0.50" ID x 118.00", SAE 100R1 per SAE 100 R1

1шт.

8

G33769

CYLINDER

ASSY. - portable hydraulic (See Figure 400)

1шт.

9

A147889

COUPLING, BREAK AWAY

COUPLING ASSY. - break-away, male half (Replaces A66816)

1шт.

10

A27440

CLAMP

- hose

2шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

12

92-5

LOCK WASHER,5/16"

1шт.

13

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.

19

A135109

HYDRAULIC HOSE,1/2" ID x 31" L, SAE 100R1

0.50" ID x , SAE 100R1 - Extensionn 31.00"

2шт.

20

A135110

ADAPTER

- 1/2" N.P.T.F. female to 7/8"-14 female, hydraulic hose extension

2шт.
