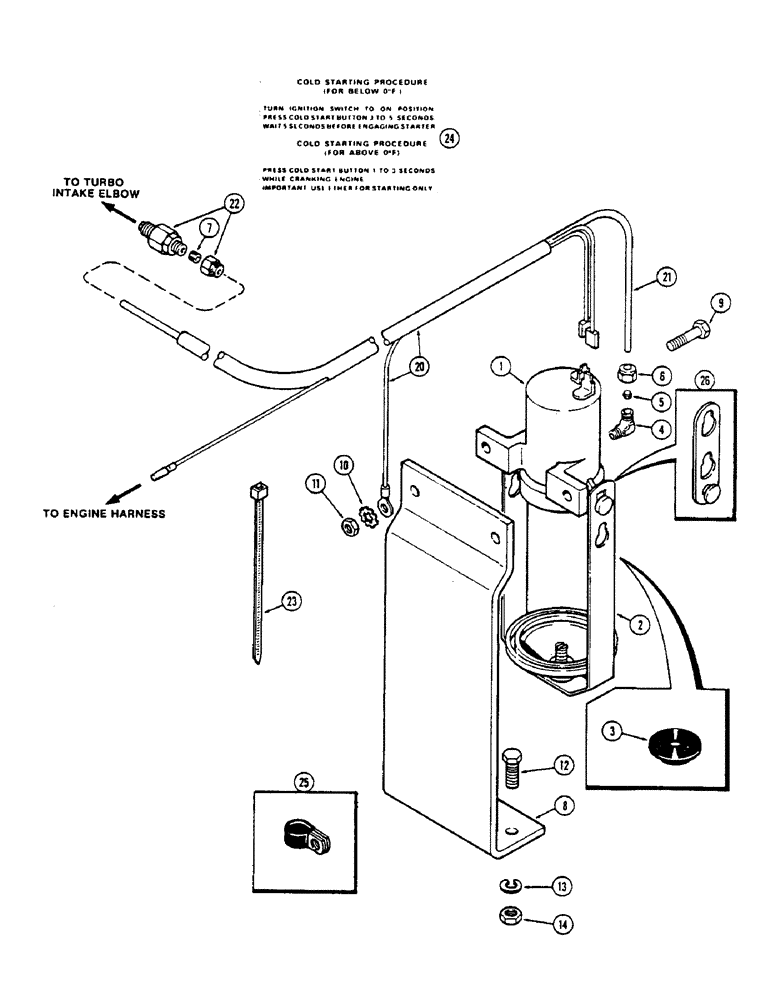

Запчасти Case IH 2670 (020) - ETHER COLD START, FIELD INSTALLED (02) - ENGINE

A145618

KIT

- ether start (Replaces A77123), Includes: Ref. 1 - 26

1шт.

1

A143381

SOLENOID

ASSY. - ether injection with fitting, Includes: Ref. 2 - 6

1шт.

2

A45687

CLAMP

BAIL - ether can

1шт.

3

R30786

GASKET

- can

1шт.

4

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Assy - Check valve, Incl. Ref 5 & 6 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

Elbow to hose (15.88 mm) 1/8" Tube, Comp

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- elbow to hose for 1/8" tube (15.88 mm) 5/16"-24, 45º Fl, Comp

1шт.

7

222-650

SLEEVE,1/8" Tube, Comp

Hose to injector nozzle 1/8" Tube, Comp

1шт.

8

A75896

SUPPORT - ether injector solenoid

1шт.

9

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

10

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock (1/4" int./ext. teeth Shakeproof)

2шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- 5/16 x 1" N.C. hex, grade 5

2шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

20

A145856

HARNESS

- wire, ether start, (Replaces A76345)

1шт.

21

A138483

TUBE

- nylon, Serial Range: solenoid-injector

1шт.

22

A145070

NOZZLE INJECTION

INJECTOR - nozzle with 1/8" tube fitting (Replaces A62775)

1шт.

23

A160890

STRAP

- wire harness (Nylon) (Replaces L11541)

1шт.

24

321-2946

DECAL

- ether operation (Instrument panel)

1шт.

25

49852

PTO SHAFT

CLIP - ether start wire harness

1шт.

26

R30812

LINK

- bail extension

2шт.
