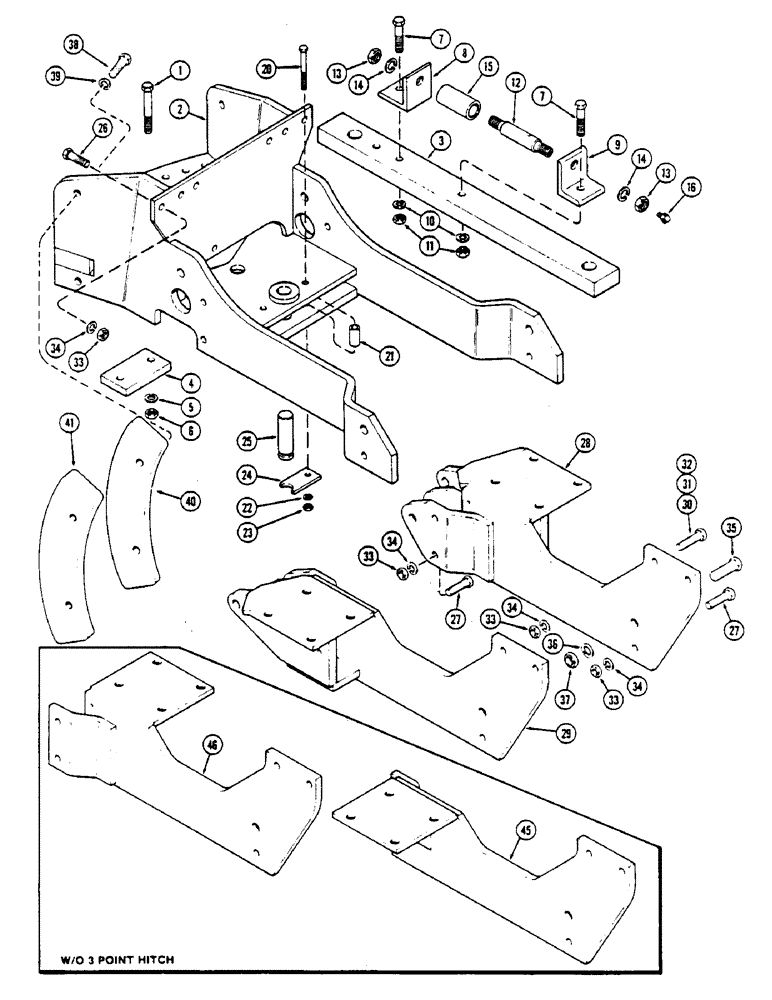

Запчасти Case IH 2670 (390) - DRAWBAR AND SUPPORTS, WITH AND WITHOUT P.T.O. (08) - HYDRAULICS

1

113-725

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- 3/4 x 5-1/2" N.C. hex, grade 5

2шт.

2

A77171

SUPPORT

- drawbar

1шт.

3

A75457

DRAWBAR, SWINGING

DRAWBAR - straight (38.7 X 1.75 X 3.50)

1шт.

4

T38563

PLATE

- fixed drawbar

1шт.

5

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

6

129-108

NUT,3/4"-10, G5

2шт.

7

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

8

A75458

BRACKET

ANGLE - roller mounting, rear

1шт.

9

T38568

BRACKET

ANGLE - roller mounting, front

1шт.

10

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

11

129-108

NUT,3/4"-10, G5

2шт.

12

T38572

PIN

- roller, drawbar

1шт.

13

129-110

NUT,1"-8, G5

2шт.

14

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

15

A145831

BUSHING

ROLLER - drawbar (Replaces R14896)

1шт.

16

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

20

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

21

A75459

BUSHING

SPACER - drawbar

2шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

24

T38570

LOCK

- strap

1шт.

25

T38569

PIN,38.1mm OD x 127mm L

- drawbar

1шт.

26

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Support to trunnion (4 used with P.T.O. and 6 used without P.T.O.) Hex, 3/4"-10 x 2 1/4", G5

1шт.

27

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4 x 2-1/2" N.C. hex, grade 5, support to brace

6шт.

28

A75425

BRACE

- drawbar (L.H.)

1шт.

29

A75424

BRACE

- drawbar (R.H.)

1шт.

30

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- 3/4 x 2-3/4" N.C. hex, grade 5, brace to trunnion (Used without P.T.O.)

4шт.

31

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- 3/4 x 2-3/4" N.C. hex, grade 5, brace to trunnion (Used with P.T.O.)

2шт.

32

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Brace to trunnion (Used with P.T.O.) Hex, 3/4"-10 x 3", G5

2шт.

33

129-108

NUT,3/4"-10, G5

1шт.

34

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

35

113-917

BOLT,Hex, 1" - 8 x 2-3/4", Gr 5, Full Thd

Brace to drawbar Hex, 1"-8 x 2 3/4", G5, Full Thd

2шт.

36

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

37

129-110

NUT,1"-8, G5

2шт.

38

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4 x 2-1/2" N.C. hex, grade 5

4шт.

39

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

40

A75984

BUSHING

SPACER - sway block

2шт.

41

A75394

BLOCK

- sway

2шт.

45

A75470

BRACE

- drawbar (R.H.), used w/o 3- point hitch

1шт.

46

A75471

BRACKET

BRACE - drawbar (L.H.), used w/o 3-point hitch

1шт.
