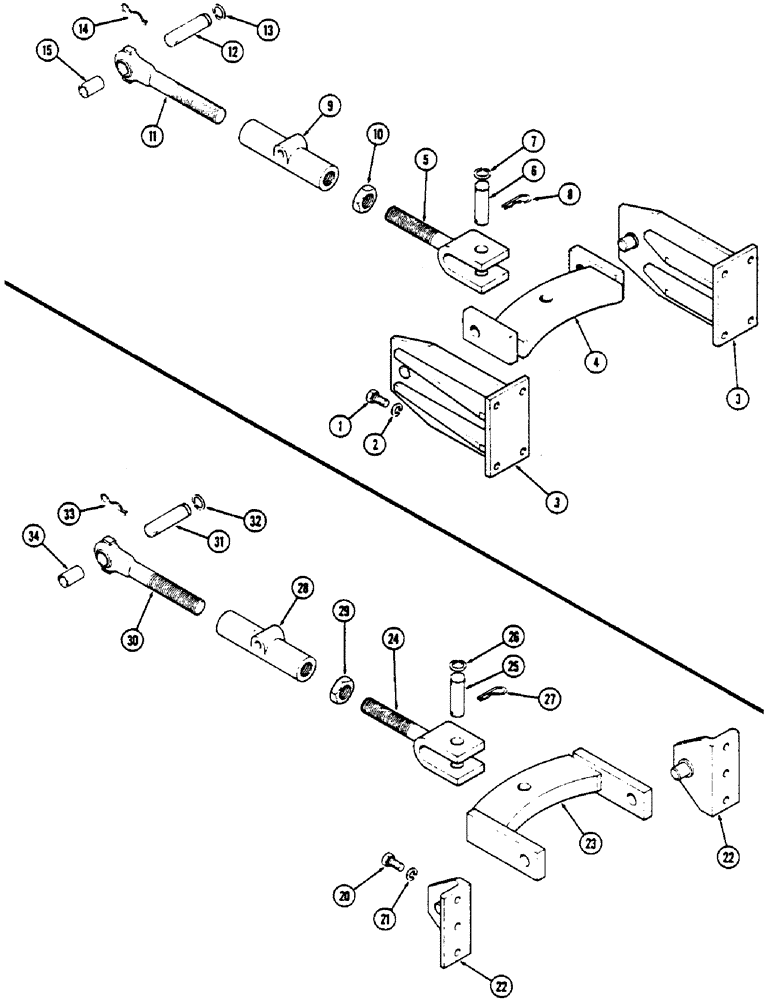

Запчасти Case IH 2670 (388) - THREEPOINT HITCH, THIRD POINT, FIRST USED TRACTOR SERIAL NUMBER 8826961 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
13-1224
BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5
8шт.
2
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
8шт.
3
A143052
BRACKET
MOUNTING - 3rd link pivot
1шт.
4
A141535
ANGLE
- mounting, 3rd link pivot
2шт.
5
A75410
CLEVIS
- 3rd link (RH thread)
1шт.
6
A76283
PIN
- clevis, 3rd link
1шт.
7
17406
RING
- snap
1шт.
8
A56393
PIN
- cotter
1шт.
9
A75964
BELT TENSIONER
TURNBUCKLE - 3rd link
1шт.
10
129-174
JAM NUT,Hex, 1 1/2" - 12, Gr 5
NUT - 1-1/2" NF hex
1шт.
11
A141051
ROD
- 3rd link
1шт.
12
A76285
PIN
- 3rd link
1шт.
13
17406
RING
- snap
1шт.
14
A56393
PIN
- cotter
1шт.
15
L10462
BUSHING
- category #2, hitch pin
1шт.
20
113-709
BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5
Used before tractor S/N 8826961 Hex, 3/4"-10 x 1 1/2", G5
6шт.
21
192-27
LOCK WASHER,3/4"
WASHER, LOCK, , Used before tractor S/N 8826961 3/4"
6шт.
22
A135370
BRACKET
ANGLE - mounting, 3rd link pivot, used before tractor s/n 8826961
2шт.
23
A75403
MOUNTING PARTS
MOUNTING - 3rd link pivot, used before tractor s/n 8826961
1шт.
24
A75410
CLEVIS
- 3rd link (RH thread), used before tractor s/n 8826961
1шт.
25
A76283
PIN
- clevis, 3rd link, used before tractor s/n 8826961
1шт.
26
17406
RING
- snap, used before tractor s/n 8826961
1шт.
27
A56393
PIN
- cotter, used before tractor s/n 8826961
1шт.
28
A75964
BELT TENSIONER
TURNBUCKLE - 3rd link, used before tractor s/n 8826961
1шт.
29
129-174
JAM NUT,Hex, 1 1/2" - 12, Gr 5
NUT - 1-1/2" NF hex, used before tractor s/n 8826961
1шт.
30
A141051
ROD
- 3rd link (Replaces A76321), used before tractor s/n 8826961
1шт.
31
A76285
PIN
- 3rd link, used before tractor s/n 8826961
1шт.
32
17406
RING
- snap, used before tractor s/n 8826961
1шт.
33
A56393
PIN
- cotter, used before tractor s/n 8826961
1шт.
34
L10462
BUSHING
- category #2, hitch pin, used before tractor s/n 8826961
1шт.
Выбрано товаров: 30
