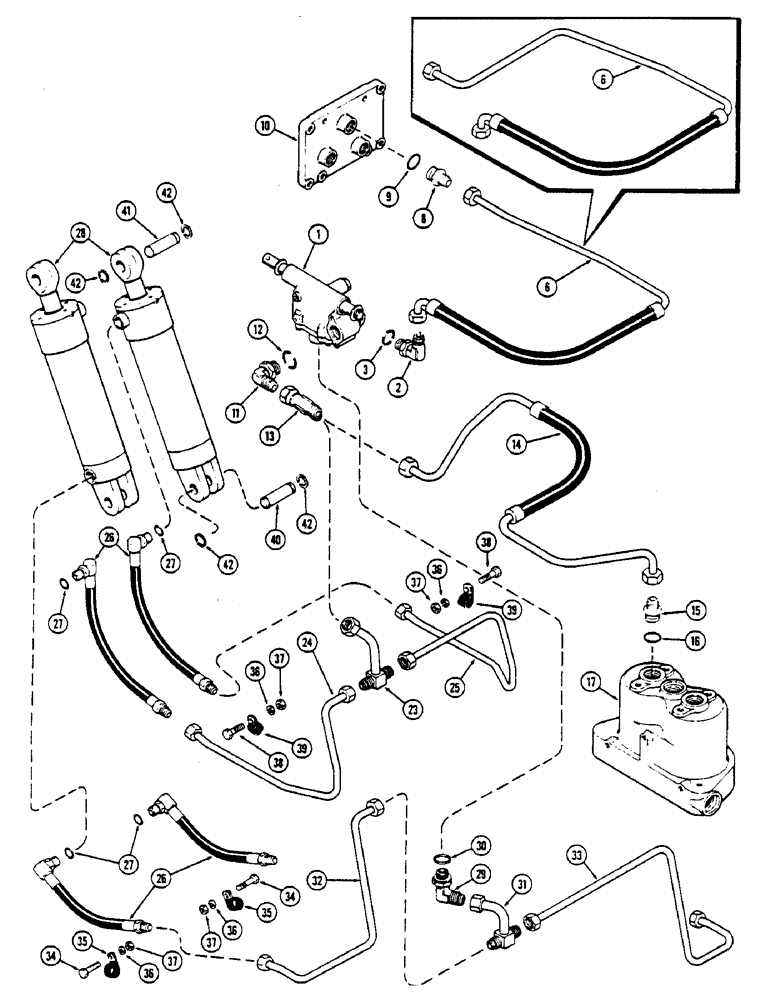

Запчасти Case IH 2670 (382) - HYDRAULIC CIRCUITRY, THREE POINT HITCH, USED BEFORE TRANSMISSION SERIAL NUMBER 10025257 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSY. - depth control (See Figure 402)

1шт.

2

218-5277

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 3/16"-12, O-Ring

ASSY. - 90 degree adjustable, Includes: Ref. 3

1шт.

3

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-9/32 x 1/8" (26.59 x 32.54 x 3.17 MM)

1шт.

6

A139955

HOSE,0.75" ID x 41.00", SAE 100R2

0.75" ID x 41.00", SAE J516 - Single dual remote valve to depth control valve (Replaces A76921 and A76971)

2шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - straight, Incl. Ref. 9

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

10

A76908

MANIFOLD

- remote valve mounting (Order A143889, A145346, A145347 A145407, 113-412 and 113-441)

1шт.

11

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, Assy 90º, 1 1/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- (1-11/64 x 1-13/32 x 1/8") (29.76 x 35.71 x 3.17 MM)

1шт.

13

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

14

A76922

HOSE

- filter to depth control valve

1шт.

15

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - straight, Incl. Ref. 16

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

17

REF

INSTRUCTION

HOUSING - hydraulic filter (See Figure 308)

1шт.

23

A76975

TUBE

- return line

1шт.

24

A76976

TUBE

- return, R.H. cylinder

1шт.

25

A76977

TUBE

- return, L.H. cylinder

1шт.

26

A75438

HOSE

- cylinder

4шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 MM)

4шт.

28

REF

INSTRUCTION

CYLINDER ASSY. - lift arm (See Figure 396)

2шт.

29

218-5109

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male JIC x 1-3/16" - 12 Male ORB

ASSY. - 90 degree adjustable, Includes: Ref. 30

1шт.

30

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-9/32 x 1/8" (26.59 x 32.54 x 3.17 MM)

1шт.

31

A76978

TUBE

- pressure line

1шт.

32

A76979

TUBE

- pressure, R.H. cylinder

1шт.

33

A76980

TUBE

- pressure, L.H. cylinder

1шт.

34

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

35

NLS

NO LONGER SERVICED

- pressure hose

2шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

37

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

38

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

39

49885

CLAMP

- hose

2шт.

40

A76281

PIN

- lower

2шт.

41

A76282

PIN

- upper

2шт.

42

A12667

RING

- retaining, pin

8шт.
