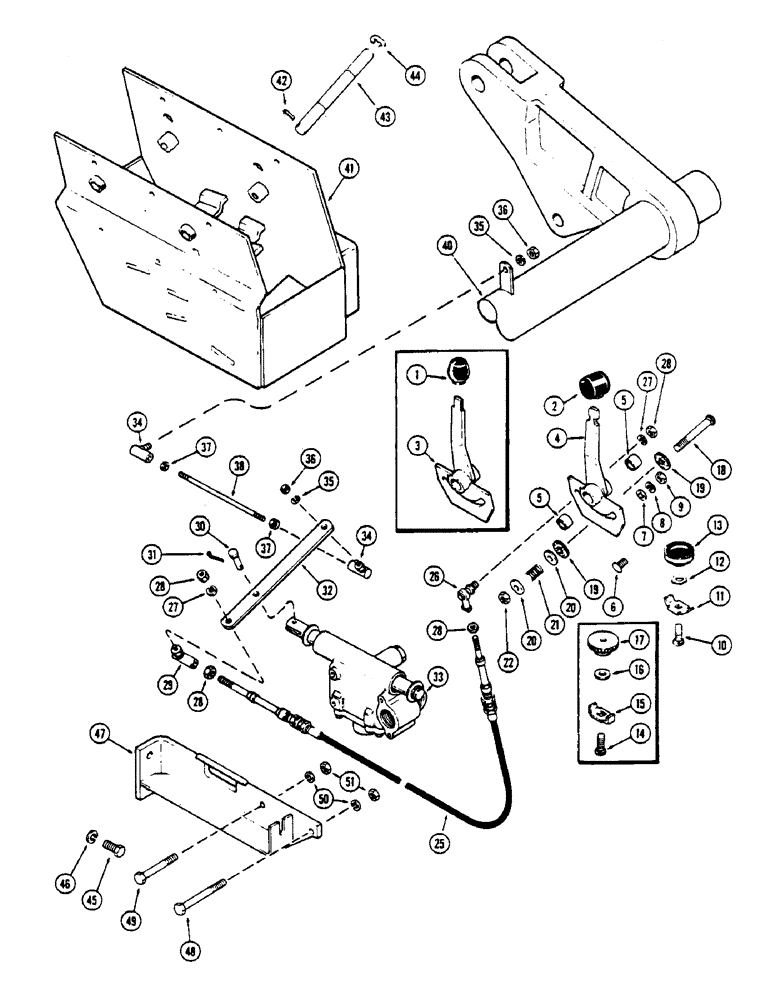

Запчасти Case IH 2670 (378) - THREE POINT HITCH, DEPTH CONTROLS (08) - HYDRAULICS

1

A65699

KNOB

- lever (Plastic) (Order A137806)

1шт.

2

A137806

KNOB

- lever (Rubber)

1шт.

3

A77010

LEVER

ASSY. - depth control (With threaded top) (Order Ref. 2 and 4)

1шт.

4

A137584

HOUSING

LEVER ASSY. - depth control (Replaces A77010)

1шт.

5

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever, Includes: Ref. 5

2шт.

6

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

7

195-525

WASHER,3/8", SAE

- (13/32 x 13/16 x 5/64")

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

11

A143309

CLIP

CLAMP - lever stop (1st used tractor ser. no. 8825242)

2шт.

12

193-110

LOCK WASHER,Ext Tooth, 3/8"

WASHER - Shakeproof, 3/8" ext.

2шт.

13

A143181

NUT

- knurled (Plastic) (1st used tractor ser. no. 8825242)

2шт.

14

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

15

A143309

CLIP

CLAMP - lever, stop (Used before tractor ser. no. 8825242) (Replaces A75453)

2шт.

16

195-104

WASHER,3/8"

- (7/16 x 1 x 5/64")

2шт.

17

A143181

NUT

- knurled (Steel) (Used before tractor ser. no. 8825242) (Replaces G15951)

2шт.

18

111-327

CARRIAGE BOLT,Short NK, 3/8"-16 x 3", G2

BOLT - 3/8 x 3" N.C. round hd. sq. neck, grade 2

1шт.

19

A61069

DISC

- friction

2шт.

20

195-104

WASHER,3/8"

- flat

2шт.

21

A75454

SPRING

- friction disc

1шт.

22

131-94

LOCK NUT,3/8"-16, GB

NUT - lock (3/8"-16)

1шт.

25

A145336

CABLE

- depth control (Replaces A76981)

1шт.

26

A76982

BALL

JOINT -, Serial Range: cable-lever

1шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

28

425-154

JAM NUT,Jam, 1/4"-28, G5

4шт.

29

A10329

BALL JOINT,1/4" - 28 x 1"

- (1/4"-28) cable to valve lever

1шт.

30

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

1шт.

31

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

32

A77008

LEVER

- control valve

1шт.

33

L10043

VALVE

ASSY. - depth control (See Figure 402)

1шт.

34

A60604

BALL JOINT

- (5/16"-24 N.F.)

2шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

36

129-122

NUT,5/16"-24, G5

2шт.

37

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

38

A77009

ROD

- valve control

1шт.

40

A76771

ROCKER

ROCKSHAFT - hitch

1шт.

41

A76749

CONSOLE - operator's

1шт.

42

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

43

A75736

SHAFT

- console lever

1шт.

44

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

1шт.

45

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Support to rear plate Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

46

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

47

A77006

SUPPORT - depth valve

1шт.

48

113-167

BOLT,Hex, 5/16" - 18 x 4", Gr 5

Valve to support Hex, 5/16"-18 x 4", G5

1шт.

49

113-133

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- 5/16 x 3-1/4" N.C. hex, valve to support, grade 5

2шт.

50

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

51

9635082

NUT,5/16" - 18, Gr 5

3шт.
