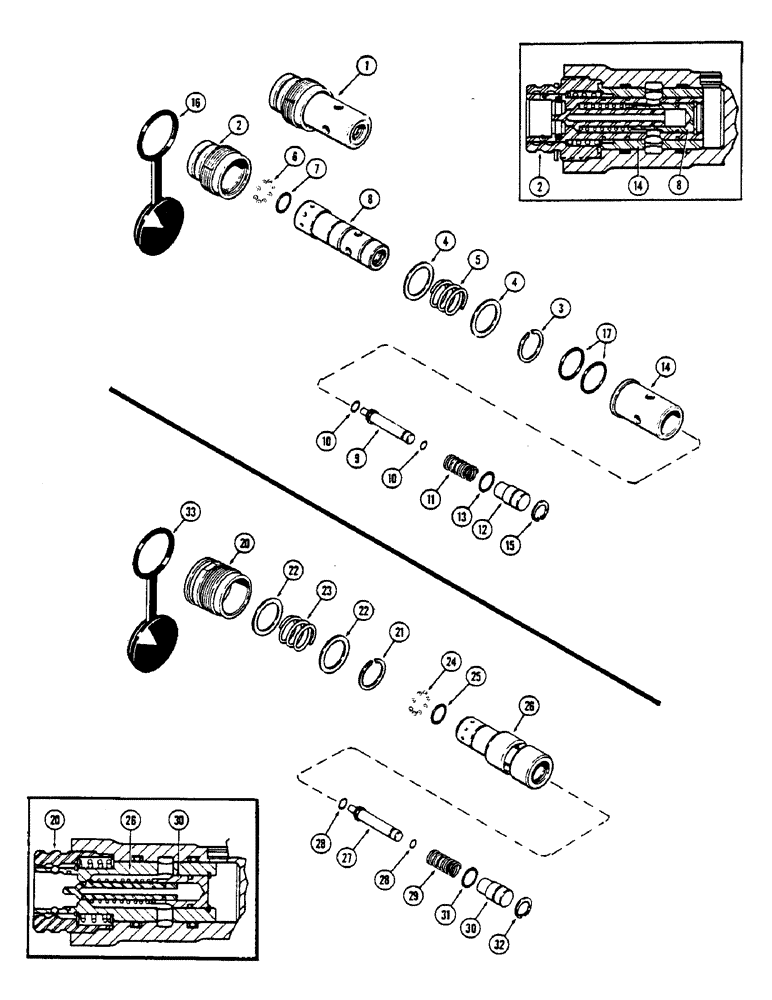

Запчасти Case IH 2670 (376) - REMOTE HYDRAULIC VALVE HOSE COUPLING, USED TRACTOR SERIAL NUMBER 8763920 TO 8827618 (08) - HYDRAULICS

1

A149136

COUPLING, BREAK AWAY

COUPLING ASSY. - break-away, hyd. hose (Replaces A140181), Includes: Ref. 2 - 17

4шт.

The male coupler that plugs into this female coupler is A147889.

1шт.

2

A135280

SLEEVE

- break-away coupling

1шт.

3

A140169

SNAP RING,#106, 1.000", Ext

- external, 1" I.D.

1шт.

4

A140163

WASHER

- spring, 1-3/32 x 1-5/16 x 3/64"

2шт.

5

A141287

SPRING

- body centering, 1-11/16" free length (42.86 MM) (Replaces A135211)

1шт.

6

211-5

BALL,3/16" Dia

- . (4.76 MM) 3/16" Dia

8шт.

7

A140067

O-RING,0.796" ID x 1.074" OD x 0.139"

- body (13/16 x 1-1/16 x 1/8") (20.63 x 26.98 x 3.17 MM)

1шт.

8

A140167

HOUSING

BODY - break-away coupling

1шт.

9

A140164

PISTON

- break-away coupling

1шт.

10

A138385

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- 5/16 x 7/16 x 1/16" (7.93 x 11.11 x 1.58 MM)

2шт.

11

A11324

SPRING

- piston, 1-3/16" free length (30.16 MM)

1шт.

12

A140166

PLUG

- pressure release

1шт.

13

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- 5/8 x 3/4 x 1/16" (15.87 x 19.05 x 1.58 MM)

1шт.

14

A149082

COUPLING, BREAK AWAY

SLEEVE - adapter, coupling (Replaces A140165)

1шт.

15

G46150

SNAP RING,0.75", Int, #75

RING - snap, 53/64" O.D.

1шт.

16

A135213

PLUG

- dust

1шт.

17

A141835

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

- 15/16 x 1-1/16 x 1/16" (23.81 x 26.98 x 1.58 MM) (Replaces A42302)

1шт.

20

A77078

SLEEVE

- break-away coupling, used before tractor s/n 8763920

4шт.

21

A50078

SNAP RING,#118, 1.121", Ext

- external, 1-1/8" I.D., used before tractor s/n 8763920

4шт.

22

A77076

RING

WASHER - spring, 1-7/32 x 1-5/8 x 3/64", used before tractor s/n 8763920

8шт.

23

A77077

SPRING

- body centering, 1-27/64" free length (36.12 MM), used before tractor s/n 8763920

4шт.

24

211-5

BALL,3/16" Dia

- . (4.76 MM), used before tractor s/n 8763920 3/16" Dia

32шт.

25

A55911

O-RING,0.807" ID

- 13/16 x 15/16 x 1/16" (20.63 x 23.81 x 1.58 MM), used before tractor s/n 8763920

4шт.

26

A77074

BODY

- break-away coupling, used before tractor s/n 8763920

4шт.

27

A76899

PLUNGER

PISTON - break-away coupling, used before tractor s/n 8763920

4шт.

28

A138385

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- 5/16 x 7/16 x 1/16" (7.93 x 11.11 x 1.58 MM), used before tractor s/n 8763920

8шт.

29

A11324

SPRING

- piston, 1-3/16" free length (30.16 MM), used before tractor s/n 8763920

4шт.

30

A77075

PLUG

- pressure release, used before tractor s/n 8763920

4шт.

31

F10894

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

- 15/16 x 1-1/8" x 3/32" (23.81 x 28.57 x 2.38 MM), used before tractor s/n 8763920

4шт.

32

A15110

SNAP RING,0.812", Int, #81

Ring, Snap, , used before tractor s/n 8763920 0.812", Int, #81

4шт.

33

A77079

PLUG

- dust, used before tractor s/n 8763920

4шт.

A45340

SEAL

KIT - coupling (Incl. Refs. 25, 28, 31 and Ref. 62 and 63 Figure 364) (Replaces A45234), used before tractor s/n 8763920

1шт.

321-4623

DECAL

remote coupling, used before tractor s/n 8763920

1шт.
