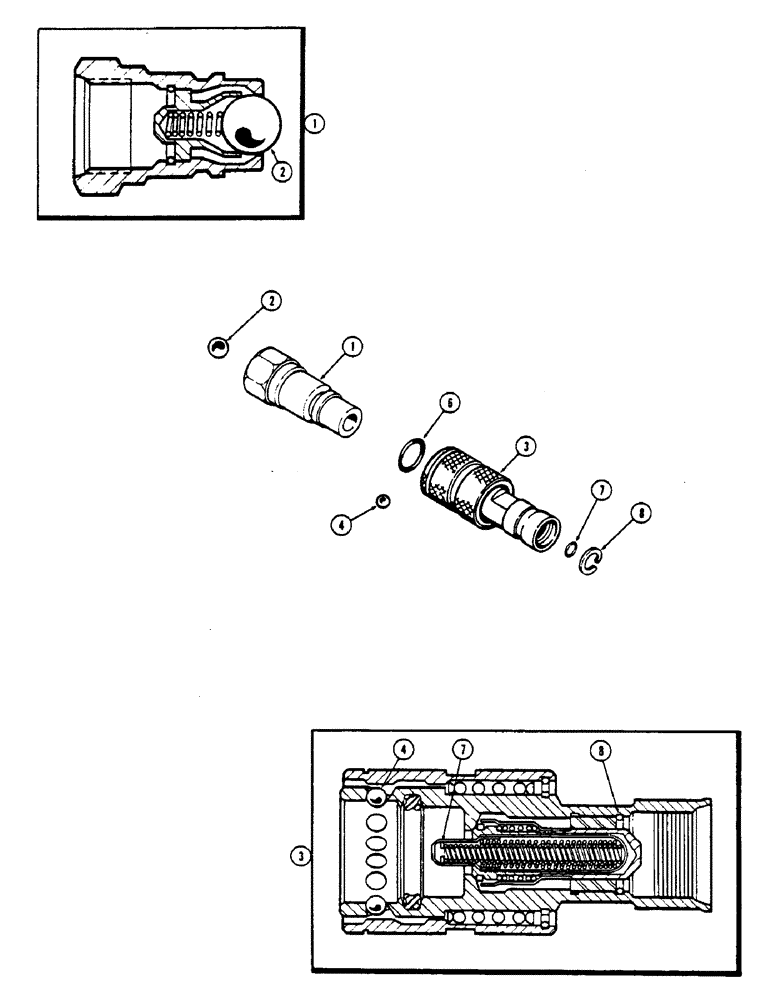

Запчасти Case IH 2670 (374) - HYDRAULIC COUPLINGS, FIRST USED TRACTOR SERIAL NUMBER 8827618 (08) - HYDRAULICS

1

A147889

COUPLING, BREAK AWAY

COUPLING ASSY - male, Includes: Ref. 2

1шт.

2

211-316

BALL,17/32" Dia

- coupling

1шт.

3

A147741

COUPLING, BREAK AWAY

COUPLING ASSY - female (Replaces A147888), Includes: Ref. 4 - 8

1шт.

4

211-355

BALL

- coupling

10шт.

A47220

GASKET KIT

KIT - repair, coupling, Includes: Ref. 6 - 8

1шт.

6

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- body

1шт.

7

A47222

SEAL

- poppet

1шт.

8

NSS

NOT SOLD SEPARAT

RING - lock

1шт.
