(372) - A77073 REMOTE HYDRAULIC VALVE, WITHOUT RELIEF VALVE, USED BEFORE TRACTOR SN 8763920 (CONT)

Запчасти Case IH 2670 (372) - A77073 REMOTE HYDRAULIC VALVE, WITHOUT RELIEF VALVE, USED BEFORE TRACTOR SN 8763920 (CONT) (08) - HYDRAULICS

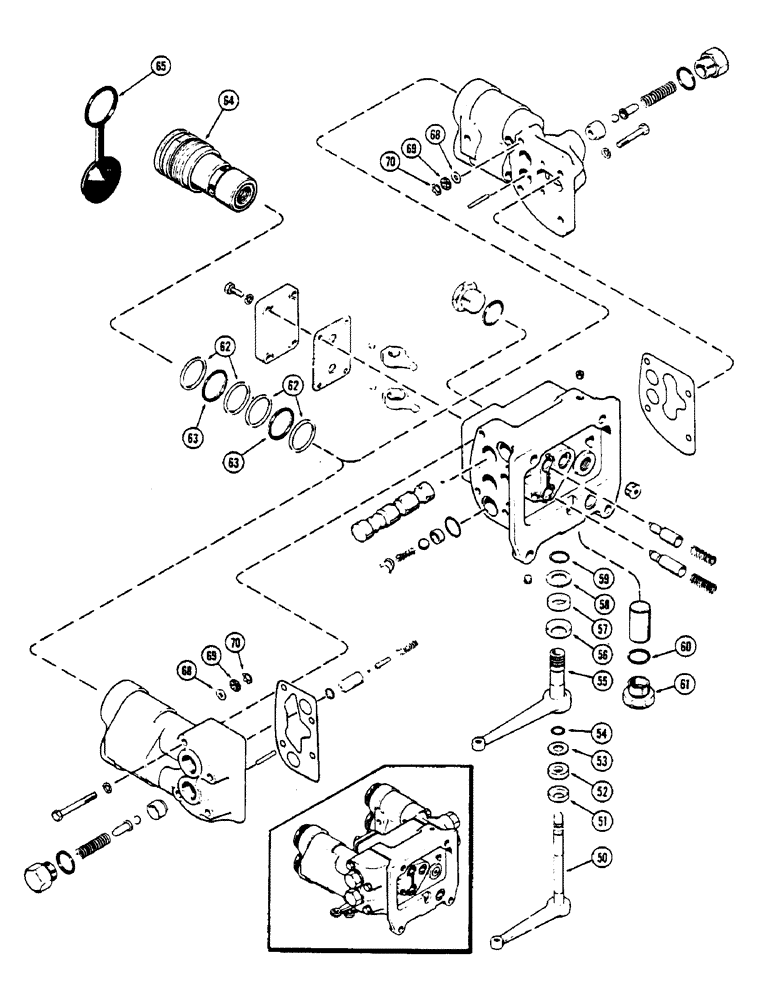

Схема запчастей Case IH 2670 - (372) - A77073 REMOTE HYDRAULIC VALVE, WITHOUT RELIEF VALVE, USED BEFORE TRACTOR SN 8763920 (CONT) (08) - HYDRAULICS
63
64
50
52
56
65
53
51
57
68
58
69
63
55
69
70
62
61
62
60
54
59
68
70
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A77073

VALVE ASSY. - twin (Cont'd from Figure 370), Includes: Ref. 50 - 70 and Ref. 2 - 44 on Figure 370

1шт.

50

A57605

LEVER

- plunger, outer

1шт.

51

A30875

RETAINER

- felt washer (17/32" hole)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

52

A30853

WASHER

- felt, lever shaft (1/2 x 15/16 x 1/4")

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

53

A27409

WASHER

- seal, lever shaft (33/64 x 63/64 x 1/32")

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

54

A64836

O-RING,0.487" ID x 0.693" OD

- lever shaft, 1/2 x 11/16 x 3/32" (12.7 x 17.46 x 2.38 MM)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

55

A57604

LEVER

- plunger, inner

1шт.

56

A30880

RETAINER

- felt washer (49/64" hole)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

57

A30879

WASHER

- felt, shaft (3/4 x 1-13/16 x 1/4")

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

58

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - seal, shaft (49/64 x 1-15/64 x 1/32")

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

59

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- lever shaft, 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 MM)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

60

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug, 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

61

A34392

PLUG

- relief valve opening

1шт.

62

A76898

RING

- back-up, 1-1/2 x 1-3/4 x 3/64" (38.1 x 44.45 x 1.19 MM)

16шт.

63

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1-31/64 x 1-49/64 x 9/64" (37.70 x 44.84 x 3.57 MM)

8шт.

64

REF

INSTRUCTION

COUPLING - hyd. hose break-away (See Figure 376)

4шт.

65

A77079

PLUG

- dust, break-away coupling

4шт.

68

195-516

WASHER,#12

- (1/4 x 9/16 x 1/16")

4шт.

69

A76892

SEAL

- valve head quick coupler

4шт.

70

A76893

SNAP RING,0.625", Int, #62

Ring, Snap, , valve head seal 0.625", Int, #62

4шт.

A43086

SEAL

KIT - valve seal, Includes: Ref. 51 - 54, 56 - 60 and Ref. 8, 13, 14, 16, 25, 31, 38 on Figure 370

1шт.
