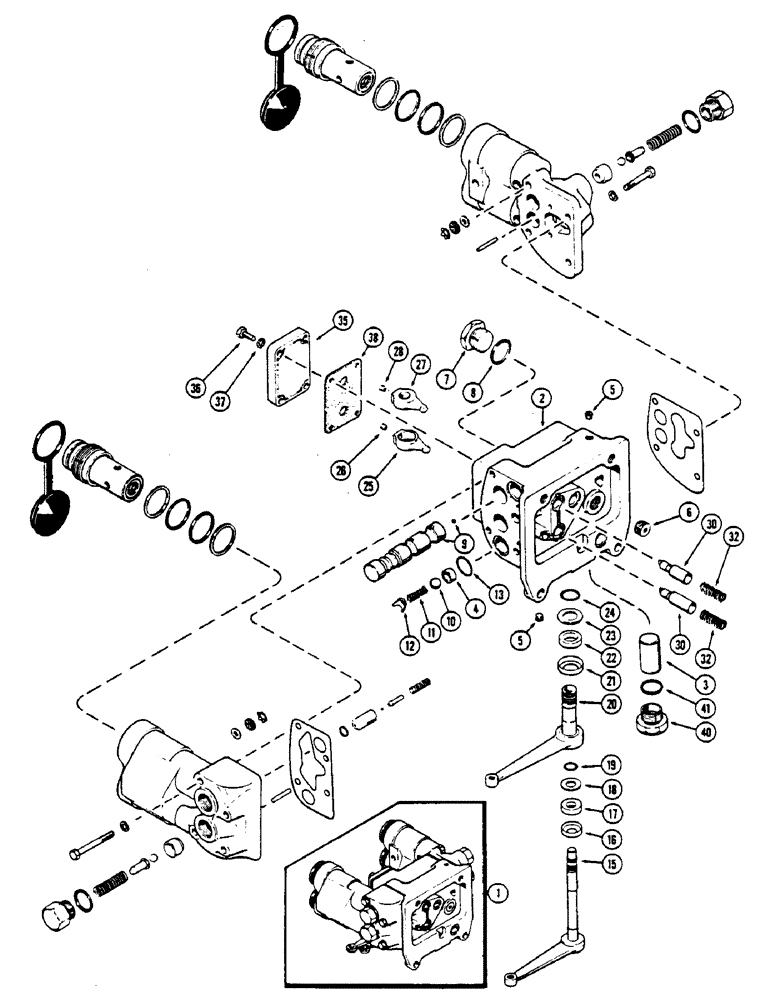

Запчасти Case IH 2670 (366) - A141378 REMOTE HYDRAULIC VALVE, WITHOUT RELIEF VALVE, USED TRACTOR SN 8763920 TO 8786558 (08) - HYDRAULICS

1

A141378

VALVE

ASSY (Replaces A77073, A138884, A139217 and A139957) (Order A149138), Includes: Ref. 2 - 42 and Ref. 45 - 76 on Figure 368

1шт.

2

A141380

HOUSING

BODY ASSY, Remote valve (Replaces A76907), Incl. Ref. 3 - 8

1шт.

3

A63764

PLUG

Relief valve

1шт.

4

A139799

SEAT

Ball check

4шт.

5

221-849

PLUG,Hex Soc, 1/8"-27

Pipe

3шт.

6

221-843

PLUG,Hex Soc, 3/8"-18

Pipe

1шт.

7

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

ASSY, Incl. Ref. 8

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.87 mm) (See kit Figure 368)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

9

A66469

SPOOL

ASSY, Remote valve

2шт.

10

211-15

BALL,5/8" Dia

3/8" dia. (9.53 mm)

4шт.

11

A27452

SPRING

Ball check

4шт.

12

A27364

GUIDE

Ball check spring

4шт.

13

A64434

O-RING,0.93" ID x 1.142" x 0.106"

15/16 x 1-1/8 x 3/32" (23.81 x 28.57 x 2.38 mm) (See kit Figure 368)

4шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

15

A57605

LEVER

Remote valve (Lower)

1шт.

16

A30875

RETAINER

Felt washer (See kit Figure 368)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

17

A30853

WASHER

Felt, lever shaft (See kit Figure 368)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

18

A27409

WASHER

Seal, lever shaft (See kit Figure 368)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

19

A64836

O-RING,0.487" ID x 0.693" OD

Lever shaft (See kit Figure 368)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

20

A57604

LEVER

Remote valve (Upper)

1шт.

21

A30880

RETAINER

Felt washer (See kit Figure 368)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

22

A30879

WASHER

Felt, shaft (See kit Figure 368)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

23

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

Seal, shaft (See kit Figure 368)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

24

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Lever shaft (See kit Figure 368)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

25

A57546

ARM

ASSY, Remote valve upper lever, Incl. Ref. 26

1шт.

26

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

Headless, Cup pt.

1шт.

27

A57547

ARM

ASSY, Remote valve lower lever, Incl. Ref. 28

1шт.

28

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

Headless, Cup pt.

1шт.

30

A63765

PLUNGER

Remote valve spool

2шт.

32

A76886

SPRING

Spool detent

2шт.

35

A66435

CAP

Body

1шт.

36

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Cap to body

4шт.

37

92-4

LOCK WASHER,1/4"

4шт.

38

A76374

GASKET

Body cap (See kit Figure 368)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

40

A34392

PLUG

Pilot relief valve hole

1шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug, 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.87 mm) (See kit Figure 368)

1шт.
