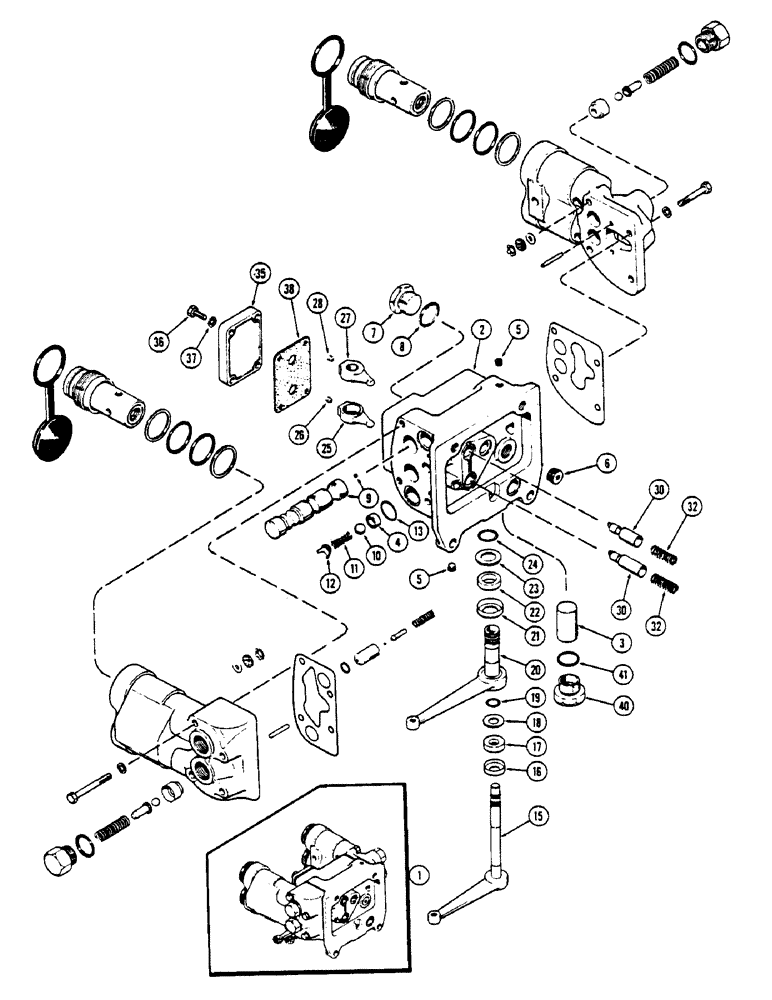

Запчасти Case IH 2670 (362) - A141844 REMOTE HYDRAULIC VALVE, WITHOUT RELIEF VALVE AND WITH COUPLERS (08) - HYDRAULICS

1

A141844

VALVE

ASSY. - control (Order A149138), Includes: Ref. 2 - 41 and Ref. 45 - 76 on Figure 364

1шт.

2

A141380

HOUSING

BODY ASSY. - remote valve, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

PLUG - relief valve

1шт.

4

NSS

NOT SOLD SEPARAT

SEAT - ball check

4шт.

5

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, 1/8" hex. sckt. hd.

3шт.

6

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, 3/8" hex. sckt. hd.

1шт.

7

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Assy, 3/4" tube OD, Includes: Ref. 8 Hex Hd, 1 1/16"-12 ORB

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM) (See kit Figure 364)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

9

A66469

SPOOL

ASSY. - remote valve

2шт.

10

211-15

BALL,5/8" Dia

- . (15.88 MM) 5/8" Dia

4шт.

11

A27452

SPRING

- ball check, 1/2" O.D. x 1-1/8" free length

4шт.

12

A27364

GUIDE

- ball check spring

4шт.

13

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- 15/16 x 1-1/8 x 3/32" (23.81 x 28.57 x 2.38 MM) (See kit Figure 364)

4шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

15

A57605

LEVER

- remote valve, lower

1шт.

16

A30875

RETAINER

- felt washer, 17/32" hole

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

17

A30853

WASHER

- felt, 1/2 x 15/16 x 1/4" (See kit Figure 364)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

18

A27409

WASHER

- seal, 33/64 x 63/64 x 1/32" (See kit Figure 364)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

19

A64836

O-RING,0.487" ID x 0.693" OD

- 1/2 x 11/16 x 3/32" (12.7 x 17.46 x 2.38 MM) (See kit Figure 364)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

20

A57604

LEVER

- remote valve, upper

1шт.

21

A30880

RETAINER

- felt washer, 49/64" hole

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

22

A30879

WASHER

- felt, 3/4 x 1-13/16 x 1/4"

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

23

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - seal, 49/64 x 1-15/64 x 1/32"

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

24

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 28.81 x 2.38 MM)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

25

A57546

ARM

ASSY. - remote valve upper lever, Includes: Ref. 26

1шт.

26

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - 1/4 x 1/4" N.C. hex sckt. headless cup pt. set

1шт.

27

A57547

ARM

ASSY. - remote valve lower lever, Includes: Ref. 28

1шт.

28

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - 1/4 x 1/4" N.C. hex sckt. headless cup pt. set

1шт.

30

A63765

PLUNGER

- remote valve spool

2шт.

32

A76886

SPRING

- spool detent, 15/32" O.D. x 1-15/32" free length (11.91 x 37.31 MM)

2шт.

35

A66435

CAP

- body

1шт.

36

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

38

A76374

GASKET

- body cap (See kit Figure 364)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

40

A34392

PLUG

- pilot relief valve hole

1шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM) (See kit Figure 364)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.
