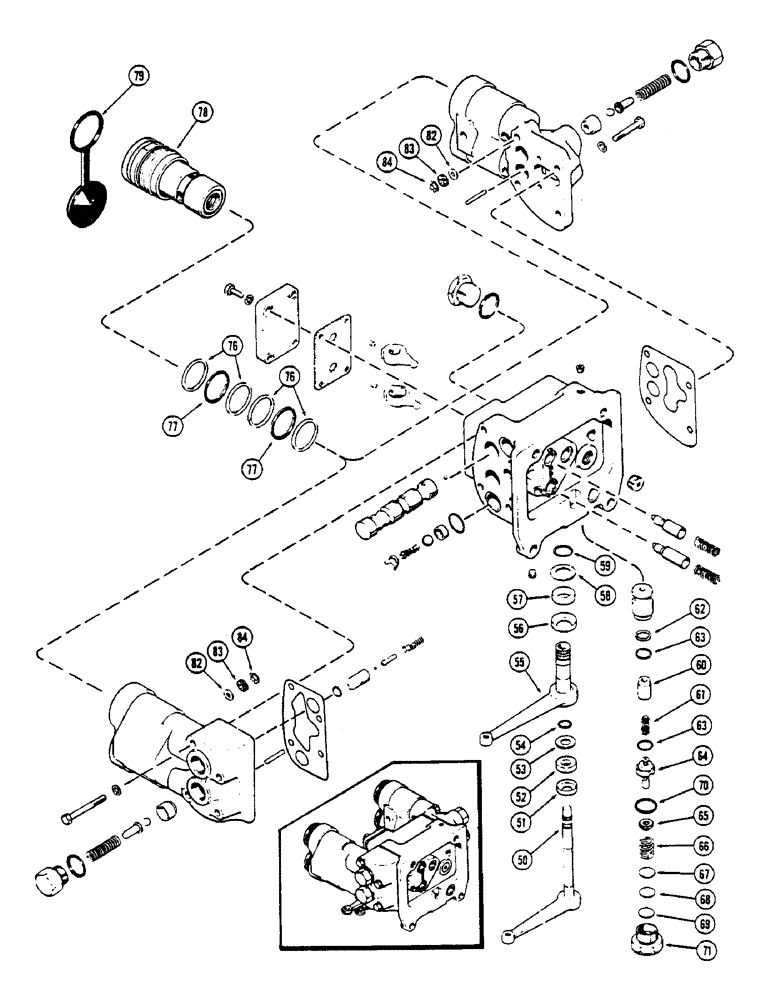

Запчасти Case IH 2670 (356) - A77072 REMOTE HYDRAULIC VALVE, WITH RELIEF VALVE, USED BEFORE TRACTOR SERIAL NUMBER 8763920 (CONT) (08) - HYDRAULICS

A77072

VALVE

ASSY. - single (Cont'd from Figure 354), Includes: Ref. 50 - 84 and Ref. 2 - 45 on Figure 354

1шт.

50

A57605

LEVER

- plunger, outer

1шт.

51

A30875

RETAINER

- felt washer (17/32" hole)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

52

A30853

WASHER

- felt, lever shaft (1/2 x 15/16 x 1/4")

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

53

A27409

WASHER

- seal, lever shaft (63/64 x 64/64 x 1/32")

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

54

A64836

O-RING,0.487" ID x 0.693" OD

- lever shaft, 1/2 x 11/16 x 3/32" (12.7 x 17.46 x 2.38 MM)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

55

A57604

LEVER

- plunger inner

1шт.

56

A30880

RETAINER

- felt washer (49/64" hole)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

57

A30879

WASHER

- felt, short (3/4 x 1-13/16 x 1/4")

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

58

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - seal, shaft (49/64 x 1-15/64 x 1/32")

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

59

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- lever shaft, 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 MM)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

60

A57553

PISTON

- pilot relief valve

1шт.

61

A34382

SPRING

- pilot relief valve, 15/32" O.D. x 1" free length (11.91 x 25.4 MM)

1шт.

62

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- pilot relief valve

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

Included w/ PILOT RELIEF VALVE KIT, A42888

1шт.

63

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- pilot relief valve sleeve, 5/8 x 3/4 x 1/16" (15.88 x 19.05 x 1.59 MM)

2шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

Included w/ PILOT RELIEF VALVE KIT, A42888

1шт.

64

A57556

PISTON

ASSY. - pilot

1шт.

65

A57558

RETAINER

- pilot relief spring

1шт.

66

A34492

SPRING

- pilot relief spring, 49/64" O.D. x 23/32" free length (19.45 x 18.26 MM)

1шт.

67

A34694

SHIM,.0201" Thk

Pilot relief spring (0.51 mm) .0201" Thk

1шт.

Refer to attached tag for shim data.

1шт.

68

A34817

SHIM,.0149" Thk

Pilot relief spring (0.37 mm) (Blue) .0149" Thk

1шт.

Refer to attached tag for shim data.

1шт.

69

A34390

SHIM,.0329" Thk

Pilot relief spring (0.83 mm) .0329" Thk

1шт.

Refer to attached tag for shim data.

1шт.

69

A34391

SHIM,.0149" Thk

Pilot relief spring (0.37 mm) (Order A34817) .0149" Thk

1шт.

Refer to attached tag for shim data.

1шт.

69

A34849

SHIM,.0105" Thk

Pilot relief spring (0.25 mm) .0105" Thk

1шт.

Refer to attached tag for shim data.

1шт.

70

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- pilot relief plug, 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

Included w/ PILOT RELIEF VALVE KIT, A42888

1шт.

71

A34392

PLUG

- pilot relief valve

1шт.

76

A76898

RING

- back-up, 1-1/2 x 1-3/4 x 3/64" (38.1 x 44.45 x 1.19 MM)

16шт.

77

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1-31/64 x 1-49/64 x 9/64" (37.70 x 44.84 x 3.57 MM)

8шт.

78

REF

INSTRUCTION

COUPLING - hyd. hose break-away (See Figure 376)

4шт.

79

A77079

PLUG

- dust, break away coupling

4шт.

82

195-516

WASHER,#12

- (1/4 x 9/16 x 1/16")

4шт.

83

A76892

SEAL

- valve head quick coupler

4шт.

84

A76893

SNAP RING,0.625", Int, #62

Ring, Snap, , valve head seal 0.625", Int, #62

4шт.

A43086

SEAL

KIT - valve seal, Includes: Ref. 51 - 54, 56 - 59, 62, 63, 70 and Ref. 8, 13, 16, 25, 31, 38 on Figure 354

1шт.

A42888

KIT

- pilot relief valve, Includes: Ref. 62, 63 and 70

1шт.
